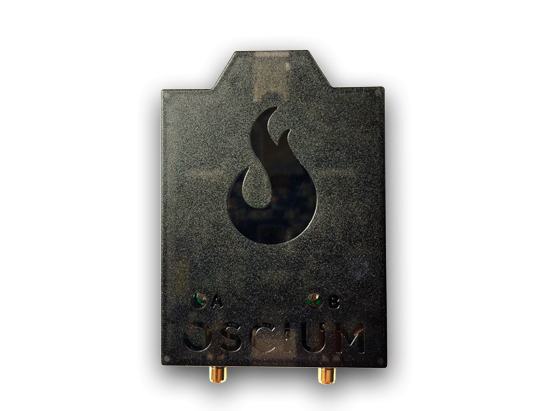

iMSO-204x Portable Oscilloscope

Sold out
$ 499.99

Transform a smartphone or tablet into a mixed signal oscilloscope.

  • 2 Analog + 4 Digital Channels
  • 50 MSPS Sample Rate
  • 5 MHz Bandwidth
  • 200ns/div-10s/div
  • Data Sheet


Universal Platform Support

Oscium’s iMSO-204x is compatible with iOS, Android, PC and Mac. This cross platform solution is perfectly portable as are all Oscium’s tools. And now, it’s possible to use whichever host device you prefer. No need to jailbreak your device. Oscium's iMSO-204x is available in the App Store.



'Hands On' Oscilloscope

So how does this touch interface compare to an oscilloscope with knobs? Joe Wolin, EEWeb Co-Founder, states, “We actually think the experience is better! The touch-interface of the iPad represents a viable alternative to traditional knob-based oscilloscopes. The software on this device is outstanding… ” Want to test drive it yourself? Download the free demo today and see why this is the preferred scope for the next generation of inventors.



Intuitive Software

Pinch to zoom into a waveform the same way you do on a picture. Change the analog trigger position with a simple swipe across the screen. On-the-go engineers save their setup once and this oscilloscope remembers who you are. Oscium's software is intuitive, which means you can spend more time debugging than fumbling with an oscilloscope interface. Focus on solving problems, not your setup.

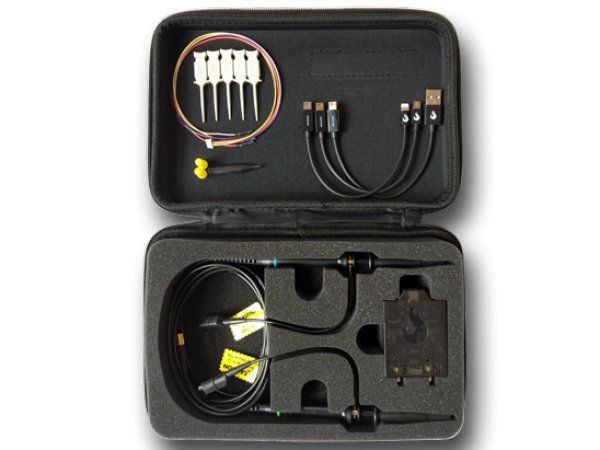

What's Included In The Box?

  • iMSO-204x Mixed Signal Oscilloscope Hardware
  • Two 1x/10x Analog Probes
  •  Screwdriver
  • Four Analog tip covers
  • Logic Harness (4 Digital + 1 Ground)
  • SMD Grabbers (5 pieces)

Getting Started

A data sheet is available here:  Data Sheet

A Quickstart Guide is available here: iMSO-204x.

And the manual is available here: User Manual

  • PC Installer - iMSO-204x. PC compatibility is available. Assuming you install on c:, the drivers are located here:

    For 32-bit OS: C:\Program Files\Oscium\iMSO\driver
    For 64 bit OS: C:\Program Files (x86)\Oscium\iMSO\driver
  • Mac Installer - iMSO-204x. Instructions are included here. Mac compatibility is available.
  • FAQ
