NF-5035 Aaronia EMF Meter and Analyzer

by Aaronia
Original price $ 1,400.00 - Original price $ 1,400.00
Original price
$ 1,400.00
$ 1,400.00 - $ 1,400.00
Current price $ 1,400.00

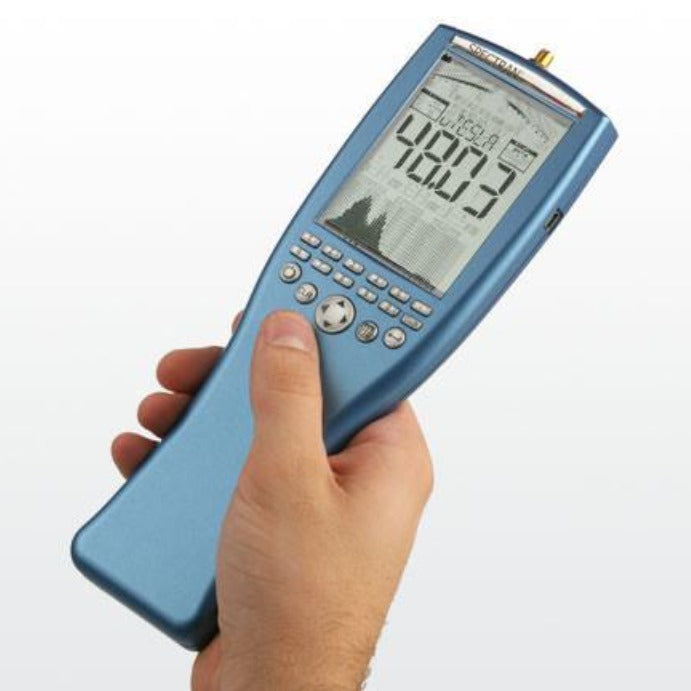

The Aaronia NF5035 Spectran Handheld EMI Spectrum Analyzer 1 Hz-1 MHz measures the frequency range of 1 Hz to 1 MHz and offers EMC/EMI spectrum analysis providing V, V/M, Gauss and Tesla. The handheld unit is controlled via button-press interface, pre-programmed hotkeys, multi-function jog dial, or remote controlled via USB / PC software. The unit includes an internal 1300 mAh battery offering 2 hours of autonomous run time. The NF 3035 EMF analyzer offers both an internal Helmholtz 3-axis sensor and internal E-field antenna or via the external input, conveniently housed in a lightweight and durable unit. Perfect for pre-compliance testing, leakage testing, magnetic and E-field field measurements, R and D, exposure limits, and general spectrum analysis, the NF 5035 EMF analyzer offers precision measurement, lightening fast Real-Time EMC Spectrum Analysis, and a user-friendly interface. Each handheld EMF analyzer kit includes the full-featured spectrum analyzer software, allowing precision measurements and data collection for both field work and benchtop or desktop laboratory testing.

The NF 5035 handheld EMF analyzer offers the unique ability to perform complex test and measurement in the field without lugging around bulky, expensive, outdated equipment. That does not mean that the NF 5000 series is only valuable for field applications, however. Used in conjunction with the included PC software, these portable and rugged handheld units easily transform into a full-featured bench top spectrum analyzer, complete with remote PC-based control, and extended data logging and playback. The NF 5035 offers a USB interface with real-time remote control to a PC or MAC. The free analyzer software, which is available for MAC OS, Linux and Windows, transforms any Spectran into a powerful measurement solution with great features (e.g. recording, multiple window display, histogram, waterfall diagram, unlimited number of markers, and enhanced limits display etc). The PC software is capable of controlling multiple units, making it extremely easy to switch between several analyzers to perform extensive testing in multiple locations and multiple pre-determined frequency ranges. Each handheld unit also includes internal memory for field-based data logging, and playback and analysis in the PC software interface after taking field measurement.

NF-5035 EMF Meter and Analyzer Features:

  • Frequency range: 1 Hz - 1 MHz
  • Measurement range up to DIN/VDE 0848
  • 65 MSPS
  • Typ. level range E-Field: 0.1V/m to 5000V/m (typ. at 50 Hz)
  • Typ. level range H-Field: 1pT to 500µT (typ. at 50 Hz)
  • Typ. level range Analog in: 200nV to 200mV / -150dBm (Hz)
  • Typ. accuracy: 3%
  • External SMA signal input
  • Real-time FFT/DFT spectrum display
  • Dimensions (L/W/D): 260x86x23 mm
  • Weight: 420gr
  • Resolution (RBW): 0.3 Hz to 10 MHz (1-3-10 step)
  • Detectors: RMS, Min/Max
  • Units: V, V/m, T, G, A/m
  • Demodulator: AM, FM
  • Simultaneous M-Display X, Y, Z axes
  • 3D magnetic field measurement
  • True RMS signal strength measurement
  • Average (AVG) measurement
  • Frequency and signal strength display
  • High resolution multifunction display
  • DIN/VDE 0848 exposure limit calculation
  • Superfast FFT spectrum analysis
  • High-performance DSP (Digital Signal Processor)
  • 3D magnetic field measurement
  • Frequency and signal strength display
  • High-resolution multi-function display
  • Internal data logger
  • Internet Flash Software-Updates
  • USB 2.0 Interface
  • Spectrum Analyzer Software MCS for Windows, Linux, and MAC OS
  • Remote control function of several units which can be controlled simultaneously from the same PC
  • Multiple views at the same time: Spectrum, Waterfall, Histogram, Limits, Chanelpower, Providerdisplay, Time Domain, Results
  • Powerful Undo-Feature
  • Customer-specific skins and color-settings
  • Record and Replay function
  • Advanced Trigger and alarm functions
  • Unlimited number of markers

* The item is ordered by demand, so expect a 2-3 week lead time from time of purchase.
