WOREMOR Silitex P130X

*Note: To purchase a custom length of fabric, please add multiple quantities of the item to your cart. Each quantity counts a 1 linear foot in length. The amount ordered will be cut as a single piece unless specified otherwise.

WOREMOR Silitex P130X is a silicone-coated conductive fabric for HF+LF shielding.

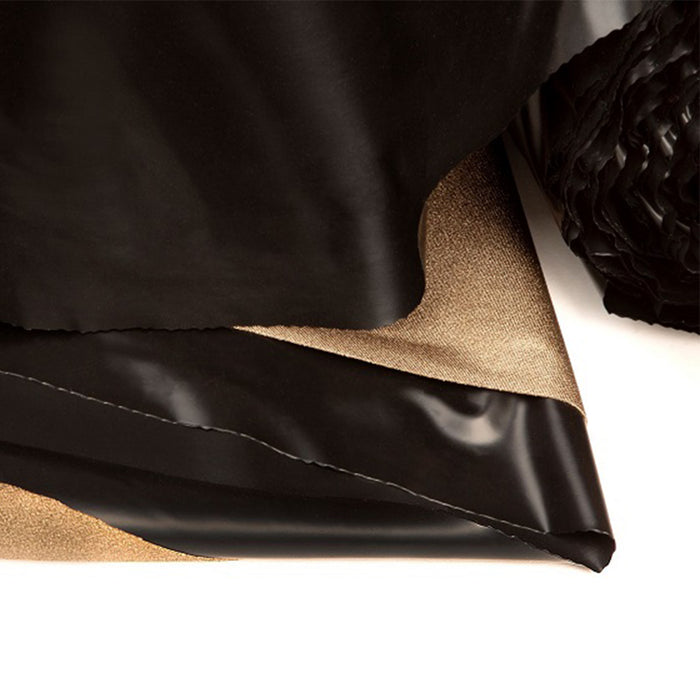

Description: Silver plated knitted fabric,  one side coated black conductive silicone

Raw material: 78% Polyamide + 22% Elastomer
Coating: Conductive silicone
Stretch: Bi-elastic
elongation warp based on Din Norm 13934-1 100%
elongation weft based on Din Norm 13934-1 150%

Surface Resistivity (silver plated side): < 10 Ω/□
Surface Resistivity (silcone): < 10 Ω/□
Temperature Range: -30 ̊ C to 90 ̊ C
Weight: 380g/m2 ± 10%
Total Thickness: 0,65mm ± 10%
Roll Width: 121cm +3/-6



Compliance and Certification
Reach
Biological Safety
