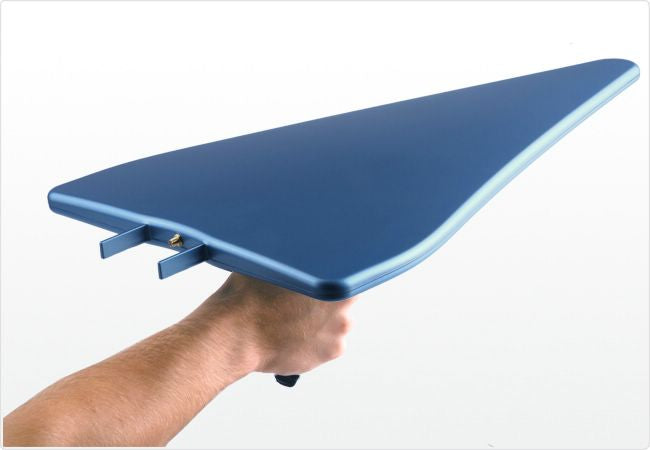

HyperLOG 4025 - LogPer broadband EMC EMI antenna spans 400MHz to 2,5GHz

by Aaronia
Original price $ 600.00 - Original price $ 600.00
Original price
$ 600.00
$ 600.00 - $ 600.00
Current price $ 600.00

Powerful log periodic antenna with a wide frequency range from 400MHz to 2.5GHz including ISM434.

Every HyperLOG antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality GOLD COATING, a high-tech antenna-case (radome) which offers protection against mechanical damange and environmental influence, a top-quality integrated tripod connection and a SMA connector (18GHz version) with twist protection.

 Made in Germany:

All Aaronia antennas are developed, individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standard so that Aaronia can offer every customer a full 10 years warranty for all EMC antennas.

Exhaustive Calibration data:

All Aaronia antennas include a complete high resolution (10MHz steps!) calibration data set with up to 533 calibration points (on CD). This offers the ability to make a very accurate EMC measurement with any Spectrum Analyzer.

Included in delivery:

Each HyperLOG antenna will be shipped with many accessories in a high-value aluminium carrying case.

Technical data

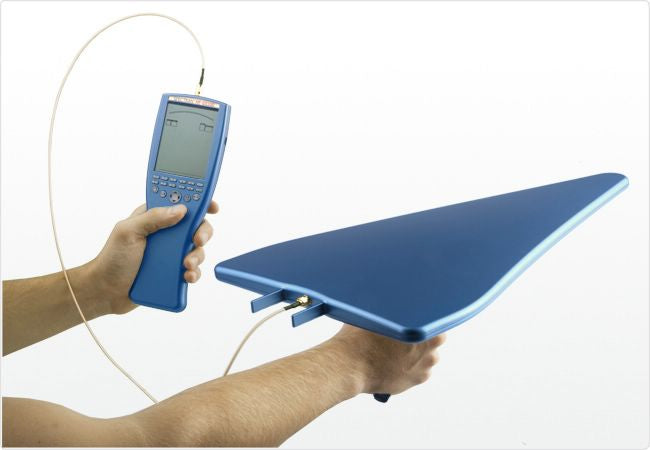

Compatible with any Spectrum Analyzer brand
Design: Directional Logarithmic-Periodic
Frequency range: 400MHz to 2,5GHz
Max. input power: 100W AM (400MHz)
Nominal impedance: 50 Ohm
VSWR: <1:2 (typ.)
Gain: 4dBi (typ.)
Antenna factor: See data sheet graph
RF connection: SMA (f) or N (see optional adapter)

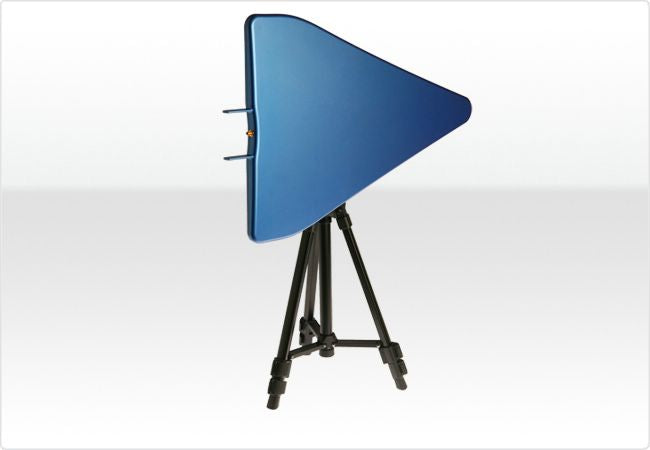

Tripod connection: 1/4"
Calibration points: 211 (10MHz-steps)
Dimensions (L/W/D):
(590x360x30) mm
Weight: 1200gr
Warranty: 10 years

Includes exhaustive calibration data (on CD)

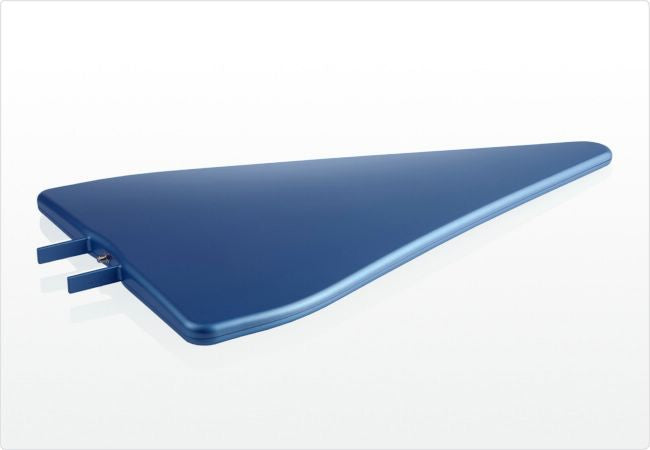

Special designed radome for perfect antenna protection
Gold coating for stable performance
Wide bandwidth
Coverage of various mobile radio frequency ranges
Suitable for field-strength and EMC measurements due to high precision
Compact and sturdy design
Can be used in the lab and for open-field application
