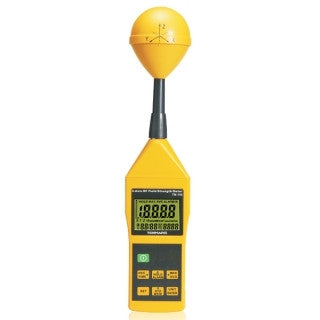

TM-196 3 - Axis RF Field Strength Meter
Original price
$ 259.99
-
Original price
$ 259.99
Original price
$ 259.99
$ 259.99
-
$ 259.99
Current price
$ 259.99
This meter is designed for measuring and monitoring Radio–Frequency electromagnetic field strength. The meter is calibrated precisely over the frequency range of 10MHz~8GHZ.
It's ideal for the applications of:
RF power measurement for transmitters.
High frequency(RF)electromagnetic wave field strength measurement.
Mobile phone base station antenna radiation power density measurement.
Spy camera, wireless bug finder.
Wireless communication (CW, TDMA, GSM, DECT) applications.
Wireless LAN (Wi-Fi) detection, installation.
Cellular /Cordless phone radiation safety level.
Microwave oven leakage detection.
Personal living environment EMF safety.
Features
Measurement range: 38mV to 11V/m
Frequency range: 10MHz~8GHZ.
Sensor: Triple Axis (X, Y, Z).
Manual data memory (Max & AVG) records.
Calibration factor, Alarm and Clock settings.
RF power measurement for transmitters.
High frequency(RF)electromagnetic wave field strength measurement.
Mobile phone base station antenna radiation power density measurement.
Spy camera, wireless bug finder.
Wireless communication (CW, TDMA, GSM, DECT) applications.
Wireless LAN (Wi-Fi) detection, installation.
Cellular /Cordless phone radiation safety level.
Microwave oven leakage detection.
Personal living environment EMF safety.
Features
Measurement range: 38mV to 11V/m
Frequency range: 10MHz~8GHZ.
Sensor: Triple Axis (X, Y, Z).
Manual data memory (Max & AVG) records.
Calibration factor, Alarm and Clock settings.
Specifications
|
Measurement range
|
50mV/m to 11V/m
|
|
Display
|
4½ digits maximum reading 19999
|
|
Frequency range
|
10MHz~8GHz
(accuracy :±1dB at 2.45GHz)
|
|
Measurement units
|
mV/m, V/m, µA/m, mA/m,
µW/m², mW/m²,µW/cm²
|
|
Display resolution
|
0.1mV/m, 0.01V/m,
0.1µA/m, 0.001mA/m, 0.001µW/m², 0.01mW/m²,
0.001µW/cm² |
|
Manual data memory
|
200 data sets
|
|
Alarm function
|
Adjustable threshold with ON/OFF
|
|
Memory recall
|
Adjustable
|
|
Calibration factor CAL
|
The CAL setting range is from 0.10~5
|
|
Sampling time
|
3 times per second
|
|
Operating temperature
and humidity
|
0°C~50°C (32°F~122°F),
25% ~75% RH
|
|
Power supply
|
9V battery
(NEDA 1604 IEC 6F22 JIS 006P) |
|
Battery life
|
Approx. 3hours
|
|
Dimension
|
370x80x80mm (LxWxH)
|
|
Weight
|
Approx.400g (including battery)
|
