Grounding Accessories
Grounding Accessories for EMF Painted Walls, Fabric, Meshes, Pipes, Blankets:
Many shielding products should be grounded or must be grounded! Our professional grounding accessories can serve as a base for these grounding measures.
Please note, grounding must be done by a licensed electrician.
Please do not hesitate to contact us for further advice.
Suggested Grounding Accessories for Different Grounding Applications:
- Walls painted with EMF Paint such as the 5G EMF paint RF-IE50- this type of application should use the following grounding
- Grounding Strap GSX - this copper strap is conductive on the top side, therefore it must be applied prior to painting.
- Grounding plate GS
- 200cm Grounding Cable WM-GL200 or longer.
- Baseboards painted with EMF Paint such as the WOREMOR paint RF-IE50 - this type of application should use the GBP and one of the WM-GL cables. For example WM-GL100.

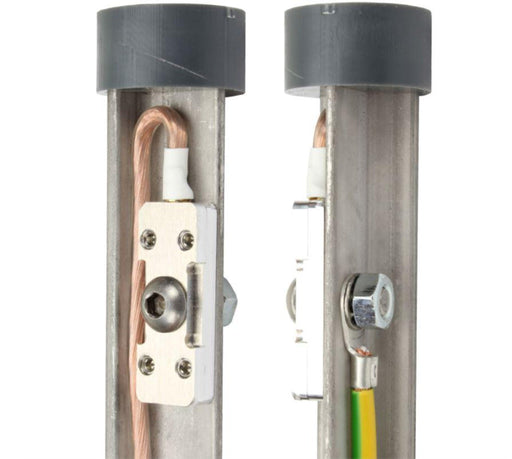

- External Paint application such as the external wall of a building painted with EMF Paint such as the 5G EMF paint RF-IE50 - this type of application should use the WM-GF to ground the paint. Instead of a grounding strap, you should use the AF3 Fiber Additive. To connect between the grounding elements use the Grounding cables WM-GL. In some cases when clean earth needed, a licensed electrician might decide to use grounding road as the new ground for the paint. For example the WM-GR grounding roads.
- EMF Curtains, canopies made, blankets from conductive fabric such as Silver Tulle - this type of application should use the WM-GCM magnet plate. Another option is to use WM-GCS plate, however, in order to install it, you need to do a small opening for the screw on the grounding plates.
- Fabric that is applied for pre-construction applications. For example applying the FL-100 fabric inside the walls between the frame and drywall or under the floor (hardwood, laminate, tiles) floor - this type of application should use the WM-GCS with one of the WM-GL cables.
-
$ 69.99WOREMOR Interior Grounding Kit for EMF Shielding Paint
An all in one Grounding kit for interior shielding paint. Applicable for up to 2 walls depending on dimensions. The kit comes with the following: ...
View full details$ 69.99 -
$ 69.99WOREMOR Earthing & Grounding Kit for Fabric - with Magnet
An all in one kit for grounding fabrics to protect against low frequency alternating electrical fields. Contents: 1x GCM Grounding Magnet 1x GPB ...
View full details$ 69.99 -
$ 69.99WOREMOR Earthing & Grounding Kit for Fabric - with Screws
An all in one kit for grounding fabrics to protect against low frequency alternating electrical fields. Contents: 1x GCS Grounding Screw 1x GPB G...
View full details$ 69.99 -
Save 18%
Original price $ 34.00Current price $ 27.99AF3 Fiber Additive for EMF Paint
Product Description Special additive for mixing with our shielding paints. All our shielding paints are formulated without crack-bridging carbon fi...
View full detailsOriginal price $ 34.00Current price $ 27.99Save 18% -
from $ 11.99Grounding Cable WM-GL
Grounding cable to connect our grounding components with each other. With crimped cable lugs and shrink hose on both sides. Scope of delivery: Cab...
View full detailsfrom $ 11.99 -
Save 21%
Original price $ 29.00Current price $ 23.00WOREMOR Grounding Strap GSX10
Self-adhesive grounding strap with conductive glue to bridge cracks in the underground for a long-term grounding. The GSX10 can due to the electr...
View full detailsOriginal price $ 29.00Current price $ 23.00Save 21% -
Save 21%
Original price $ 139.00Current price $ 110.00WOREMOR Grounding Strap GSX50
Self-adhesive grounding strap with conductive glue to bridge cracks in the underground for a long-term grounding. The GSX50 can due to the electr...
View full detailsOriginal price $ 139.00Current price $ 110.00Save 21% -
Sold out
Original price $ 44.99Current price $ 35.99WOREMOR Grounding Plate Exterior WM-GE
Grounding plate for shielding paints outdoors. The cover is glued waterproof to the ground. Two GE plates are required for each contiguous area. 1 ...
View full detailsOriginal price $ 44.99Current price $ 35.99Sold out -
$ 19.99Grounding Plate GS1 | 20x80 mm
Small and flat grounding plate 20x80 mm for installation directly on top of shielding products and grounding straps. For the skirting board area. I...
View full details$ 19.99 -
$ 19.99Grounding Plate GS2 | 40x80 mm
Medium-sized grounding plate 40x80 mm for installation directly on top of shielding products and grounding straps. Next to a wall socket. Installat...
View full details$ 19.99 -
$ 29.99Grounding Plate GS3 | 80x80 mm
Standard grounding plate 80x80 mm for installation directly on top of shielding products and grounding straps. Next to a wall socket. Installation ...
View full details$ 29.99 -
$ 24.99Grounding Housing GF2 | 40x80 mm
Medium-sized surface/flash mounting housing 40x80 mm, for the installation directly on shielding products or for clamping the grounding straps. Wit...
View full details$ 24.99 -
$ 29.99Grounding Housing GF3 | 80x80 mm
Standard-sized surface/flash mounting housing 80x80 mm, for the installation directly on shielding products or for clamping the grounding straps. W...
View full details$ 29.99 -
$ 39.99Grounding Housing GF4 | 120x120 mm
Large-sized surface/flash mounting housing 120x120 mm, for the installation directly on shielding products or for clamping the grounding straps. Du...
View full details$ 39.99 -
$ 27.00Grounding Plate Hook-and-Loop GV
Grounding plate with a silvered hook-and-loop fastener “hook”. All our groundable sewed products (canopied, floor mats, blanket, sleeping bag, bedd...
View full details$ 27.00 -
$ 27.00Grounding Plate Baseboard WM-GB
Application: Grounding Color: White, Silver Grounding plate for shielding paints, nettings, fleeces, etc. for interior use. Slim design for mo...
View full details$ 27.00 -
$ 13.50Grounding Plate Tube GT
Application: Grounding Color: White, Silver Grounding plate for earthed installations (e.g. heating tubes). Stable construction compared with ...
View full details$ 13.50 -
Sold out
$ 27.00Grounding Plate Magnet GCM
Grounding connection with two plates that hold together with the help of strong magnets. For all electrically conductive fabrics, fleeces, mesh...
View full details$ 27.00Sold out -
$ 27.00Grounding Plate Screw GCS
Grounding connection with two plates that get screwed together. For all electrically conductive fabrics, fleeces, meshes. The two connecting plat...
View full details$ 27.00 -
Sold out
$ 13.99GMF-300 Grounding Kit for WMF-300 Magnetic Shielding
Grounding set for the use with our magnetic shielding film WMF-300. The WMF-300 surface is electrically insulated. Whilst screwing down the cable...
View full details$ 13.99Sold out -
from $ 20.99Stainless Steel Tape ELB
Product Description Specially formulated stainless steel tape can be attached to gauze or fleeces elements with 5-10cm overlap during application. ...
View full detailsfrom $ 20.99 -
$ 26.99WOREMOR Grounding Plug GPB
Grounding plug for groundable fabric products like earthing-products, canopies, sleeping bag, bedding, etc. This plug is suitable for portable prod...
View full details$ 26.99 -
$ 12.00GFCI Outlet Circuit Tester for 125VAC Receptacles
Socket Tester with GFCI check,Receptacle Tester for Standard AC Outlets. Automatic Electric Circuit Polarity Voltage Detector Breaker Finder Det...
View full details$ 12.00 -
$ 12.00Outlet Circuit Tester for 125VAC Circuits - Detects Faulty Wiring in 3 Wire Receptacle
Designed to detect the most common wiring problems in standard receptacles. Conditions indicated: wiring correction, open ground, reverse polar...
View full details$ 12.00
