Grounding Housing GF4 | 120x120 mm

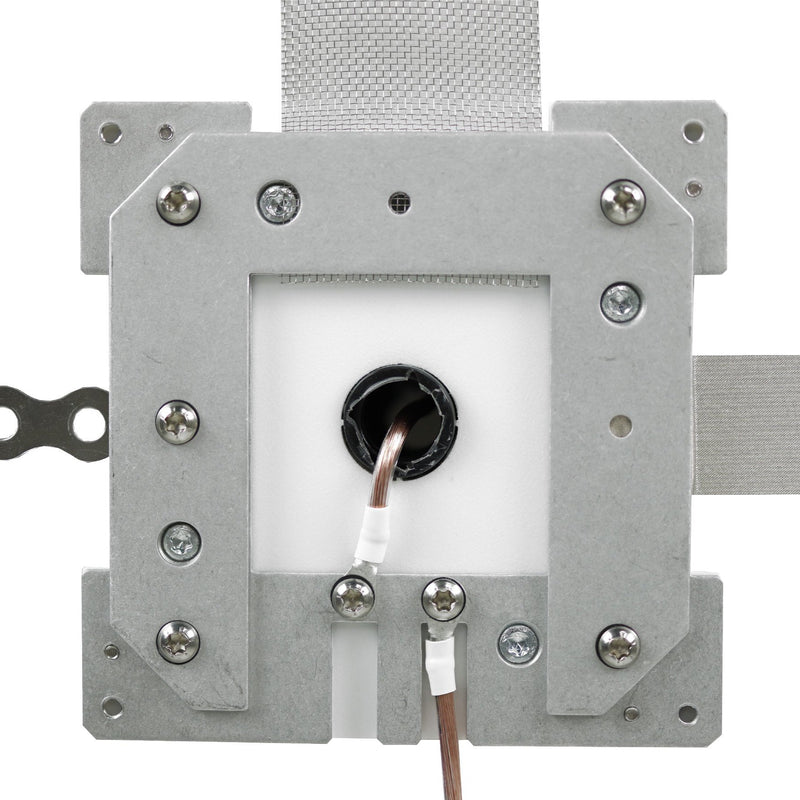

Large-sized surface/flash mounting housing 120x120 mm, for the installation directly on shielding products or for clamping the grounding straps. Due to the large surface preferably used in façade and roof areas. With three clamping points for grounding straps for all surfaces with shielding paint, shielding mesh, shielding plaster, reinforcement fabric. Usage on the interior as well as the exterior (additional seal necessary). One piece is needed per surface. Flush mounted with a height of 11 mm is thinner than a drywall construction board.
- Connectivity: 3 clamping points. 2 cable connections.

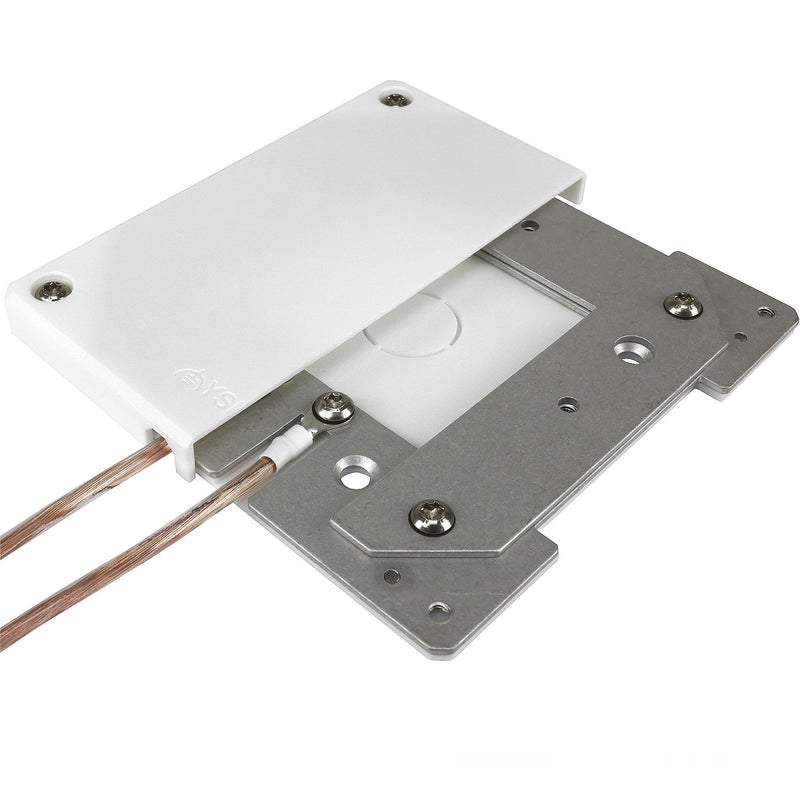

- Scope of delivery: Aluminum plate 115x115x2 mm, plastic cover 120x120x11 mm, sealing glue UHU, 20 cm grounding strap, all necessary screws, discs, dowels, cable lugs and a screwing tool with Torx®-Bits. Cable is not included in the scope of delivery – we recommend our pre-assembled cables GL.
