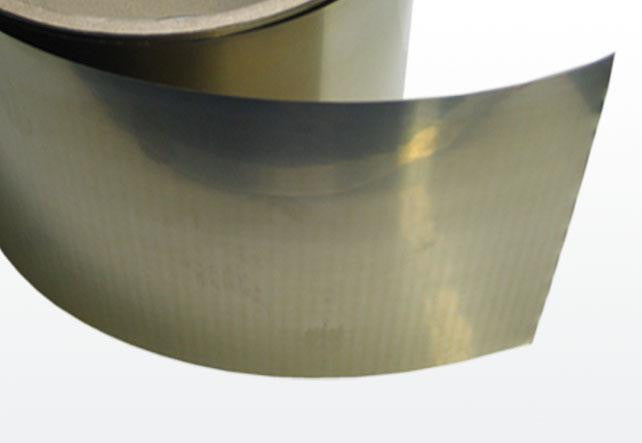

Specifically designed to combat alternating magnetic fields generated by a range of sources, including cables, transformers, generators, traction power systems, power distribution boxes, high-voltage lines, and electronic circuits, this foil operates effectively up to 30MHz. Furthermore, it's equally proficient in shielding against permanent DC magnetic fields such as those produced by the Earth's magnetic field or magnets.
The versatility of MS-155F flexible magnetic field blocking foil extends to safeguarding electronic circuitry, appliances, and their chassis against magnetic interference. This capability is particularly valuable in highly sensitive environments like control centers and other critical applications.
In summary, MS-155F Magnetic Field Shielding Foil is a reliable and adaptable solution for shielding against a wide range of magnetic fields, making it an indispensable asset in various industries and scenarios
Size: Available in a practical 6.1 inch (155 mm) width. Priced for one linear foot and can be ordered in multiples of linear feet.
MS-155F Magnetic Shielding Foil Features:
-
Frequency Range: Effective shielding across a broad frequency spectrum, from DC (Direct Current) to 30MHz.
-

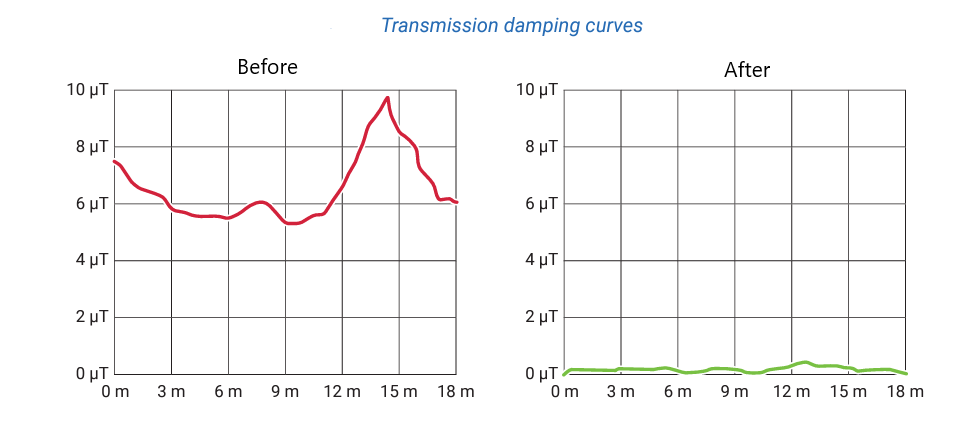

Damping Factor: Boasts a damping factor of 5-7, ensuring effective attenuation of magnetic fields.
-
Saturation Flux Density: With a saturation flux density of 0.8T, the foil can handle substantial magnetic flux without losing shielding efficiency.
-
Screening Material: Crafted from a nickel/iron alloy, commonly referred to as Mu metal, known for its exceptional magnetic shielding properties and isotropic nature.
-
Carrier Material: Utilizes the same nickel/iron alloy (Mu metal) for the carrier material, ensuring consistent shielding characteristics.
-
Color: Presents a silver color, adding an aesthetic aspect to its functional design.
-
Width: Comes in a convenient width of 6.1 Inch (155 mm), accommodating various shielding applications.
-
Thickness: Features a thin yet effective thickness of 0.1 mm, allowing flexibility without compromising on shielding performance.
-
Weight: Exhibits a lightweight property, weighing approximately 1.1 kg/m², facilitating easy installation and handling.
-
Neatled Design: Engineered for optimal shielding efficiency, ensuring maximum protection against magnetic interference.
-
Foldable Design: Can be folded and bent without concerns, offering versatility in shielding applications.
-
Easy Handling and Cutting: Designed for user convenience, it can be easily cut using a knife or scissors, simplifying customization for specific needs.
-
Simple Installation: High flexibility makes it easy to install, adapting to various shapes and surfaces without compromising performance.
-
Noncorrosive: Resistant to corrosion, ensuring a long lifespan and maintaining shielding effectiveness over time.
-
Paintable: Provides the option to paint over the foil, blending seamlessly with the surrounding environment or equipment.
