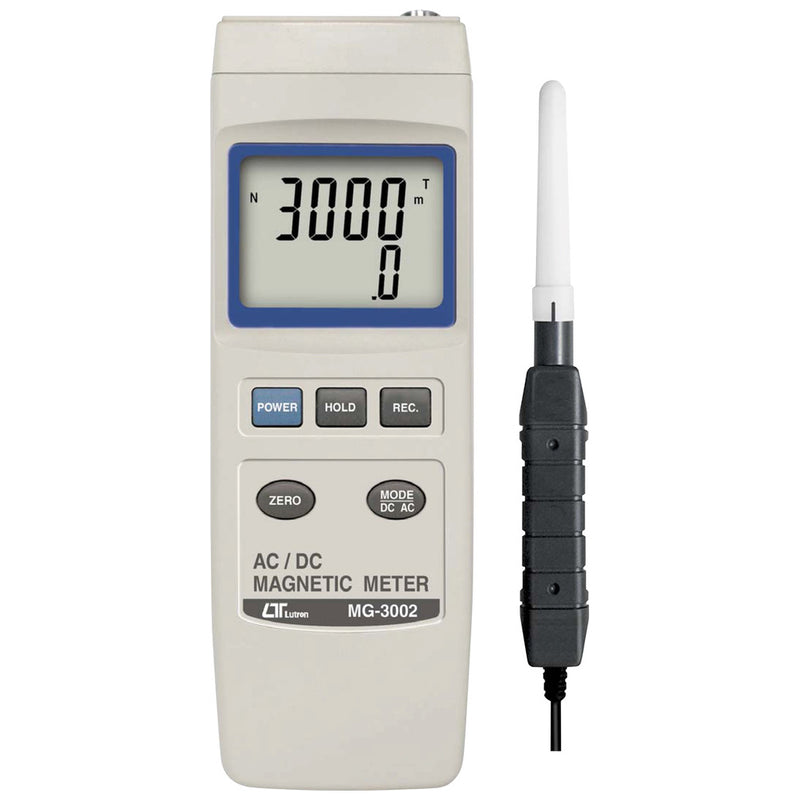

Lutron MG-3002: AC/DC Magnetic Meter

Name: Lutron MG-3002: AC/DC Magnetic Meter
Brand: Lutron
Price: 225.00 USD
Availability: OutOfStock

by Lutron

Sold out

$ 225.00 - $ 225.00

$ 225.00

$ 225.00 - $ 225.00

$ 225.00

Quantity

Features:

* Wide range, general purpose magnetic measurement. For industrial, mechanical, material, electrical, laboratory field usage.
* Unit : G ( Gauss ), mT ( milli Tesla ).
* DC and AC magnetic field measurement
* DC Range : 300.00 mT/3000.0 mT. AC Range : 150.00 mT/1500.0 mT.
* Resolution : 0.01/0.1 mT, 0.1/1 G.
* N pole/S pole indicator.
* Use Hall sensor with automatic Temp. compensation.
* Zero button for DC magnetic function.
* Separate probe, easy operation and convenient for remote measurement.
* Data hold function for freezing the desired value on display.
* Records Maximum and Minimum readings with Recall.
* RS232/USB computer interface.
* Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
* Heavy duty & compact housing with hard carrying case, designed for easy carry out & operation.
* Auto shut off is available to save battery life.
* Power supply from batteries or DC 9V adapter in.

What our customers say

Free returns on all eligible orders

You have 30 days to request a return. All custom and sale items are final sale. Most fabric & textile items are final sale. See return policy for more information.

Shipping Information

We offer free Standard and Expedited shipping on most orders over $50 USD (applies to Canada and USA only, exclusions may apply).

The EMR Guarantee

We stand behind every product we sell. If you have any issues with your order, our team will work with you to make it right. Whether you have product questions, need help with an order, or want guidance on choosing the right solution, you can count on us. Contact us anytime at info@emrss.com or +1 855 425 1657.

Specifications:

Circuit: Custom one-chip of microprocessor LSI circuit.

Display: LCD size : 52 mm x 38 mm dual function LCD display.

Measurement Unit: mT(milli Tesla), G (Gauss)

Measurement Range DC:

* mT Range 1( 300.00 mT x 0.01 mT)
* mT Range 2 (3,000.0 mT x 0.1 mT)
* G Range 1( 3,000.0 G x 0.1 G)
* G Range 2(30,000 G x 1 G)

Measurement Range AC:

* mT Range 1( 150.00 mT x 0.01 mT)
* mT Range 2 (1,500.0 mT x 0.1 mT)
* G Range 1(1,500.0 G x 0.1 G)
* G Range 2(15,000 G x 1 G)

Sensor: Hall senor

Accuracy:

* DC ± ( 5 % rdg. + 10 digit )
* AC ± ( 5 % rdg. + 10 digit )

Frequency Response: AC measurement : 50 Hz / 60 Hz
Temp. Compensation for hall sensor: Probe head build the Temp. sensor for using the ATC ( automatic Temp. compensation ).
Field Direction: Uniaxial
Data Hold: Freeze the display reading.
Memory Recall: Maximum & Minimum value.
Display Sampling Time: Approx. 1 second.
Power Off: Manual off by push button or Auto shut off to save battery life.
Data Output: RS 232/USB PC serial interface.
* Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
* Connect the optional USB cableUSB-01 will get the USB plug.
Operating Temperature: 0 to 50 ℃.
Operating Humidity: Less than 85% R.H.
Power Supply: DC 1.5 V battery ( UM4, AAA ) x 6 PCs, Alkaline/heavy duty type or equivalent.
Power Current: Approx. DC 20.5 mA .
Weight: Approx. 270 g/0.60 LB.
( include battery & probe )
Dimension:
Main instrument: 200 x 68 x 30 mm ( 7.9 x 2.7 x 1.2 inch ).
Probe: 198 x 25 x 19 mm ( 7.8 x 1.0 x 0.7 inch ).
Accessories Included: Instruction manual (1 PC), Magnetic Probe (1 PC), Hard Carrying case, CA-06 (1 PC)
Optional Accessories: RS232 cable, UPCB-02, USB cable, USB-01, Data Acquisition software, SW-U801-WIN
