EMI Shielding Materials

Electromagnetic interference (EMI) shielding materials are used to prevent unwanted electromagnetic radiation from either escaping or entering a specific area or device. These materials are essential in various industries, including electronics, telecommunications, aerospace, and healthcare, where electromagnetic interference can disrupt sensitive equipment or pose security risks. Here are some common EMI shielding materials and their properties:

1. Metals:

   • Copper: Copper is one of the most widely used materials for EMI shielding due to its excellent electrical conductivity. It can be formed into various shapes, such as foils, sheets, and meshes, making it versatile for different applications.
   • Aluminum: Aluminum is often used as an alternative to copper. It offers good shielding performance and is less expensive. However, it's not as conductive as copper.

2. Conductive Coatings/Paints:

   • Conductive paints: These are typically made from graphite or silver particles suspended in a solvent. They can be applied to surfaces to create a conductive shield.

3. Metallic Foils and Sheets:

   • Tin-plated steel: Tin-plated steel sheets offer good shielding properties and corrosion resistance.
   • Nickel: Nickel foils are used in applications where corrosion resistance is crucial, such as aerospace and military equipment.

4. Conductive Fabrics:

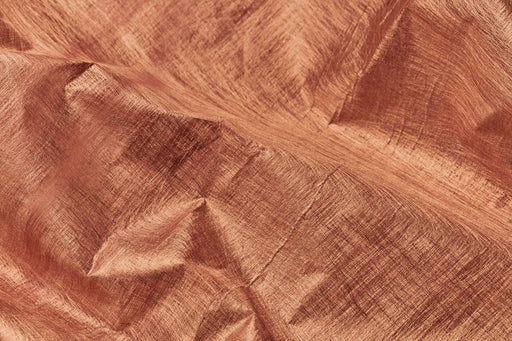

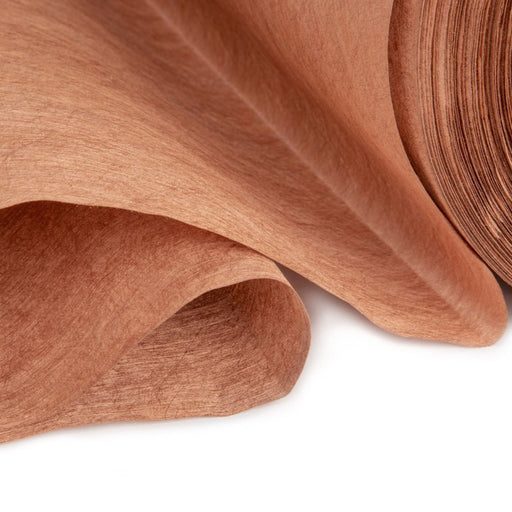

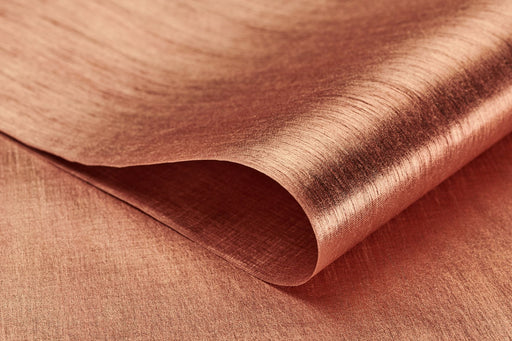

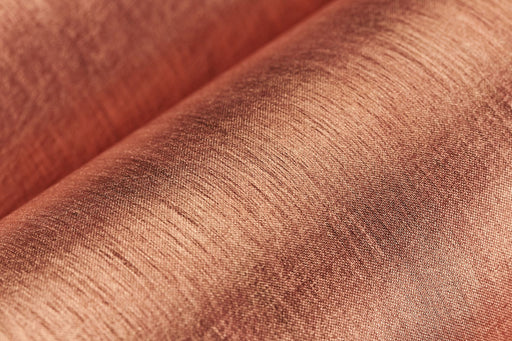

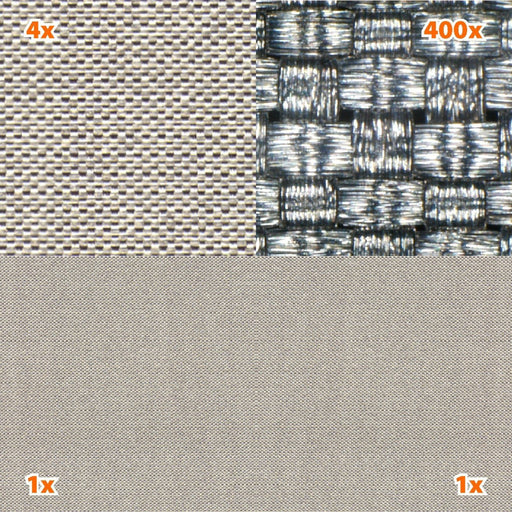

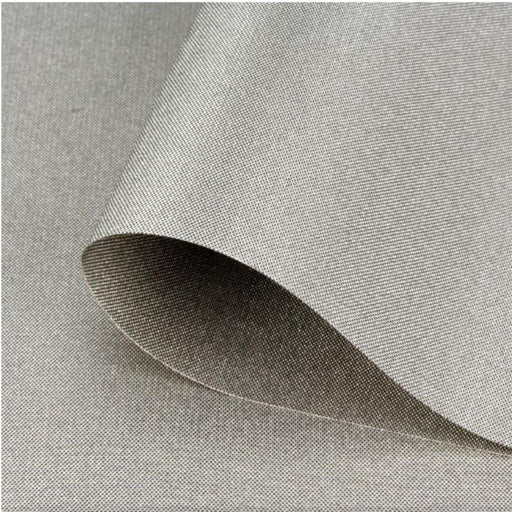

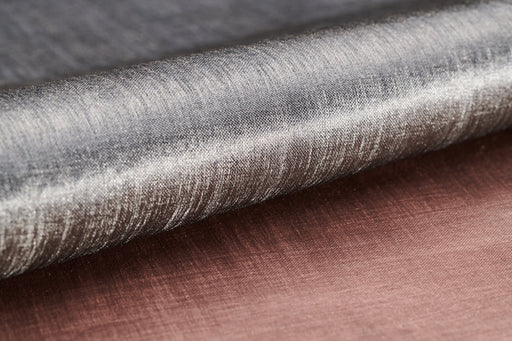

   • Metal-coated fabrics: Fabrics coated with metals like silver, nickel, or copper are flexible and lightweight. They are used in applications where flexibility and formability are important, such as clothing for electromagnetic-sensitive environments.

5. Conductive Gaskets and Seals:

   • Rubber or silicone gaskets with embedded conductive particles: These are used to seal seams and openings in enclosures to prevent EMI leakage.

6. Ferrites:

   • Ferrite sheets: These are composed of magnetic materials like iron or nickel. They absorb and dissipate electromagnetic radiation, reducing EMI. Ferrite sheets are often used in high-frequency applications.

7. Wire Mesh:

   • Wire mesh screens: These are made of finely woven metal wires and are used in situations where ventilation is necessary, such as in electronic equipment cabinets.

8. Conductive Polymers:

   • Conductive polymers: These are composite materials that incorporate conductive fillers (e.g., carbon nanotubes) into a polymer matrix. They offer lightweight and flexible shielding options.

9. Hybrid Materials:

   • Some shielding materials combine multiple approaches, such as metal-coated plastics or fabrics with conductive coatings.

The choice of EMI shielding material depends on several factors, including the frequency range of the interference, the required level of shielding effectiveness, environmental factors, and cost considerations. Design engineers often need to carefully select the most appropriate materials and configurations to meet the specific needs of their applications. Additionally, it's essential to ensure that the chosen materials and shielding solutions comply with relevant industry standards and regulations.
