EMP-S90

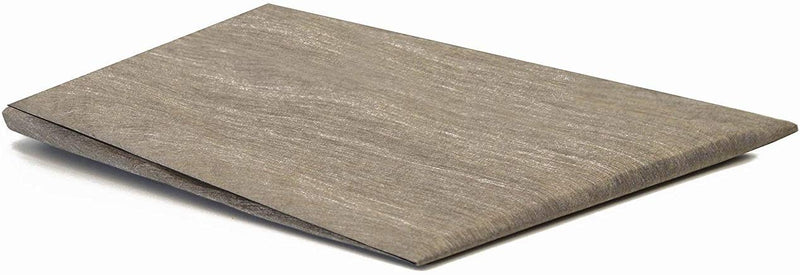

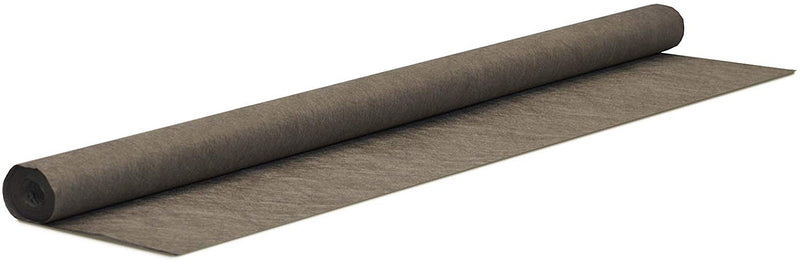

High Attenuation EMP Protection Fabric.

Ideal use for Farraday cages in orders to protect equipment. Apply more than one layer to achieve higher attenuation. The second layer will increase the shielding in about 50%.

Technical data

  • Width: 3.28ft
  • Sold by linear foot

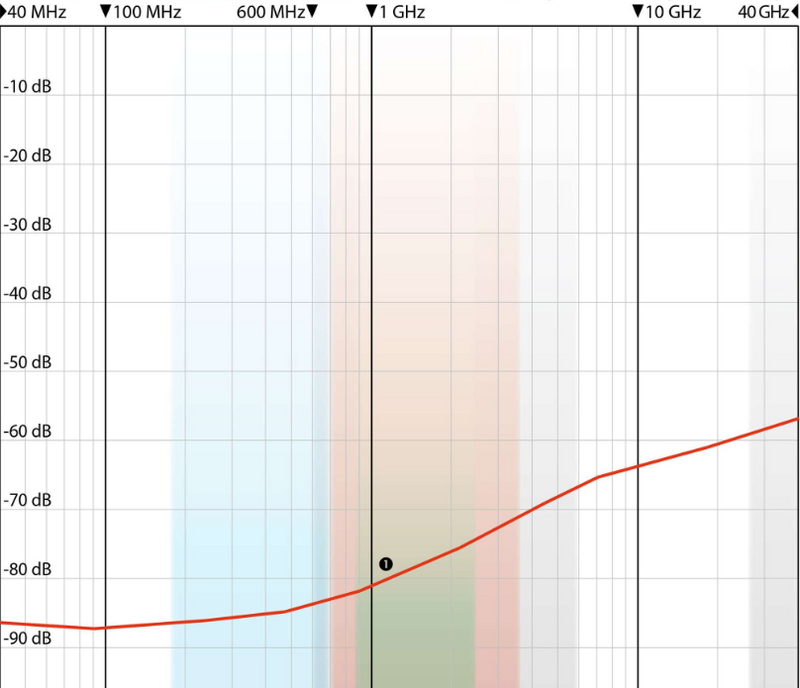

  • Attenuation range:
    • 40MHZ -  87dB
    • 1GHz    -  80dB
    • 10GHz  -  64dB
    • 40GHz   - 57dB
  • Weight: ~84.8 g/m².
  • Material thickness: ~0.149 mm.
  • Color: Brown.
  • Materials: Nylon, copper, nickel, protective coating.
  • Shielding certificate according to IEEE -STD 299-1997
