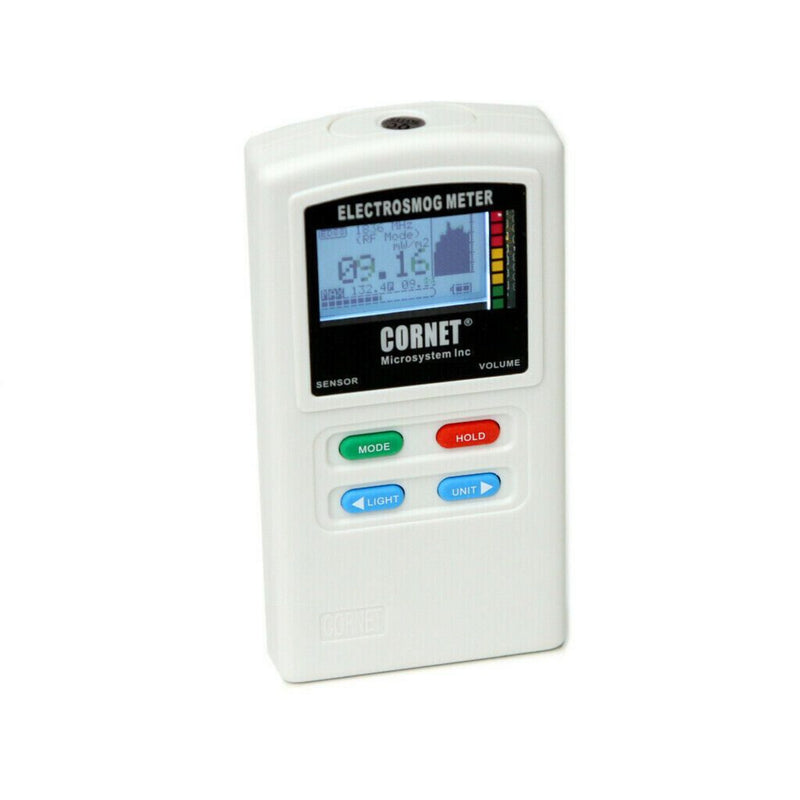

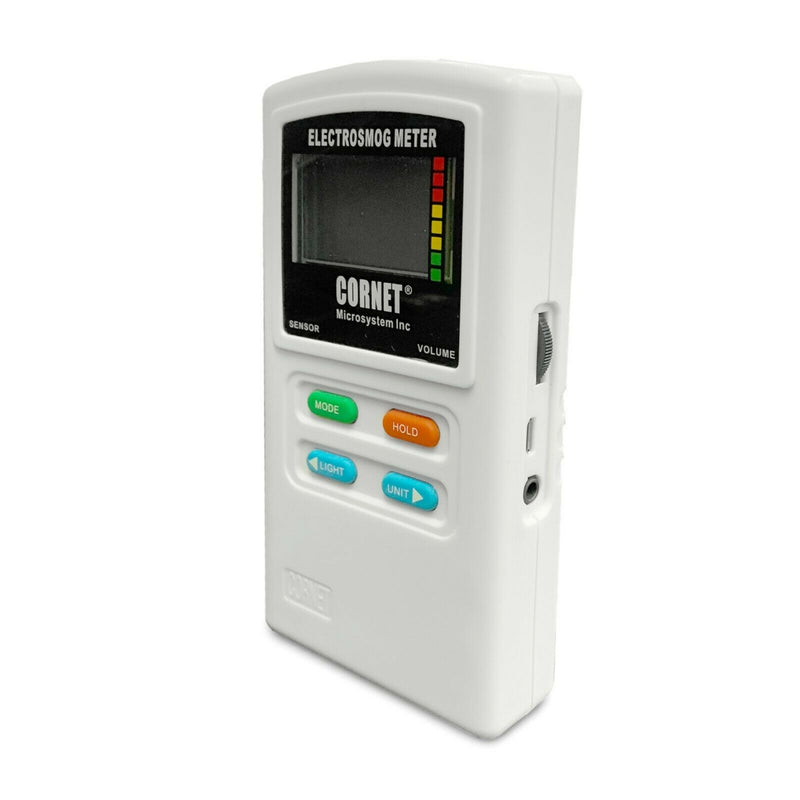

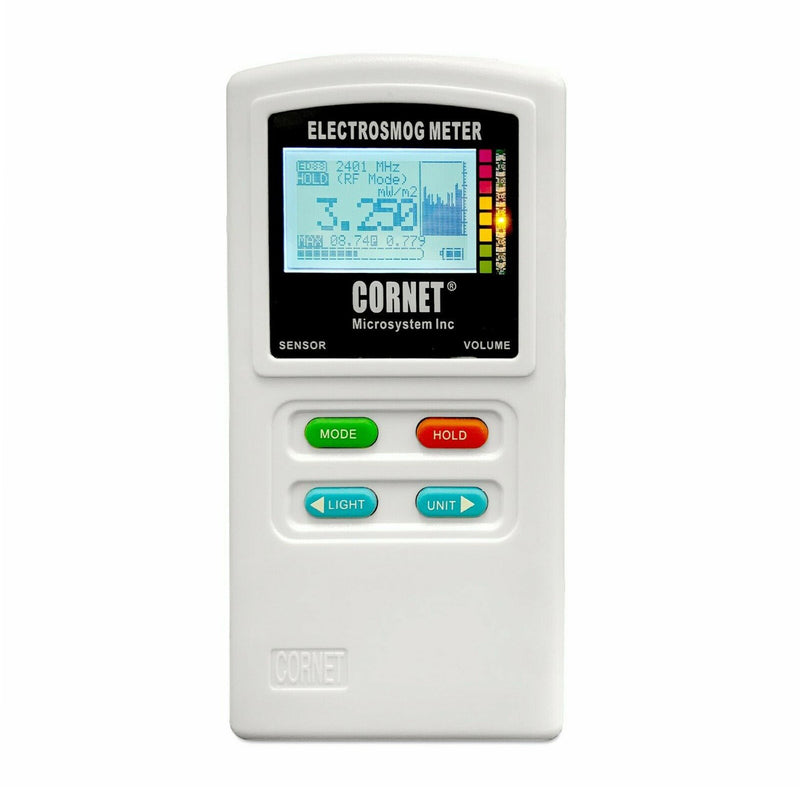

Cornet ED88T Plus5G2 EMF Meter (New Release! 2023)

by Cornet
Original price $ 189.00 - Original price $ 219.00
Original price $ 189.00
$ 199.99
$ 199.99 - $ 229.00
Current price $ 199.99

The ED88T Plus5G is a broadband measuring instrument with a frequency range from 100 MHz to 8 GHz. In addition, it also measures low frequency Magnetic Fields ranging from 50Hz to 10kHz and low frequency Electric Fields ranging from 50 Hz to 50 kHz. This meter will give a home or business owner a basic understanding of RF and EMF exposure in their environment and help to identify the primary sources of electro-pollution in an environment. The built-in Frequency counter supports all 5G mobile frequency bands, with 5G signal frequency indicator. ED88TPlus5G meter can be used as a detector for testing the famous HB100 10.525GHz Microwave motion sensor module
which is used for LED light on-off control. The meter is able to detect  the signal frequency up to 11GHz with reduced sensitivity.

Features:

  • Wide radio frequency detection range : 100 MHz to 8 GHz (–65 dBm to 5 dBm)
  • Low frequency range 1 magnetic field range: 50 Hz to 10 kHz (0.1 uT to 50 uT)/(1 mG to 500 mG)
  • Low frequency range 2 magnetic field range: 50 Hz to 1 kHz (0.01 uT to 1 uT)/(0.1 mG to 10 mG)
  • Low frequency electric field range: 50 Hz to 10 kHz (10 V/m to 1000 V/m)
  • Sound signature analysis
  • Peak RF power density measurement : 0.5 uW/m2 to 1.8 W/m2
  • Max, average, and hold function

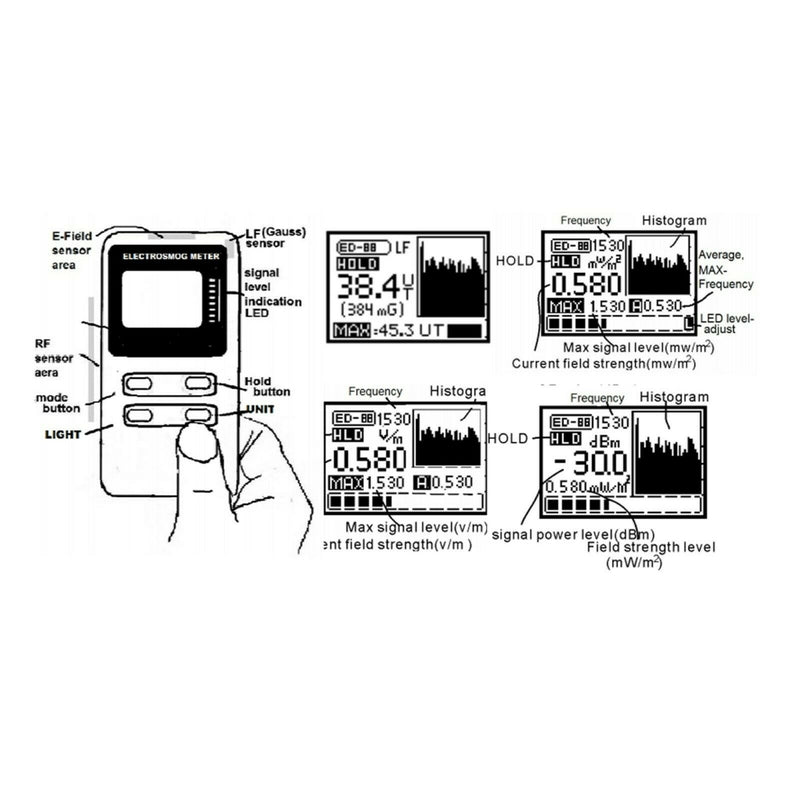

  • LCD moving graphic Histogram to display the signal power level
  • Duty cycle
  • Ultra-fast color LED 8 segment level display for easy signal level indication
  • Frequency counter for on-air digital RF signals (100MHz to 4.2GHz)
  • Battery operated (9V DC)
  • Small, compact handheld design, 69mm X 130mm

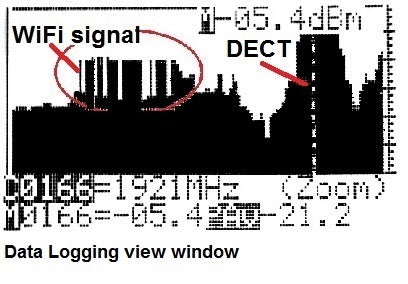

  • Data Logging/Recording of  measured data automatically
    (RF level/frequency, , Gauss meter level, Electric field level)
  • Programmable time interval (0.5sec. to 3min.) for up to 50 hours of data recording
  • USB interface to a PC computer (USB  cable not included)

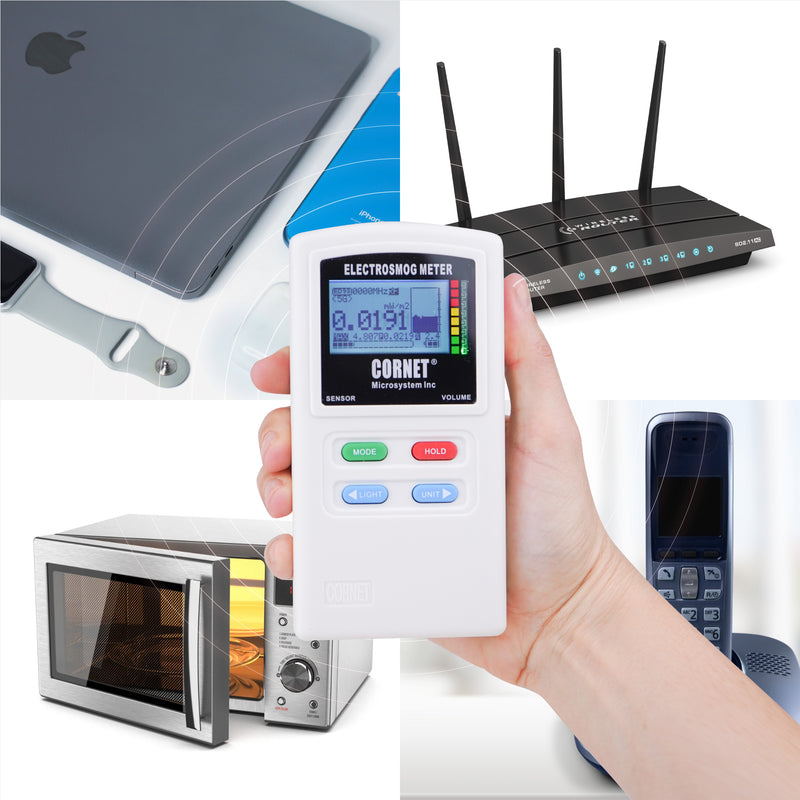

Applications:
  • RF field strength/power level measurement
  • Cellular phone base station radiation power Density safety measurement
  • Telecommunications (CW,TDMA,GSM,DECT)
  • RF Transmitters power output measurement
  • Wireless LAN (Wi-Fi) detection, installations
  • Spy camera, wireless bug finder
  • Cellular/cordless phone radiation safety level
  • Microwave oven leakage detection
  • AC power line, Transformer radiation
  • Personal living environment EMF safety
