LATNEX® Spectrum Analyzer SPA-6G (15-2700 MHz and 4850-6100MHz)

LATNEX® Spectrum Analyzer SPA-6G (15-2700 MHz and 4850-6100MHz)

Name: LATNEX® Spectrum Analyzer SPA-6G (15-2700 MHz and 4850-6100MHz)
Brand: LATNEX
SKU: TAM-1133
Price: 464.00 USD
Availability: InStock

$ 464.00 - $ 464.00

$ 464.00

$ 464.00 - $ 464.00

$ 464.00

Quantity

What our customers say

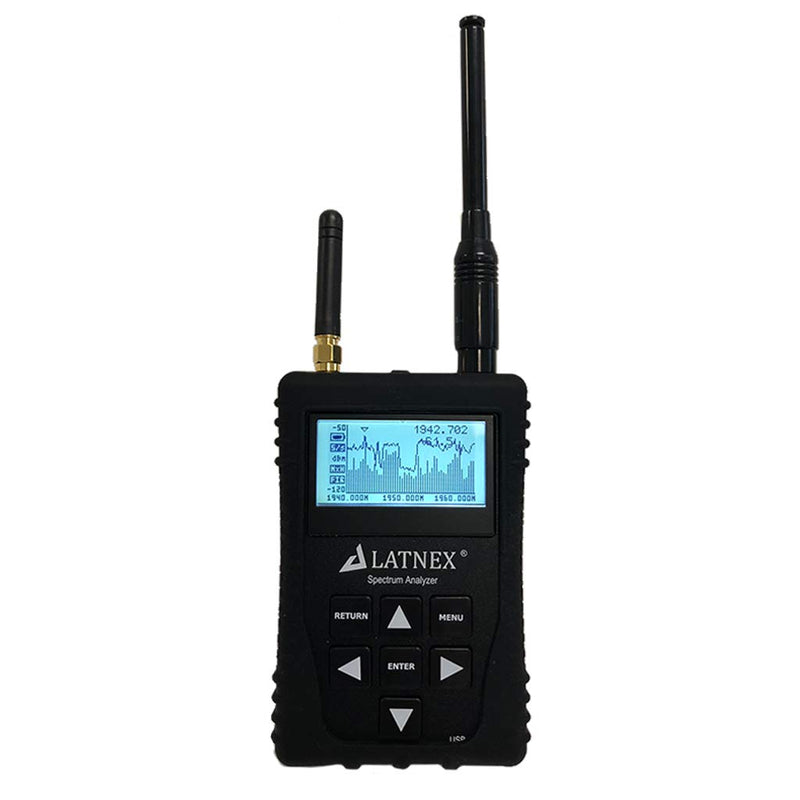

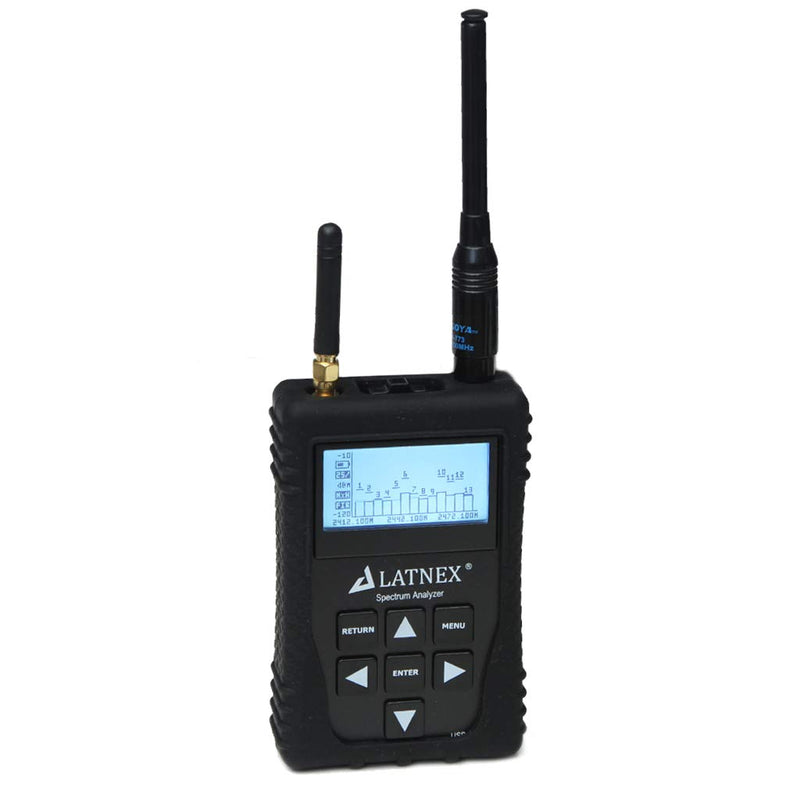

The LATNEX® Spectrum Analyzer is a handheld digital spectrum analyzer, a very affordable tool for work in all popular frequency bands. It is based on a highly integrated frequency synthesizer and double balanced mixer which offers high performance, compact size, low consumption and low cost.

It has been designed to be used equally well outdoor and indoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.

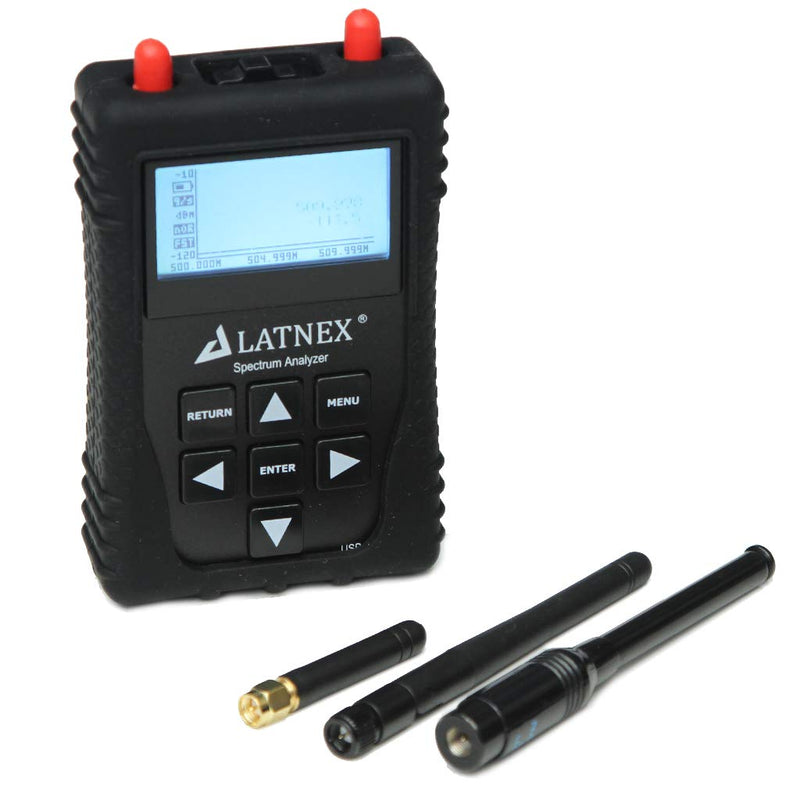

This model includes a 6G baseline unit plus an Expansion Module conveniently assembled and tested. It comes with two SMA connectors and three antennas: a nice Nagoya NA773 wideband telescopic antenna for all Sub-GHz frequencies, a rubber duck 5.8 GHz and a whip helical for 2.4GHz band. Additionally, specific band antennas may be needed to cover efficiently some of the frequencies supported.

Free returns on all eligible orders

You have 30 days to request a return. All custom and sale items are final sale. See return policy for more information.

Shipping Information

We offer free Standard and Expedited shipping on most orders over $50 USD (applies to Canada and USA only, exclusions may apply).

The EMR Guarantee

We stand behind every product we sell. If you have any issues with your order, our team will work with you to make it right. Whether you have product questions, need help with an order, or want guidance on choosing the right solution, you can count on us. Contact us anytime at info@emrss.com or +1 855 425 1657.

The combination of these two models offers coverage for most used communication frequency range used in modern communication technologies including WiFi, Bluetooth, Wireless Audio and Video, LTE, GSM, GPRS, Satellite, CATV, DTV, etc.

Pocket size and lightweight
Solid aluminum metal case
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
Lifetime free firmware upgrades available, open to community requested features
High capacity Lipo for 16hs+ of continuous run, rechargeable by USB

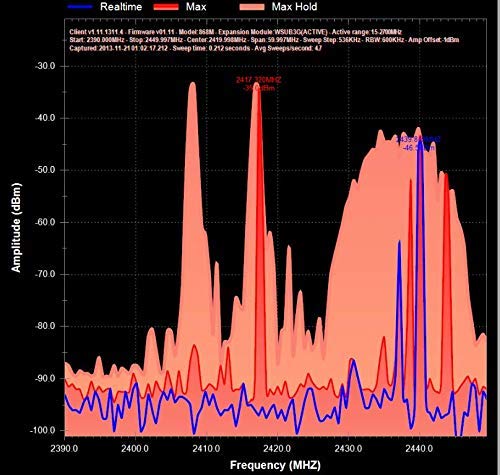

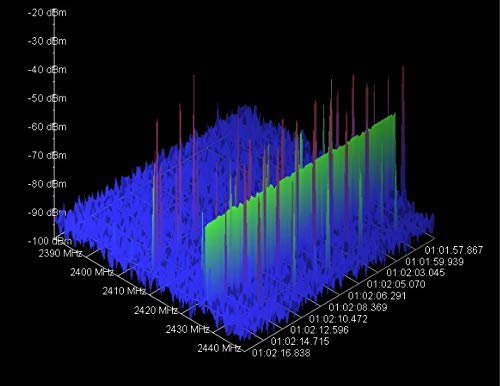

Windows PC client Open Source
Wideband coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz, as well as 4.85-6.1GHz. This includes very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.
Firmware: SPA-6G is delivered with upgraded firmware v1.12. Note some of the features and operation accuracy will be improved in upcoming lifetime free firmware revisions.

Note: this unit does not include RF Generator functionality, only Spectrum Analyzer functionality is available. For signal generator and tracking please consider LATNEX Signal Generator model RF-SG6.

Technical Details

Dimensions	110mm x 70mm x 25mm
Weight	G.W 387g
Battery	Lithium Cells / Batteries contained in equipment UN3481 - PI967
Frequency band	15-2700 MHz and 4850-6100MHz
Frequency span
Left SMA port (6G)	2-600Mhz
Right SMA port (WSUB3G)	112KHz - 600MHz

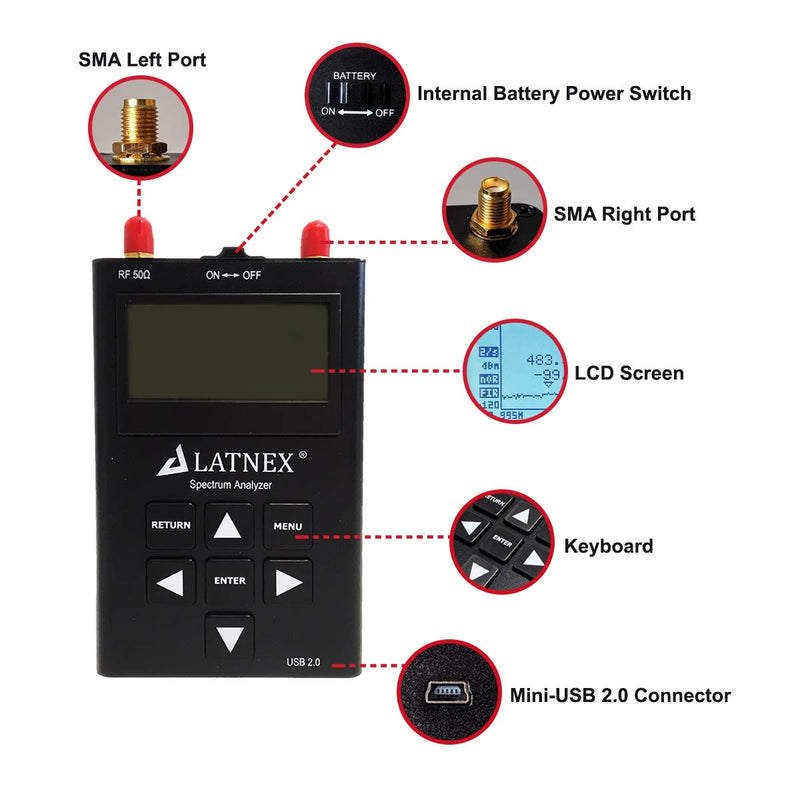

2 standard SMA 50 ohms Spectrum Analyzer connectors
Left SMA port (6G)	4850-6100MHz
Right SMA port (WSUB3G)	15-2700 MHz
Amplitude resolution	0.5dBm
Dynamic range
Left SMA port (6G)	-105dBm to -15dBm
Right SMA port (WSUB3G)	-110dBm to -10dBm
Absolute Max input power
Left SMA port (6G)	+25dBm
Right SMA port (WSUB3G)	+30dBm
Average noise level (typical)	-105dBm
Frequency stability and accuracy (typical)
Left SMA port (6G)	+-0.5ppm
Right SMA port (WSUB3G)	+-10ppm
Amplitude stability and accuracy (typical)
Left SMA port (6G)	+-3dBm
Right SMA port (WSUB3G)	+-6dBm
Frequency resolution	1Khz
Resolution bandwidth (RBW)
Left SMA port (6G)	automatic 58Khz to 812Khz
Right SMA port (WSUB3G)	automatic 3Khz to 600Khz
Graphics LCD	128x64 pixels, great visibility outdoors
PC Windows client	supports Windows XP/Vista/Win7 both 32 and 64bits
Backlight	for great indoor visibility

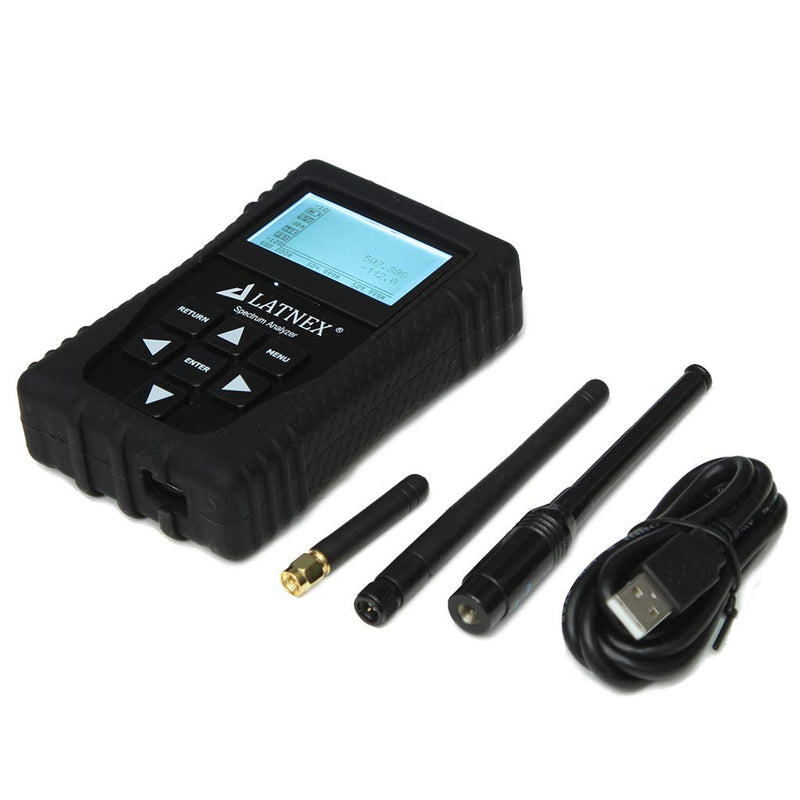

Part List

SPA-6G	1
Rubber duck 5.8GHz antenna	1
Nagoya NA773 wideband telescopic antenna	1
2.4GHz band antenna	1

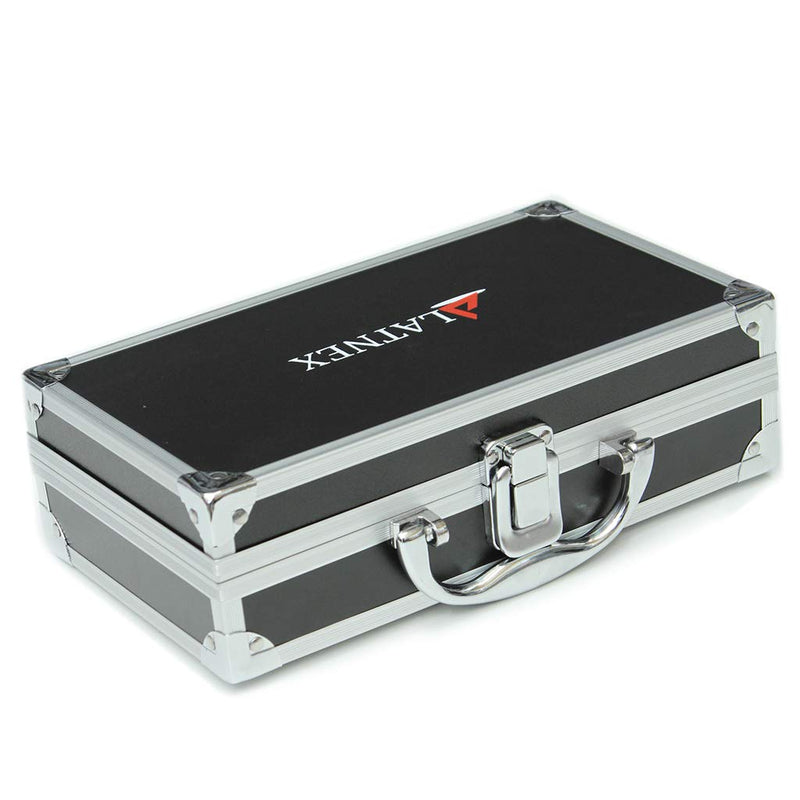

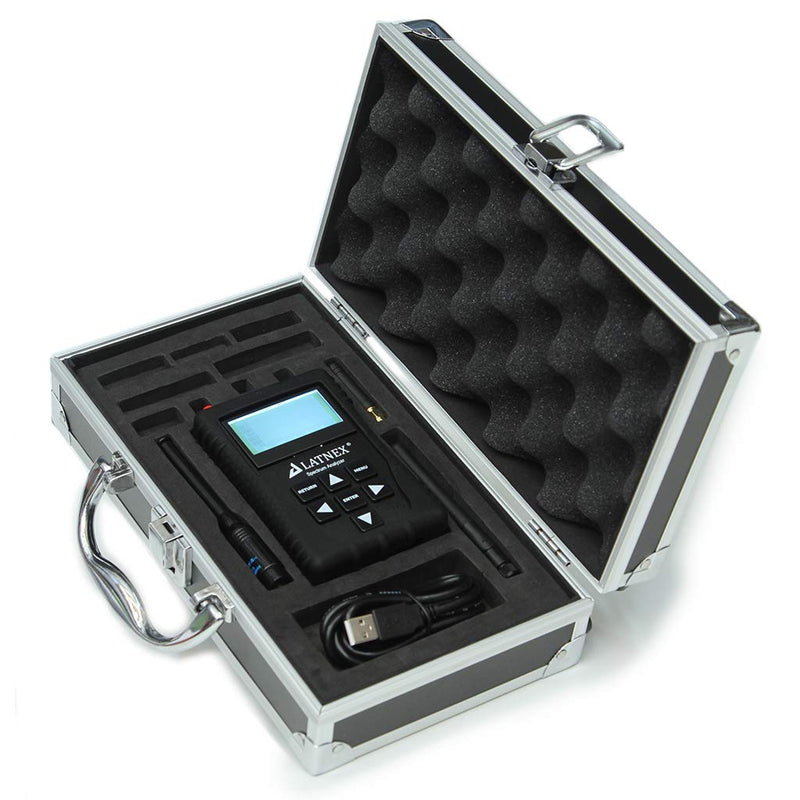

Aluminum metal case	1

ECCN/HTS

ECCN	3A002.c
HSCODE	9030401000

Certification

CE

Very high quality and easy to use right out of box.

The unit itself is solid and works well.

Great for finding wireless issues with mic systems or wifi

What I liked most about this product was the ease of use and may be equally the large display spectrum analyzer one could put up using a large screen TV and PC software. In the end you can default back to the LCD on the unit and still do the analysis. Neat product!I bought this unit because my neighbor was spraying radiation across the street disrupting and damaging security cameras...even non-wifi ones. Seeing the display on FB instantly changed his tactics by knowing he wasn't doing the 'invisible' anymore. What factory makes these broken criminals?
