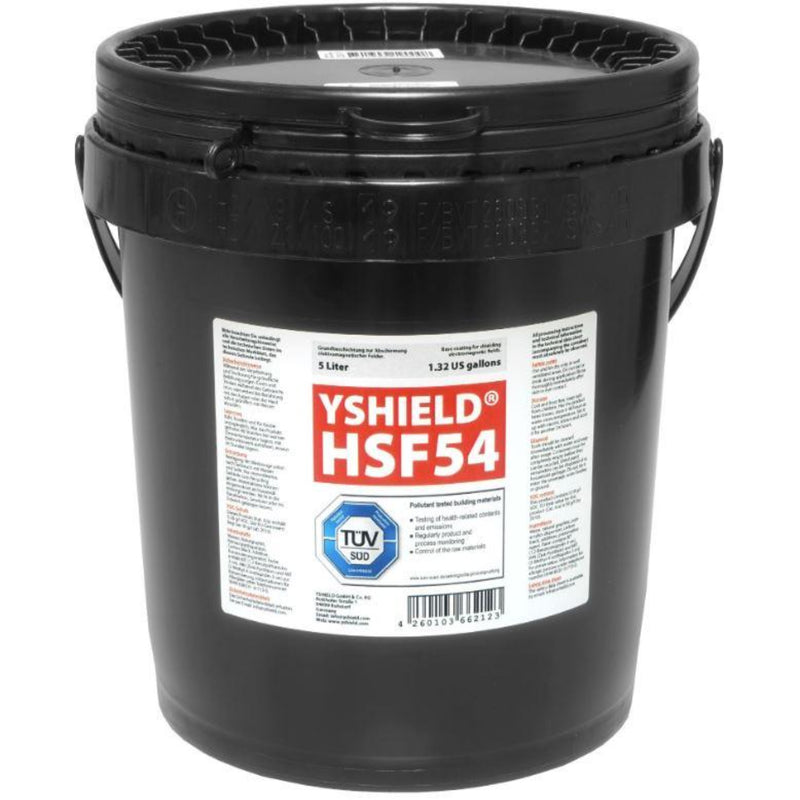

HSF54 - EMF 5G Shielding Paint 5L (Internal/External use)

HSF54 - 5G Shielding Paint - Screening Attenuation

YShield Paint HSF54

Name: YShield Paint HSF54
Brand: YSHIELD
SKU: SM-4120
Price: 230.00 USD
Availability: InStock

$ 230.00 - $ 230.00

$ 230.00

$ 230.00 - $ 230.00

$ 230.00

Quantity

What our customers say

Shielding paint for shielding high-frequency electromagnetic fields (HF) and low-frequency alternating electrical fields (LF). Our best-selling product, proven ten thousand times over. One color for everything if you can't decide. Improved again in 2019. Breathable, solvent-free, plasticizer-free and low in emissions. With outstanding physical and chemical properties combined with high ecology.

Color: Black

Coverage: 5 Liters - 37.16 sq. Meters (400 sq. Feet)

Free returns on all eligible orders

You have 30 days to request a return. All custom and sale items are final sale. See return policy for more information.

Shipping Information

We offer free Standard and Expedited shipping on most orders over $50 USD (applies to Canada and USA only, exclusions may apply).

The EMR Guarantee

We stand behind every product we sell. If you have any issues with your order, our team will work with you to make it right. Whether you have product questions, need help with an order, or want guidance on choosing the right solution, you can count on us. Contact us anytime at info@emrss.com or +1 855 425 1657.

Shielding Effectiveness

At 1 GHz : single layer 39 dB | Two layers 46 dB | Three-layer 51 dB
At 40 GHz : Single-layer 39 dB | Two layers 60 dB | Three layers 78 dB

Underground

Excellent adhesion to all common surfaces indoors and outdoors.

Topcoat

Can be reworked preferably with plastic-based emulsion paints, silicate emulsion paints, facade paints or silicone resin paints.

Grounding

Must be grounded! For interior, we recommend the grounding strap GSX plus grounding plate GS, for exterior the fiber additive AF3 plus the grounding plate GF.

Frost resistance

This product is frost-resistant (5 tested frost / thaw cycles) and can be shipped all year round by air / sea.

Ingredients

Water, natural graphite, pure acrylic dispersion, carbon black, additives, preservatives (BIT, INN, MIT).

Technical specifications

You will find these in detail in the overview table and in the technical data sheet.

As a coating in technical applications

With the fine pigmentation of 50 µm, high film hardness, good substrate wetting, high adhesive tensile values and Newtonian rheology, our customers have discovered more and more technical applications over the years: Technical shielding of parts, devices, machines or systems. Manufacture of absorber materials or pressure sensors. Screen printing on heating foils or plasterboard.

Have a unique situation

Have a unique situation, they answered my questions, product arrived quickly. I have not applied it yet.

Thick at the Bottom

Took the 5L paint bucket to Home Depot to have it shook. HD did not have an adapter for this size bucket. I took home and shook it as much as I possibly could, Being a female at 60 years, I did the best I could, but when I got to the last 1/3 of the bucket the paint was so thick. What a disappointment thinking of all this work painting, and that it may not be fully effective. This company needs to sell the paint in standard US one gallon bucket size for shipments to the US.

Thank you for trusting us with your EMF needs. We are sorry to hear that the paint consistency was not as expected. Based on your description, this can occur when the paint is left for a few months before being used. Most times, opening the pail and manually stirring it will help to loosen any sediment at the bottom and make the mixture more homogeneous. For any future projects please reach out to our customer service team as they are always ready to provide assistance to ensure that your project is successful.
