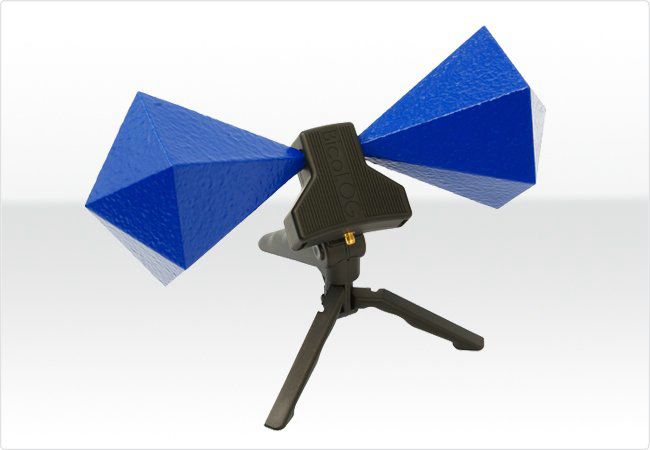

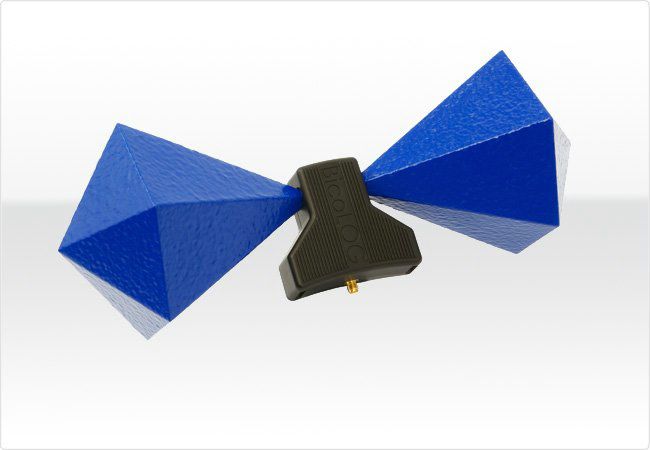

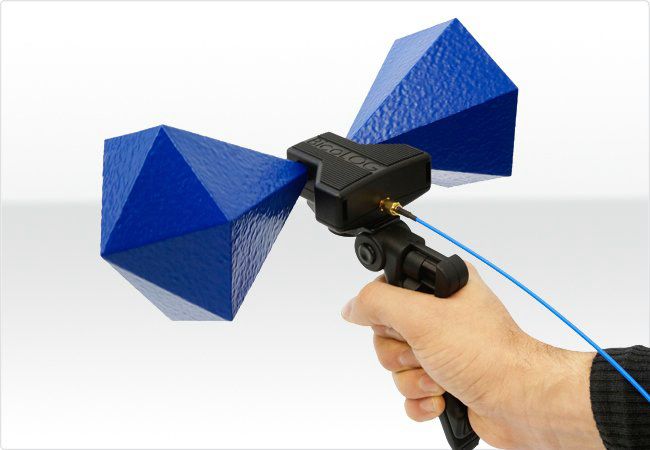

BicoLOG 5070 - Biconical radial isotropic broadband antenna
Excellent cost effective antenna for low frequency measurements. Perfect to cover the full radio & TV frequency band down to 50MHz including Tetra/BOS & ISM434.
Every BicoLOG antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality rubber paint which offers protection against mechanical damage and environmental influence, a top-quality integrated tripod connection and a SMA connector.
Made in Germany:
All Aaronia antennas are developed, individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standard so that Aaronia can offer every customer a full 10 years warranty for all EMC antennas.
Exhaustive Calibration data:
All Aaronia antennas include a complete high resolution (10MHz or even 5MHz steps!) calibration data set with an unmatched number of calibration points (on CD). This offers the ability to make a very accurate EMC measurement with any Spectrum Analyzer.

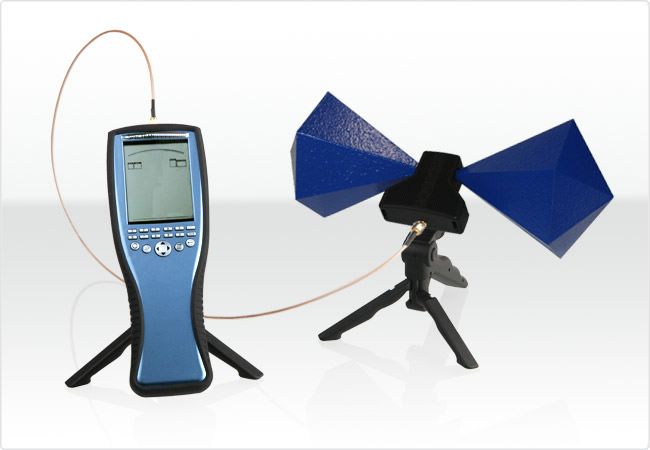

Compatible with any Spectrum Analyzer brand
Design: Biconical (radial isotropic)
Frequency range: 50MHz to 700MHz
Max. input power: 5W AM (100MHz)
Nominal impedance: 50 Ohm
Gain: -18dBi (@100MHz)
Antenna factor: See data sheet graph
RF connection: SMA (f) or N (see optional adapter)
Tripod connection: 1/4"
Calibration points: 70 (5MHz and 10MHz-steps)
Warranty: 10 years
Excellent cost effective choice for low frequency measurements down to 50MHz
Typical standard calibration data (on CD)
Coverage of various mobile radio frequency ranges
Suitable for field-strength and EMC measurements due to high precision
Can be used in the lab and for open-field application
* The item is ordered by demand, so expect a 2-3 week lead time from time of purchase.
