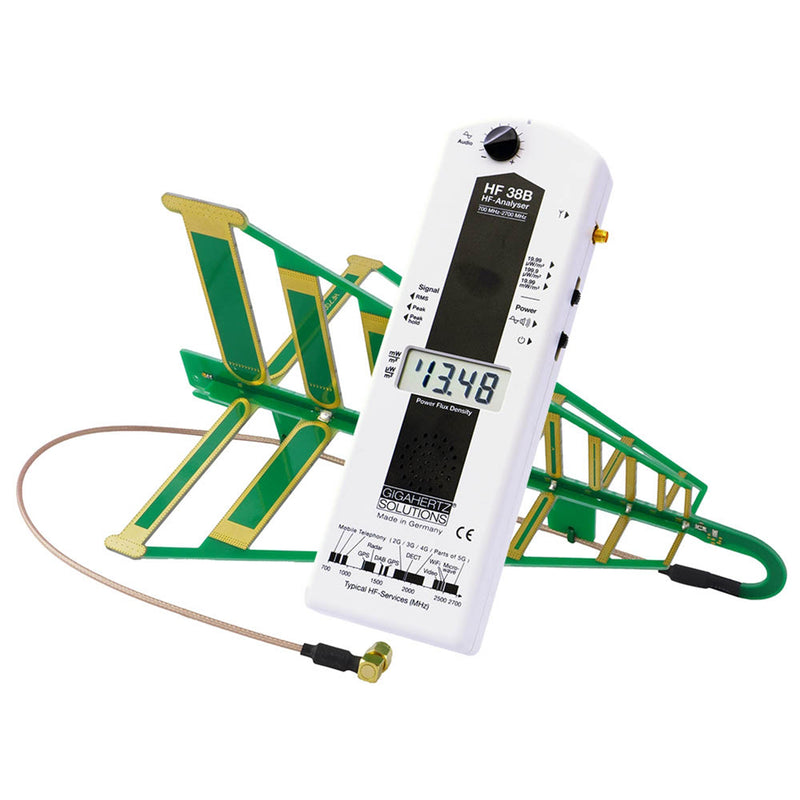

HF38B High Frequency EMF  Meter

HF38B High Frequency EMF Meter

$599.00 USD

Product Description

HF38B is a High Frequency semi-professional analyzer used for detection of radiation in frequencies raging from 800MHz-2,500MHz. Excellent at detecting radiation coming from mobile radio: GSM, UMTS / G3, cordless telephones (DECT), WLAN (Bluetooth), radar surveillance stations, etc. by means of an acoustic signal proportional to the modulation frequency. Simple handling for users with basic knowledge. The device operates on Alkaline Mangan battery which is included.



HF38B High Frequency EMF Meter Features:

  • Frequency Range: 800 MHz - 2.7 GHz (3.3 GHz with increased tolerance)
  • Measurement Range: Power flux density: 0.01 - 19,990 µW/m²
  • Accuracy (CW): Basic accuracy including linearity tolerance : +/- 6dB
     Zero offset and rollover +/- 9 digits
  • Sensor: Optimised logarithmic periodic antenna: Less ripple, better directionality, improved shielding vs. ground
  • Audio Analysis: Identification of pulsed radiation sources (mobile radio (GSM, UMTS/G3), cordless telephones (DECT), WLAN (Bluetooth), air-traffic control radar) by means of an acoustic signal proportional to the modulation frequency
  • Electric power supply: 9 Volt alkaline manganese battery (included), average operation time 6 - 7 hours
     Low-Batt. indication, auto-power-off
  • Signal Rating: Display of peak value, peak hold as well as average value (switchable)
  •  2 years warranty
  • Weight: 0.35 kg
  • Made in Germany
