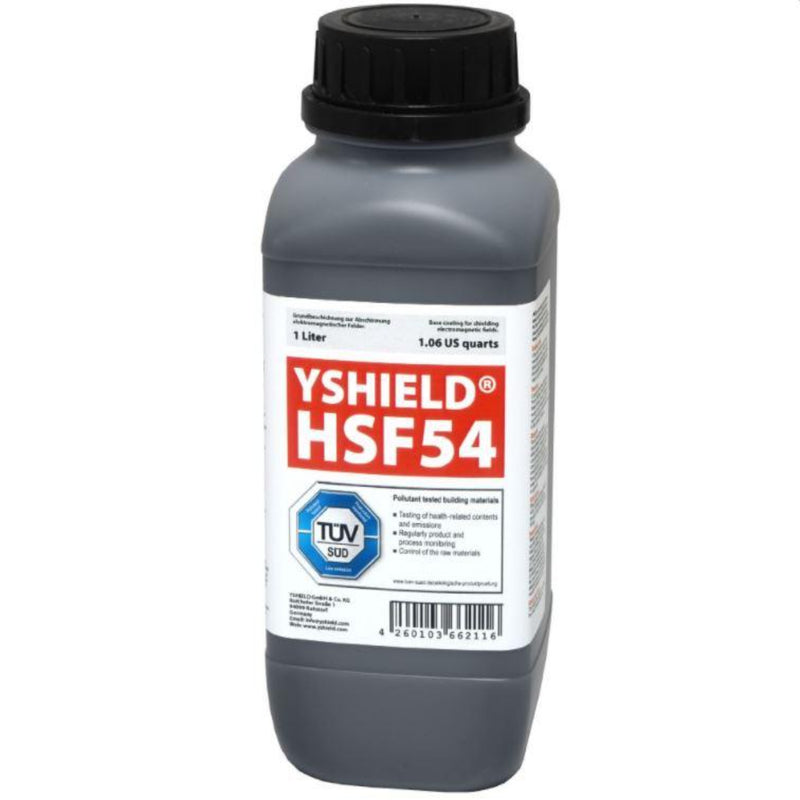

HSF54 - EMR Shielding Paint 1L By YShield (Internal/External use)

HSF54 - EMR Shielding Paint 1L By YShield (Internal/External use)

$64.99 USD

Product Details

This new and improved classic recipe has now been updated to be Frost resistant! This highly efficient shielding paint for the protection against high-frequency electromagnetic fields, low frequency electric fields and RF/Microwave radiation is our best HF shielding paint since 10 years! Suitable for Exterior AND Interior application on walls, ceiling and floors. Pure silicate paint based on potassium silicate. It does not contain toxic solvents, plasticisers, or any other toxic ingredients. Applied as a prime coat. Preferably covered with plastic bonded, water-based emulsion paints, facade paints or silicon resin paints. The paint offers almost constant attenuation, without preferred direction of polarization, for frequencies of up to 18 GHz. This means: perfect protection against future developments of the telecommunications industry in the higher Gigahertz range is guaranteed. Color:black. Coverage: 1 Liter 7.5 sq. Meters (81 sq. Feet);

HSF54 EMR Shielding Paint Features:

  • High water resistance and environmentally friendly.
  • Shielding attenuation: Attenuation of 38 dB (shielding effectiveness of 99.98 %) in one layer, attenuation of 45 dB (shielding effectiveness of 99.995 %) with two layers
  • Perfect corrosion resistance: does not contain metalic particles, no oxidizing, provides long term durability
  • Ingredients: Water, pure acylic binder, graphite, carbon black, additives, preservatives.

DUE TO NEW REGULATIONS ALL PAINT MUST BE GROUNDED

(Click here for our grounding products)

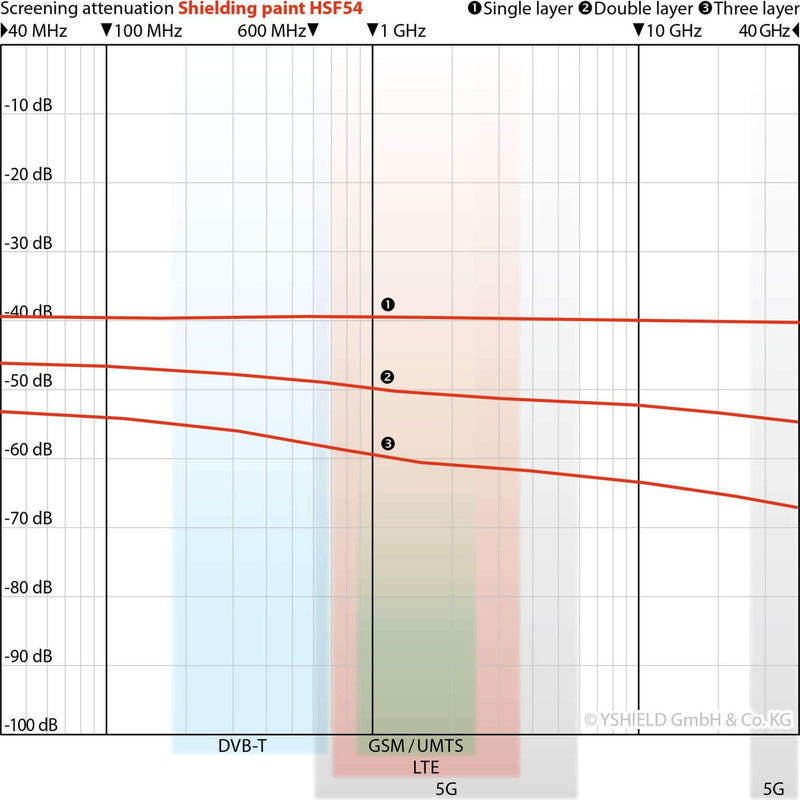

HSF54 EMF Paint Measurement Report - Screening Attenuation

EMF Shielding Paint YShield Technical datasheet
