Shieldex® Köln

*Note: To purchase a custom length of fabric, please add multiple quantities of the item to your cart. Each quantity counts a 1 linear foot in length. The amount ordered will be cut as a single piece unless specified otherwise.

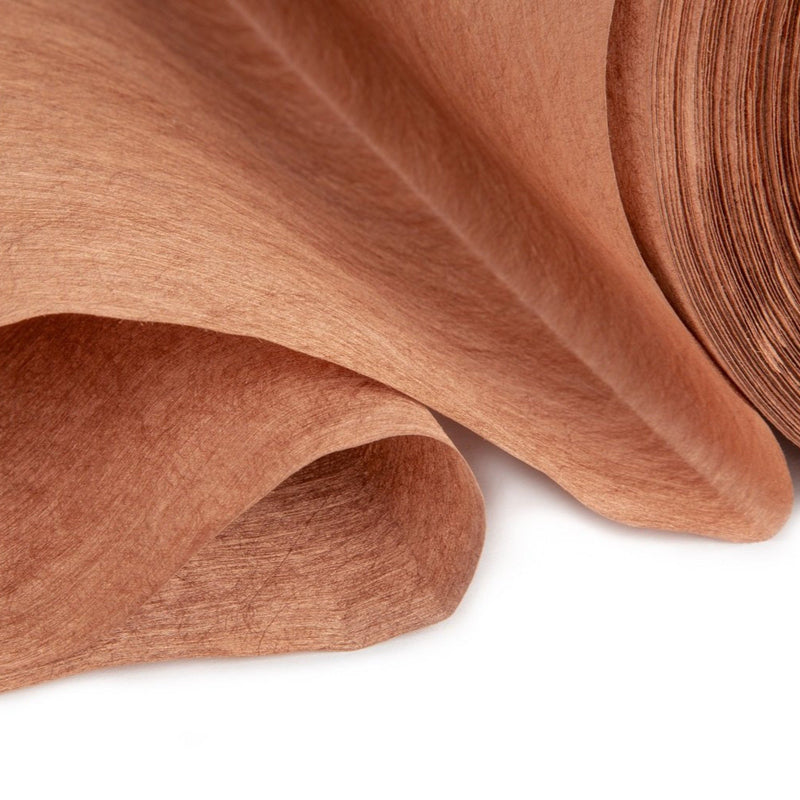

Shieldex® Köln is a conductive non-woven fabric for HF+LF shielding. Typical application is base material for EMI/RFI gaskets, EMI/RFI garments, conductive fabric tape and EMI/RFI cable shielding.

Description: Copper plated non-woven + protection coating

Surface Resistivity: ≤0.06 Ω/□
Attenuation: Average up to 80 dB from 300MHz to 10GHz
Temperature Range: -30 ̊ C to 90 ̊ C
Weight: 95g/m2 ± 22%
Total Thickness: 0.160mm ± 20%
Roll Width: 100cm ± 3cm

Compliance and Certification
DIN EN ISO 9001: 2015
REACH
RoHS
