HyperLOG 4025 - LogPer broadband EMC EMI antenna spans 400MHz to 2,5GHz

Powerful log periodic antenna with a wide frequency range from 400MHz to 2.5GHz including ISM434.

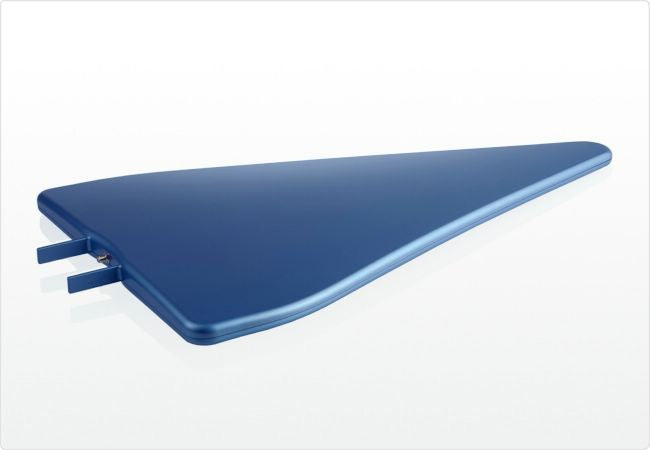

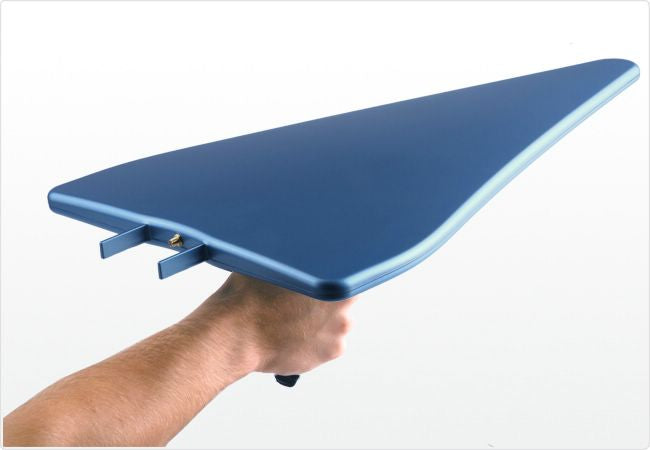

Every HyperLOG antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality GOLD COATING, a high-tech antenna-case (radome) which offers protection against mechanical damange and environmental influence, a top-quality integrated tripod connection and a SMA connector (18GHz version) with twist protection.

 Made in Germany:

All Aaronia antennas are developed, individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standard so that Aaronia can offer every customer a full 10 years warranty for all EMC antennas.

Exhaustive Calibration data:

All Aaronia antennas include a complete high resolution (10MHz steps!) calibration data set with up to 533 calibration points (on CD). This offers the ability to make a very accurate EMC measurement with any Spectrum Analyzer.

Included in delivery:

Each HyperLOG antenna will be shipped with many accessories in a high-value aluminium carrying case.

Technical data

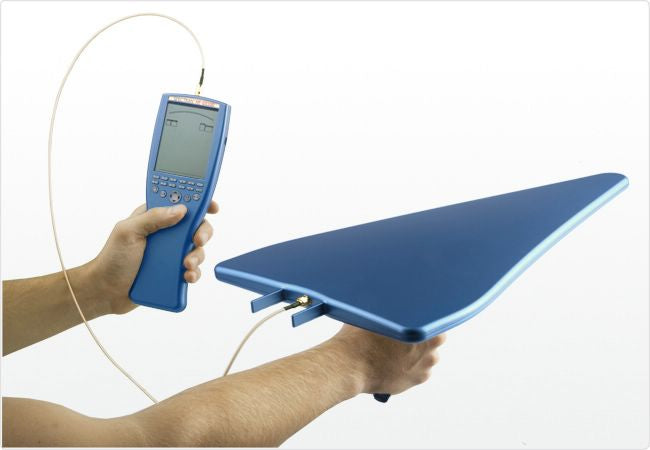

Compatible with any Spectrum Analyzer brand
Design: Directional Logarithmic-Periodic
Frequency range: 400MHz to 2,5GHz
Max. input power: 100W AM (400MHz)
Nominal impedance: 50 Ohm
VSWR: <1:2 (typ.)
Gain: 4dBi (typ.)
Antenna factor: See data sheet graph
RF connection: SMA (f) or N (see optional adapter)

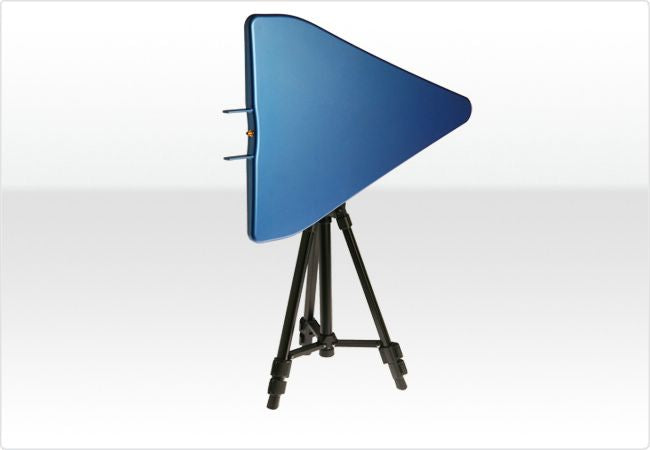

Tripod connection: 1/4"
Calibration points: 211 (10MHz-steps)
Dimensions (L/W/D):
(590x360x30) mm
Weight: 1200gr
Warranty: 10 years

Highlights:
Includes exhaustive calibration data (on CD)
Special designed radome for perfect antenna protection
Gold coating for stable performance
Wide bandwidth
Coverage of various mobile radio frequency ranges
Suitable for field-strength and EMC measurements due to high precision
Compact and sturdy design
Can be used in the lab and for open-field application
