UBBV1 Broadband Preamplifier 40dB

Original price $ 1,300.00 - Original price $ 1,300.00
Original price
$ 1,300.00
$ 1,300.00 - $ 1,300.00
Current price $ 1,300.00

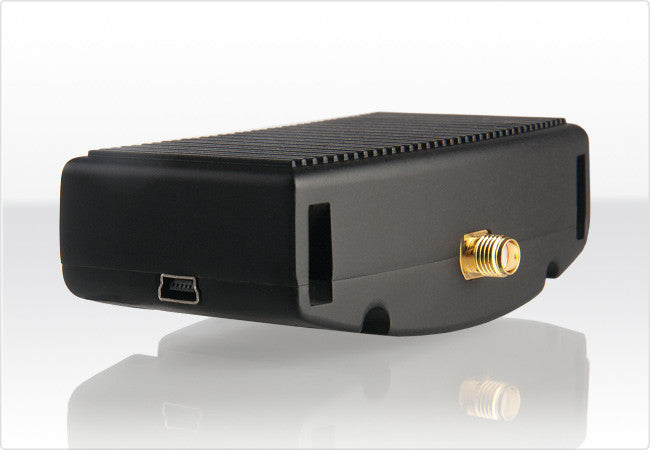

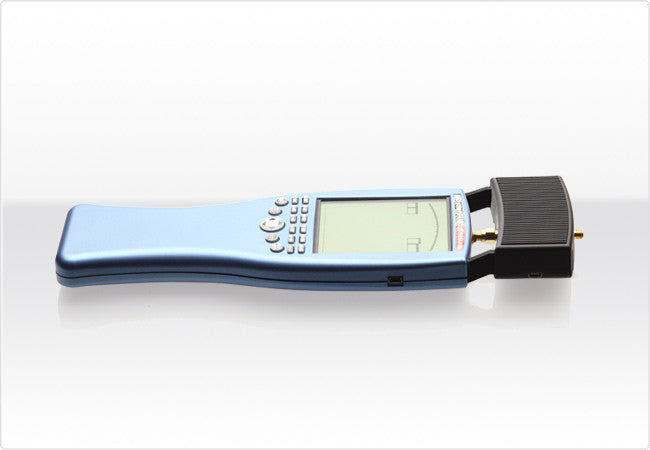

The UBBV1 fits directly to any Spectran unit and also works with any other brand of spectrum analyzers or antennas. It offers a vast frequency range and increases the sensitivity to 40dB. It runs with a battery or external power supply and comes with an integrated LiPo battery which lasts about 3.5 hours. This package also includes an international charger (110V/220V), adapter, thick aluminum housing (2mm), integrated calibration data on EEprom and a 10 year warranty. This versatile product is a must-have to go with any spectrum analyzer!

UBBV1 Features

  • Frequency range: 1MHz to 1GHz
  • Noise: 3.5dB (typ.)
  • Gain: 40dB (typ.)
  • Max. power at RF input: +15dBm
  • Max. power at RF output: +15dBm
  • Input: 50 Ohm SMA (f)
  • Output: 50 Ohm SMA (m)
  • Weight: 146 grams

*The item is ordered by demand, so expect a 2-3 week lead time from time of purchase.
