Woremor WM80 Self Adhesive Shielding Mesh

Save 10% Save 10%
Original price $ 19.99
Original price $ 19.99 - Original price $ 19.99
Original price $ 19.99
Current price $ 17.99
$ 17.99 - $ 17.99
Current price $ 17.99

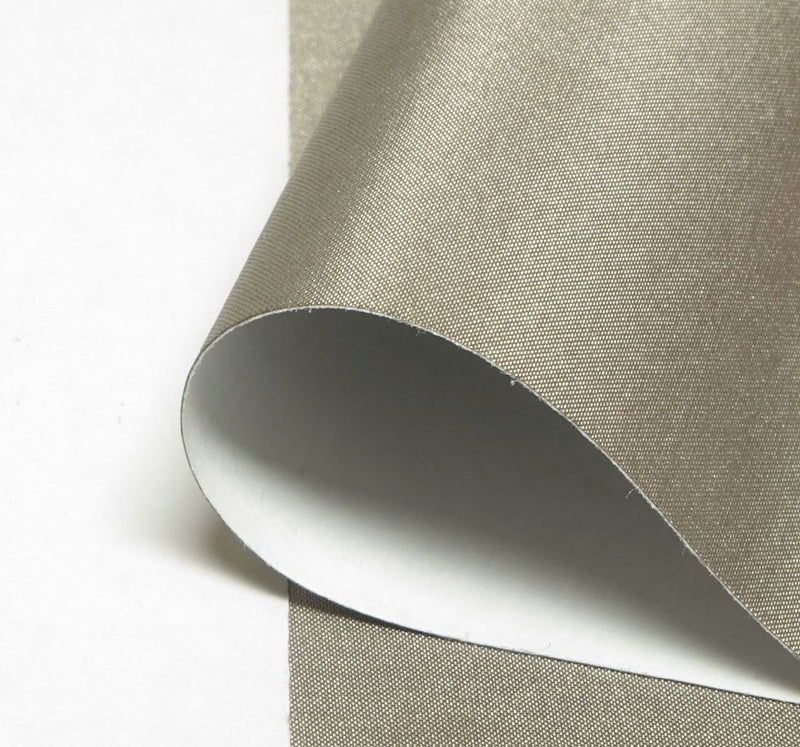

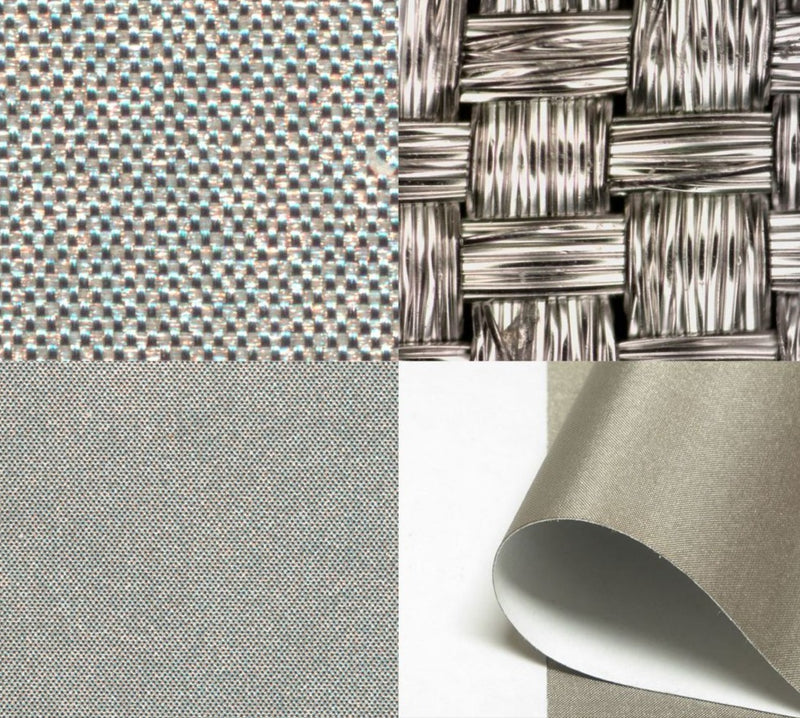

The WM80 is a compact woven metallized polyester netting for the large-scale shielding of high-frequency radiation (HF) and low-frequency electric fields (LF). Self-adhesive with electrically conductive glue.

*Note: To purchase a custom length of fabric, please add multiple quantities of the item to your cart. Each quantity counts a 1 linear foot in length. The amount ordered will be cut as a single piece unless specified otherwise.

For application on walls, ceilings and floors, the underground needs to be perfectly even. Wall paints, dry constructions boards, etc. need to be filled and sanded evenly. Afterwards you need to apply a layer of primer. The main use is shielding doors, window frames, boxes, cases, devices, machines and many other technical applications.

Technical data
Width: 2.95 ft
Length: By the foot
Attenuation: 75 dB
Self-adhesive with electrically conductive glue
Weight: 110 g/m² (without protective film), 220 g/m² (with protective film)
Material thickness: 0.095 mm (without protective film), 0.22 mm (with protective film)
Color: Gray / Brown
Tensile strength: 90 lbf
Materials: Polyester, copper, nickel, acrylics glue
Surface conductivity: 0.02 ohm (square resistance)

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Stephen Stobinski
Interesting Material

I cut a pattern that matches the back of my IPhone 16 and applied it. I did notice a drop in one bar in cellular and one bar in WiFi. There seems to be a clearer screen on emails and YouTube.
