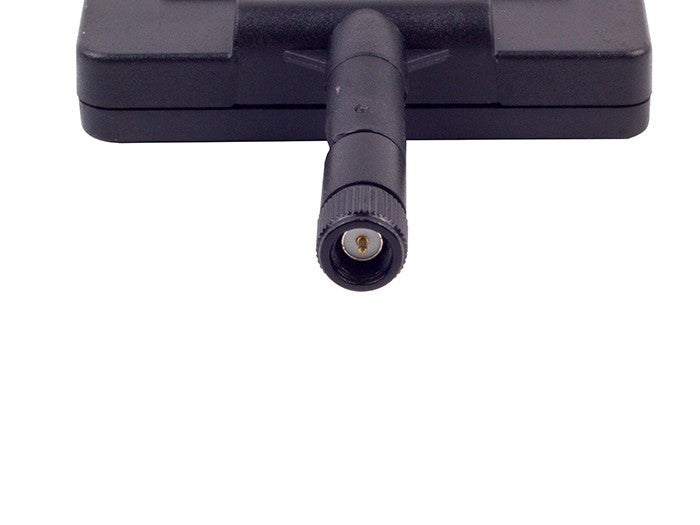

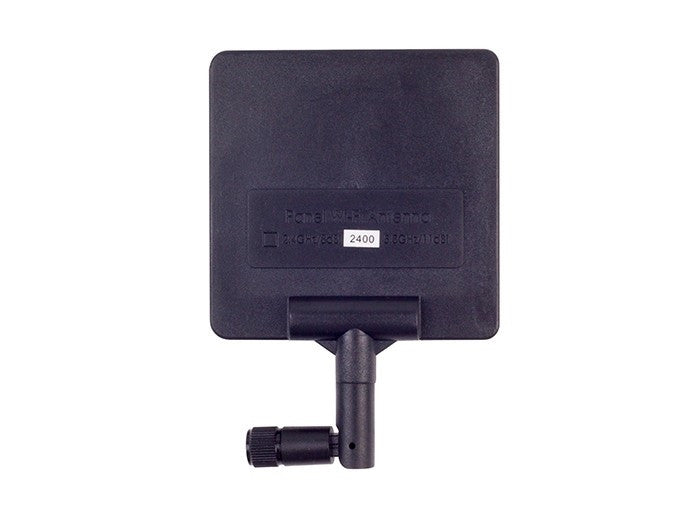

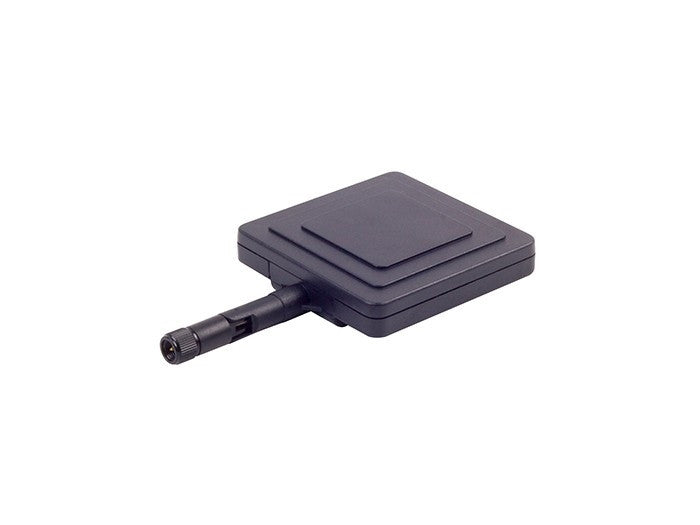

Directional Patch 2.4Ghz SMA Articulated Antenna

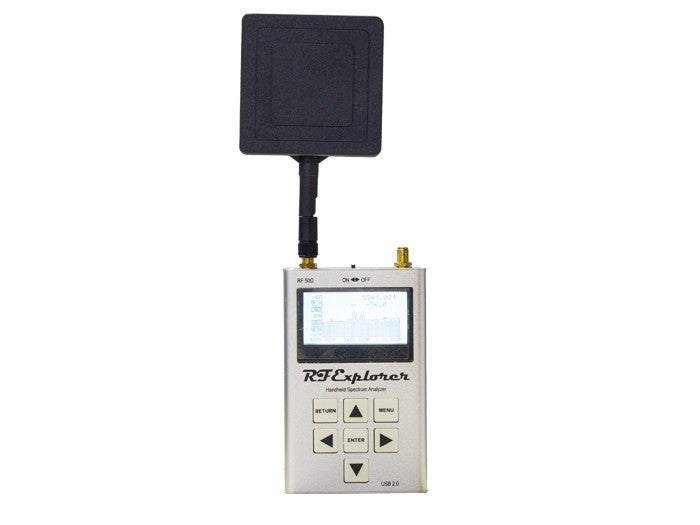

This antenna is suggested for high sensitivity detection of RF sources with RF Explorer Spectrum Analyzer, including distant transmitters, focus and orientate antennas or find nearby hidden bug devices. It is also perfect to find your lost drone or RC plane as long as still transmit valid signal.
Free returns on all eligible orders
You have 30 days to request a return. All custom and sale items are final sale. Most fabric & textile items are final sale. See return policy for more information.
Shipping Information
We offer free Standard and Expedited shipping on most orders over $50 USD (applies to Canada and USA only, exclusions may apply).
The EMR Guarantee
We stand behind every product we sell. If you have any issues with your order, our team will work with you to make it right. Whether you have product questions, need help with an order, or want guidance on choosing the right solution, you can count on us. Contact us anytime at info@emrss.com or +1 855 425 1657.
Alternatively, it can be used in the RF Explorer Signal Generator to produce a quality long distant RF source to determine path loss and adjust antenna orientation in a RF link.
Features
- Patch 2.4GHz perfect for WiFi, Wireless Video, Bluetooth, FPV
- SMA standard connector for direct fit in RF Explorer devices
Specifications
- Impedance: 50ohm
- Connector: SMA male
- Type: Patch articulated
- Characterized response: 2350-2450MHz
- Radiation lobe: 40 degrees
- VSWR: <2.0
- Polarization: vertical
- Gain: up to 8dBi
- Max power: 50W
- RoHS compliant
