RF Explorer Signal Generator Combo is a major improvement over the standard RF Explorer RFE6GEN Generator. The new generator includes important functions requested by our most demanding customers.
The new COMBO product includes harmonic filtering, high-performance amplifiers for higher output power, fine amplitude adjustment and support for frequencies as low as 100KHz covering up to 6GHz with no gaps.

Free returns on all eligible orders

You have 30 days to request a return. All custom and sale items are final sale. Most fabric & textile items are final sale. See return policy for more information.

Shipping Information

We offer free Standard and Expedited shipping on most orders over $50 USD (applies to Canada and USA only, exclusions may apply).

The EMR Guarantee

We stand behind every product we sell. If you have any issues with your order, our team will work with you to make it right. Whether you have product questions, need help with an order, or want guidance on choosing the right solution, you can count on us. Contact us anytime at info@emrss.com or +1 855 425 1657.

See below comparison of a 25MHz signal generated with new improved RF Explorer Signal Generator Combo (in red) and a signal generated with standard unfiltered RF Explorer RFE6GEN (blue). The new Generator Combo offers a perfect sinusoid filtered signal as opposed to the squarish unfiltered signal from RFE6GEN.

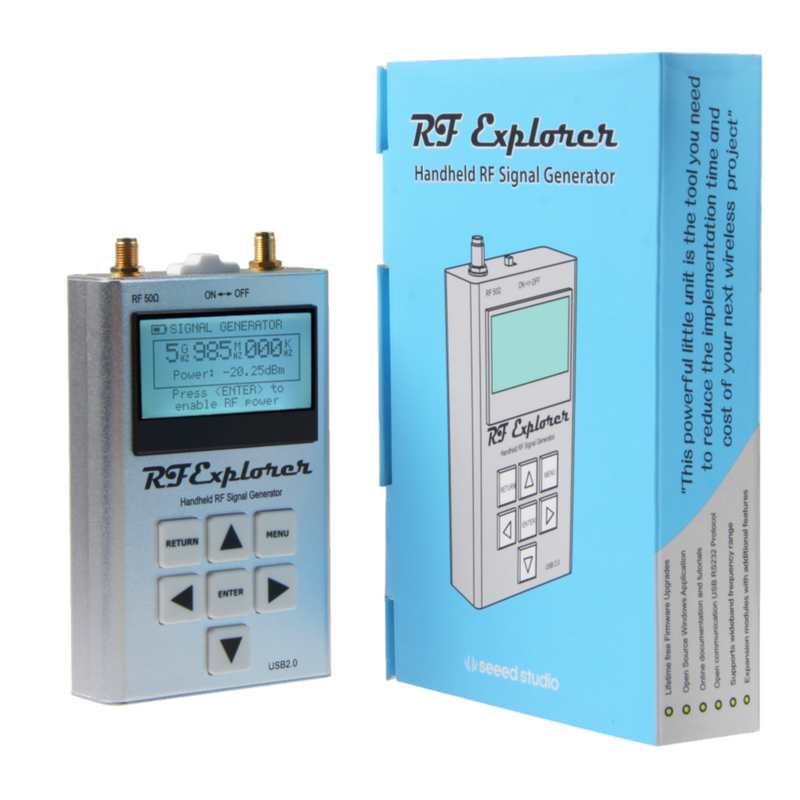

RF Explorer Signal Generator COMBO

Features

Pocket size and lightweight

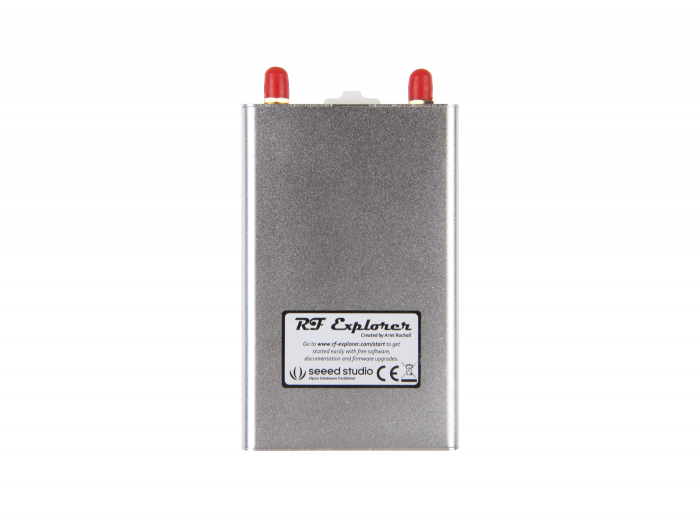

Solid aluminum metal case
Lifetime free firmware upgrades available, open to community requested features
High capacity Lipo for 10hs+ of continuous run, rechargeable by USB
RF Explorer for Windows free software for CW, Sweep and Tracking SNA control
Automation libraries available in Python and .NET, free USB API for any programming language
Wideband support, very stable CW signal output
Fine amplitude adjustment 0.25dB
High output power up to +18dBm
Optional recalibration procedure available upon request

Specification

Frequency range supported: 100KHz to 6000 MHz
Calibrated Amplitude range: -40 to +10dBm
Uncalibrated extended Amplitude range: -60 to +18dBm
Amplitude step/resolution: 0.25dB over calibrated range
Amplitude accuracy (typical): +/-2dB in most frequency and power ranges
Frequency step/resolution: 1KHz
Frequency stability: 0.5ppm
Temperature compensated (0-45C)
Backlight for great indoor visibility and high contrast LCD for outdoor visibility
Standard SMA 50 ohms connector
Spurs: Internal fractional PLL configuration in some cases create spurs typically -50dBc or less.
Harmonics: typical values range about -40dBc for 2nd harmonic, -50dBc for third and higher harmonics.
Switch measurement point speed < 10ms

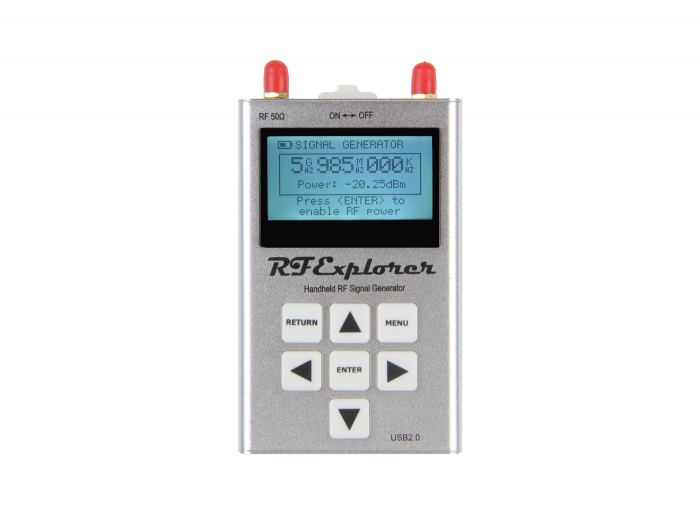

Graphics LCD 128x64 pixels, great visibility outdoors
PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits
Functional modes:

CW signal generator at any frequency in the range
Tracking generator functionality working together with RF Explorer Spectrum Analyzer when connected to the same PC
Sweep generator between any to frequencies in the range, with selectable step size and speed
