LATNEX® RF Signal Generator RF-SG6 (24 to 6000 MHz)

Name: LATNEX® RF Signal Generator RF-SG6 (24 to 6000 MHz)
Brand: LATNEX
SKU: TAM-1118
Price: 259.19 USD
Availability: InStock

$ 259.19 - $ 259.19

$ 259.19

$ 259.19 - $ 259.19

$ 259.19

Quantity

What our customers say

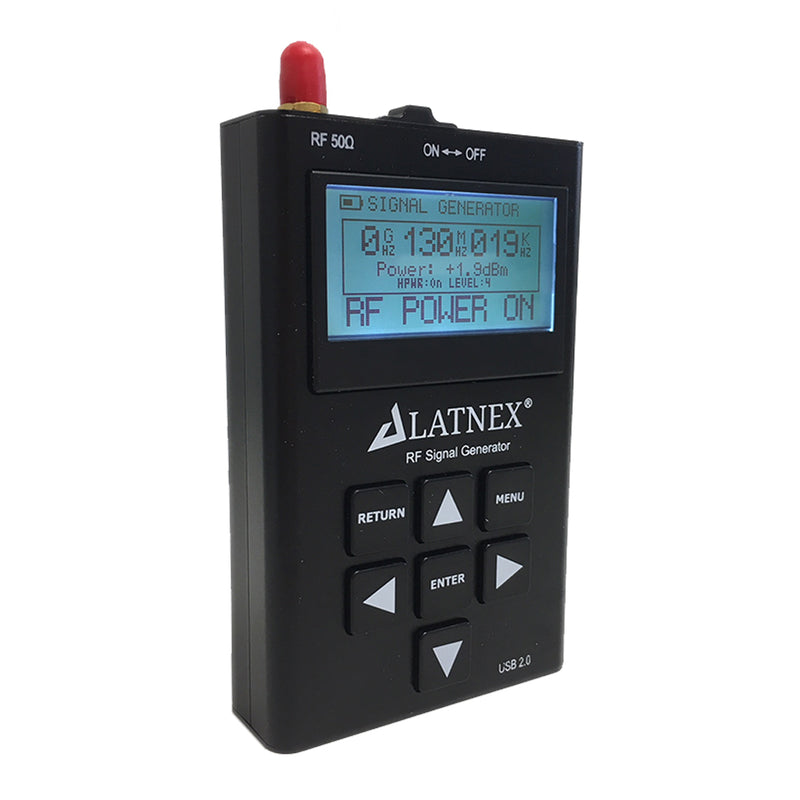

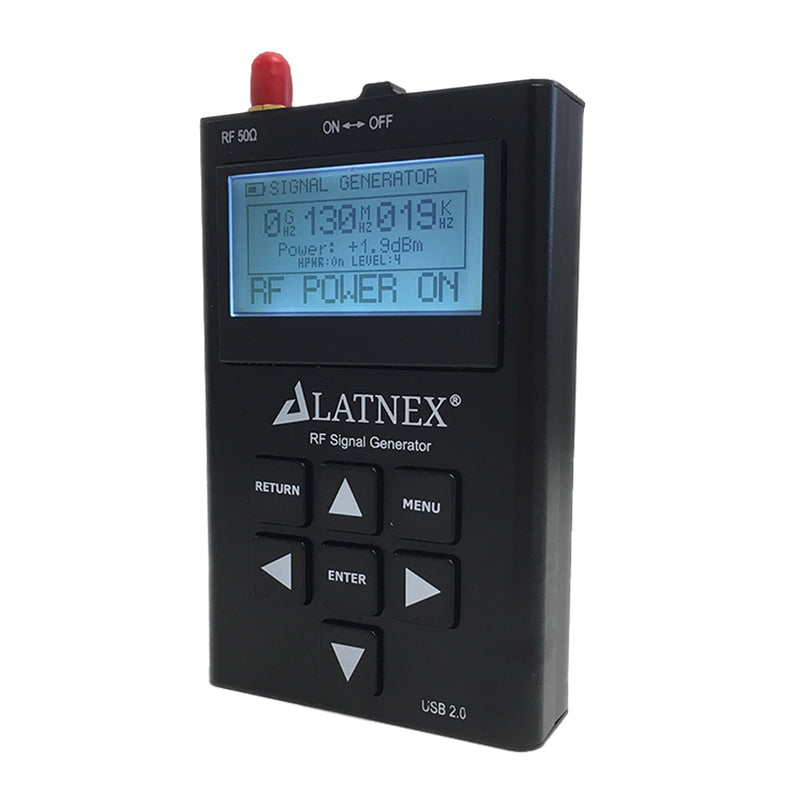

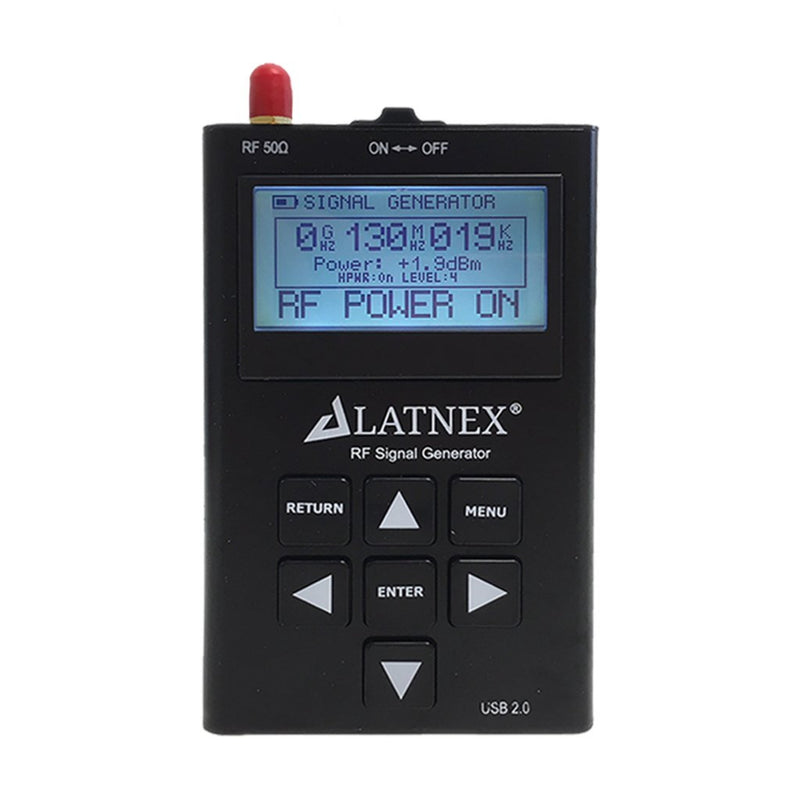

The LATNEX® RF Signal Generator RF-SG6 is a powerful, wideband fully programmable RF signal generator. It is the perfect companion for the LATNEX® Spectrum Analyzer product line.

As a standalone unit, RF-SG6 can generate CW and Sweep signals by selecting embedded menu options. When connected to a PC, it can be fully programmed with the Windows software tool.

Further more, the unit can work as a powerful Tracking Generator when used with LATNEX® Spectrum Analyzer connected to the same PC, offering full Scalar Network Analyzer (SNA) capabilities. The SNA feature allows full characterization of filters, amplifiers and any 2-port RF device.

Free returns on all eligible orders

You have 30 days to request a return. All custom and sale items are final sale. See return policy for more information.

Shipping Information

We offer free Standard and Expedited shipping on most orders over $50 USD (applies to Canada and USA only, exclusions may apply).

The EMR Guarantee

We stand behind every product we sell. If you have any issues with your order, our team will work with you to make it right. Whether you have product questions, need help with an order, or want guidance on choosing the right solution, you can count on us. Contact us anytime at info@emrss.com or +1 855 425 1657.

Features

Pocket size and light weight
Lifetime free firmware upgrades available, open to community requested features
High capacity Lipo for 16hs+ of continuous run, rechargeable by USB
Windows PC client Open Source
Can be extended with internal Expansion Modules for additional future band support and functionality
Wide band support

Frequency range supported: 24 to 6000 MHz
Frequency step/resolution: 1KHz

Frequency stability: 0.5ppm

Temperature compensated (0-45C)
Backlight for great indoor visibility
Standard SMA 50 ohms connector
Programmable Amplitude with included internal programmable attenuator:

-40dBm to -30dBm in 3dB steps
-10dBm to 0dBm in 3dB steps

Amplitude accuracy: +-0.5dB (normalized) or +-3dB (absolute)

Switch measurement point speed < 10ms
Graphics LCD 128x64 pixels, great visibility outdoors
PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits
Functional modes:

CW signal generator at any frequency in the range
Tracking generator functionality working together with RF Explorer when connected to the same PC

Sweep generator between any to frequencies in the range, with selectable step size and speed

Expansion:

Expansion port for future enhancements (higher RF power modes, additional frequency bands)
Size: 113x70x25 mm

Technical Details

Dimensions	0mm x 0mm x 0mm
Weight	G.W 251g
Battery	Lithium Cells / Batteries contained in equipment UN3481 - PI967

Part List

RF Explorer Signal Generator

1

ECCN/HTS

ECCN	3A002.d
HSCODE	9030401000

Certification

CE

This unit generates frequencies in the Amateur Radio bands that I use to test antennas.Appears to be spot on!

Good Handheld unit just not spot on accurate

I kept this unit because even though it is not spot on on the amplitude output it is within 1.5 dB.It is handy because it is frequency selective and covers the range I needed. Its a little funky to adjust to start with but once you get the hang of their convoluted menu options it is quick and simple.
