The Latnex SPA-7G is a powerful Spectrum Analyzer model, covering the full 6GHz range starting at 15MHz up to 6.1GHz with no gaps or limitations, and can be extended up to 7.5GHz with license RFELIC03 and RFELIC05.

This model replaces SPA-6G standard model, the new SLIM design offers an outstanding robust enclosure with strong metallic body and shiny varnished paint, a more convenient USB connector on the side and larger internal battery capacity.

Free returns on all eligible orders

You have 30 days to request a return. All custom and sale items are final sale. See return policy for more information.

Shipping Information

We offer free Standard and Expedited shipping on most orders over $50 USD (applies to Canada and USA only, exclusions may apply).

The EMR Guarantee

We stand behind every product we sell. If you have any issues with your order, our team will work with you to make it right. Whether you have product questions, need help with an order, or want guidance on choosing the right solution, you can count on us. Contact us anytime at info@emrss.com or +1 855 425 1657.

Features

Internal LNA amplifier and selectable attenuator for additional power range handling.
Low frequency support from 15MHz covering LF, MF, HF, VHF and UHF
High frequency support covering all range up to 6.1GHz with no gaps.

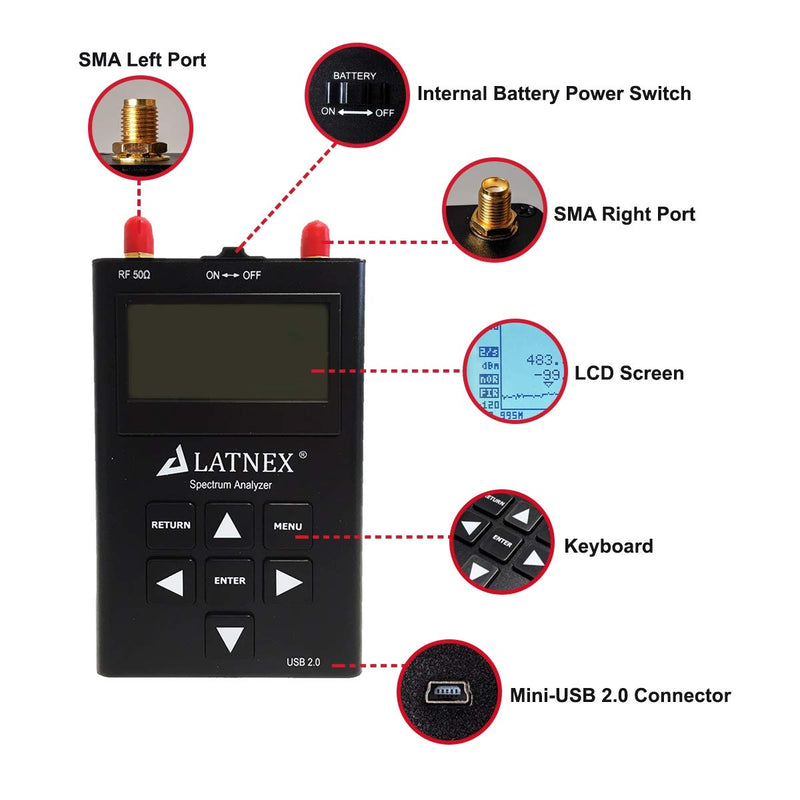

New HELP and SET buttons to improve user interface and PRESET configuration selection with 2-clicks
Ideal choice for all usable HAM bands.
Pocket size and light weight
Solid metal case with high quality varnished paint
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
High capacity internal Lithium battery for 10hs+ of continuous run, rechargeable by USB
Multi-platform Windows/Linux/MacOS Open Source software and API libraries

Technical Details

Frequency Band	15MHz – 6100MHz Upgrade Option available 7.5GHz
Frequency Span	2 – 960MHz in a single sweep Upgrade Option available 3GHz Span
Internal Selectable LNA Gain	25dB
Internal selectable Attenuators	30dB and 60dB
Supporting OS	Windows, Linux and MacOS X
Resolution Bandwidth (RBW)	automatic 2.6Khz to 600Khz
Frequency Resolution	1Khz
Frequency stability and accuracy (typical)	+-1.0ppm
Amplitude Stability and Accuracy (typical)	+-3dBm
Amplitude Resolution	0.5dBm
Dynamic Range	-125dBm to 10dBm
Absolute Max Input Power	+30dBm
Average Noise Level (typical LNA)	-125dBm
Wifi Analyzing Range	2.4GHz and 5GHz bands
Antenna Included	2.4/5GHz dual-band antenna UHF 400-900MHz rubber duck articulated antenna Wideband 144/433MHz dual band telescopic antenna
SMA	Standard 50 ohms connectors
Battery	Internal Lithium-Ion 1800mA/h rechargeable battery
Display	128x64 pixels LCD

Applications

RF Spectrum Analysis for FM, TV and DTV, ISM, RFID, GSM, 4G/5G, IoT, GPS, Bluetooth
WiFi analysis and fine tuning
Interference hunting
EMC pre-testing
RF device tuning (with Signal Generator working as Tracking SNA): See this link for more details

Part List

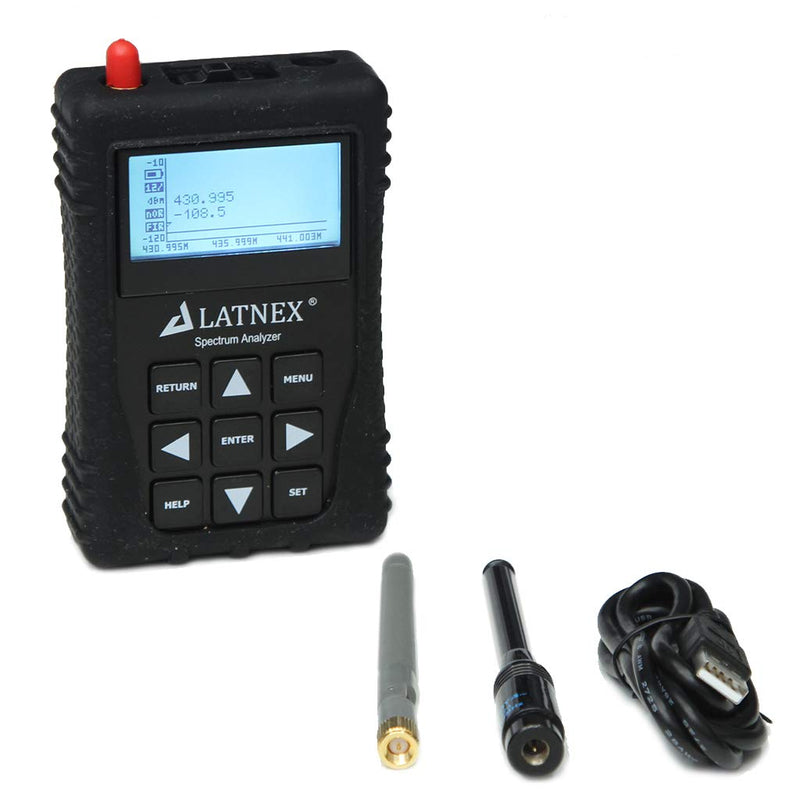

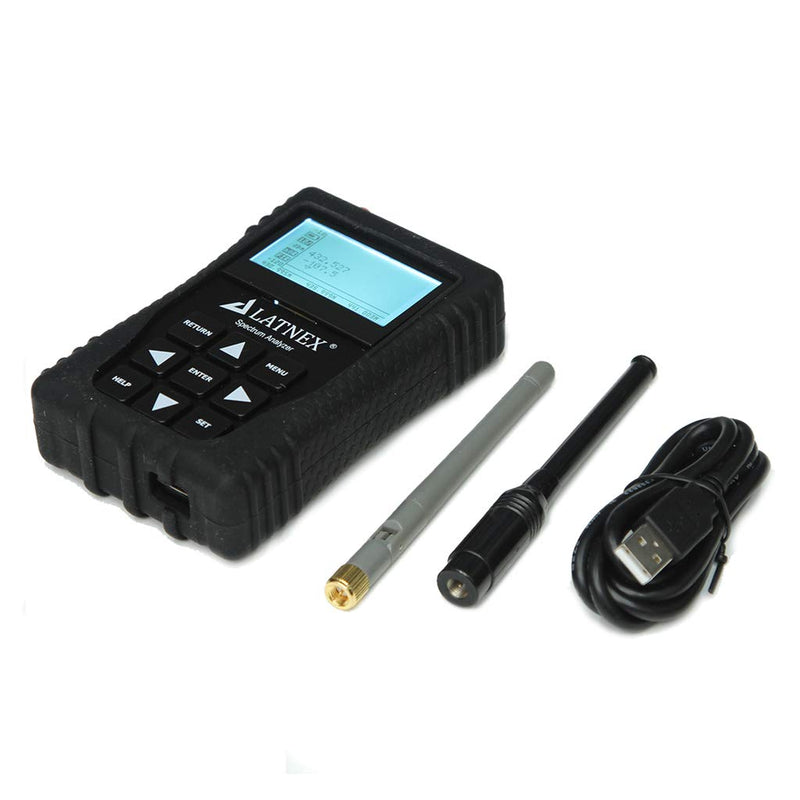

1 x Spectrum Analyzer
1 x Mini USB cable
1 x Dual band 144/430MHz Telescopic antenna
1 x UHF 400-900Mhz antenna
1 x Dual band 5/2.4GHz antenna

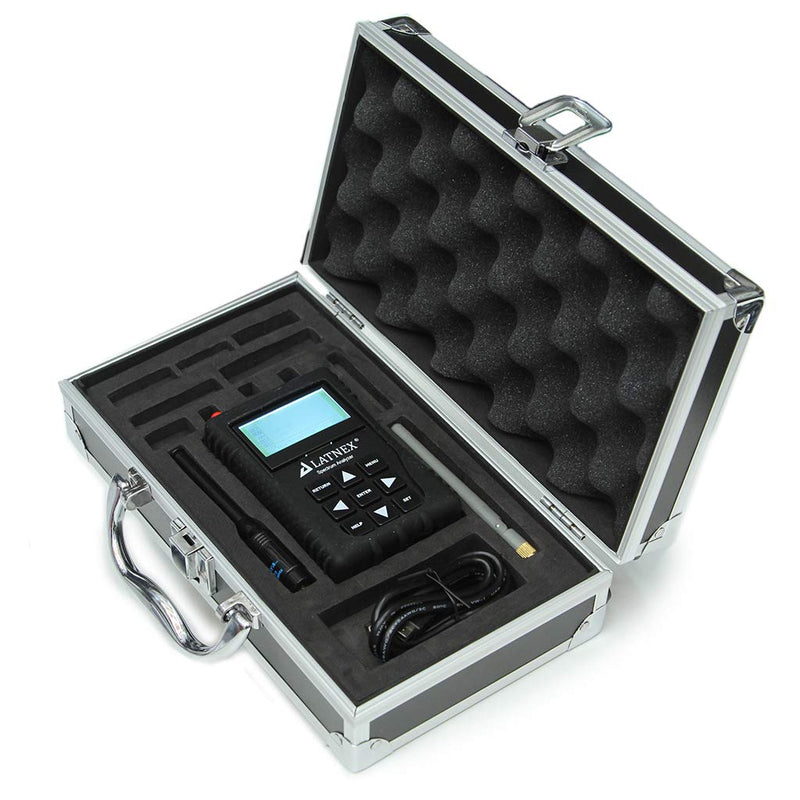

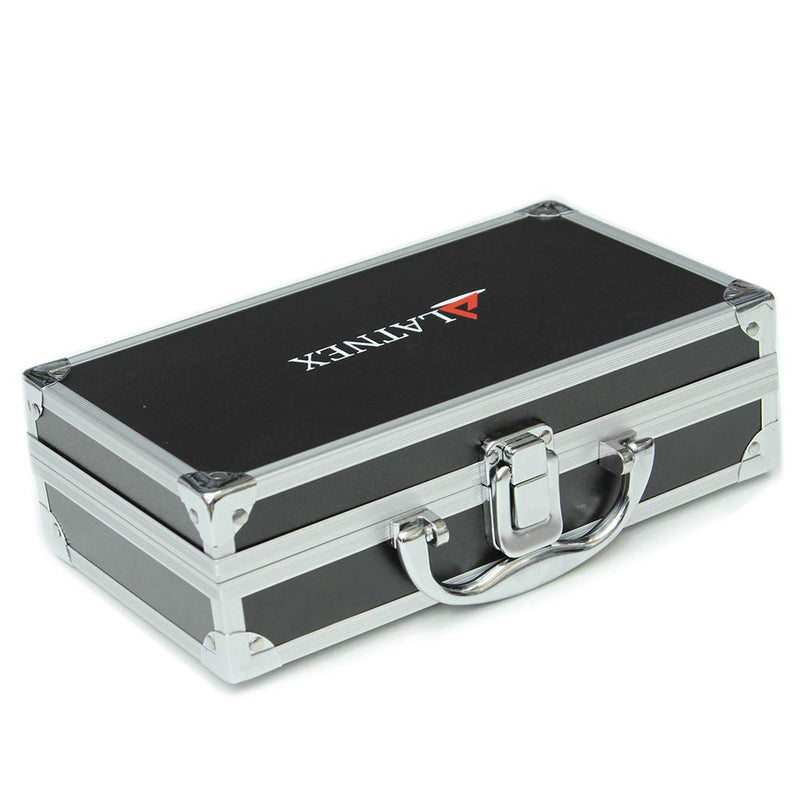

1 x Aluminium Case
