LATNEX® Spectrum Analyzer SPA-7GE (50KHz - 6.1GHz/7.5GHz with license)

LATNEX® Spectrum Analyzer SPA-7GE (50KHz - 6.1GHz/7.5GHz with license)

Name: LATNEX® Spectrum Analyzer SPA-7GE (50KHz - 6.1GHz/7.5GHz with license)
Brand: LATNEX
SKU: TAM-1671
Price: 702.80 USD
Availability: InStock

$ 538.80 - $ 702.80

$ 702.80

$ 538.80 - $ 702.80

$ 702.80

Quantity

What our customers say

The Latnex SPA-7GE is the most powerful Spectrum Analyzer model, covering the full 6GHz range starting at 50KHz up to 6.1GHz with no gaps or limitations, and can be extended up to 7.5GHz with license RFELIC03 and RFELIC05.

Free returns on all eligible orders

You have 30 days to request a return. All custom and sale items are final sale. See return policy for more information.

Shipping Information

We offer free Standard and Expedited shipping on most orders over $50 USD (applies to Canada and USA only, exclusions may apply).

The EMR Guarantee

We stand behind every product we sell. If you have any issues with your order, our team will work with you to make it right. Whether you have product questions, need help with an order, or want guidance on choosing the right solution, you can count on us. Contact us anytime at info@emrss.com or +1 855 425 1657.

Features

Internal LNA amplifier and selectable attenuator for additional power range handling.
Low-frequency support from 50KHz covering LF, MF, HF, VHF, and UHF
High-frequency support covering all ranges up to 6.1GHz with no gaps.
New HELP and SET buttons to improve user interface and PRESET configuration selection with 2-clicks
Ideal choice for all usable HAM bands.
Pocket size and lightweight
Solid metal case with high-quality varnished paint
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
High capacity internal Lithium battery for 10hs+ of continuous run, rechargeable by USB
Multi-platform Windows/Linux/MacOS Open Source software and API libraries

Technical Details

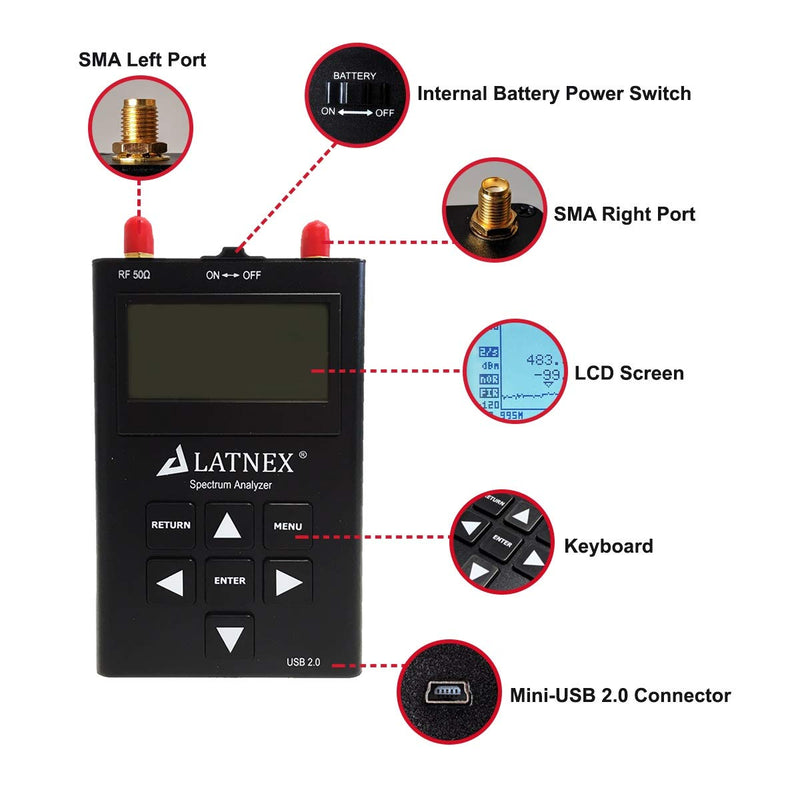

Frequency Band	Left connector: 0.05 – 960MHz Right connector: 240 – 6100MHz
Frequency Span	2 – 960MHz in a single sweep
Internal Selectable LNA Gain	25dB
Internal selectable Attenuators	30dB and 60dB
Supporting OS	Windows, Linux and MacOS X
Resolution Bandwidth (RBW)	automatic 2.6Khz to 600Khz
Frequency Resolution	1Khz
Amplitude Stability and Accuracy (typical)	+-3dBm
Amplitude Resolution	0.5dBm
Dynamic Range	-125dBm to 10dBm
Absolute Max Input Power	+30dBm
Average Noise Level (typical LNA)	-125dBm
Wifi Analyzing Range	2.4GHz and 5GHz bands
Antenna Included	2.4/5GHz dual-band antenna UHF 400-900MHz rubber duck articulated antenna Wideband 144/433MHz dual band telescopic antenna
SMA	Standard 50 ohms connectors
Battery	Internal Lithium-Ion 1800mA/h rechargeable battery

Applications

RF Spectrum Analysis for FM, TV and DTV, ISM, RFID, GSM, 4G/5G, IoT, GPS, Bluetooth
WiFi analysis and fine-tuning
Interference hunting
EMC pre-testing
RF device tuning (with Signal Generator working as Tracking SNA): Check this link for more details

Part List

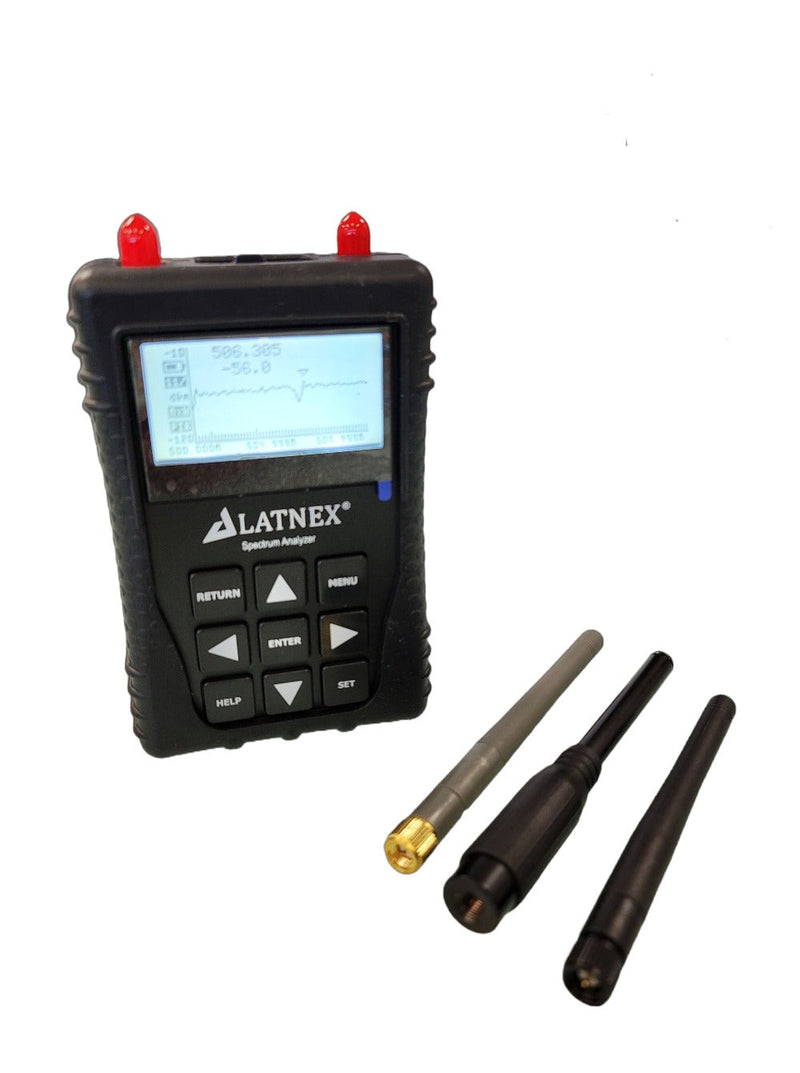

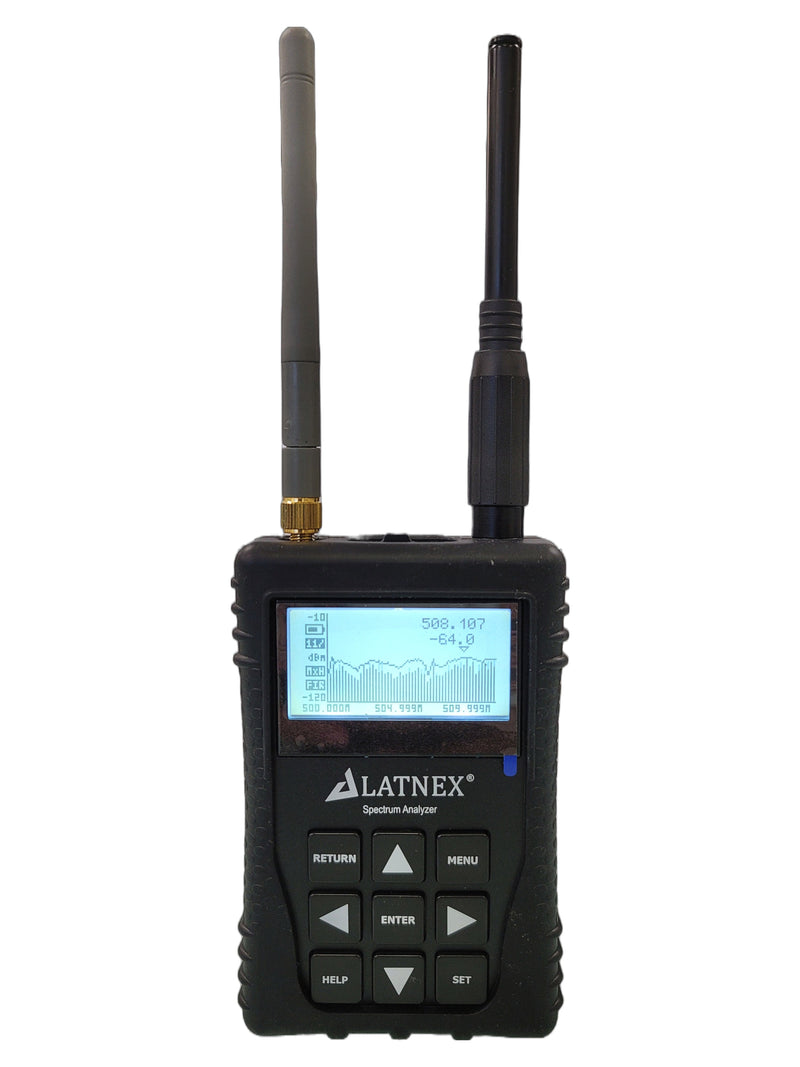

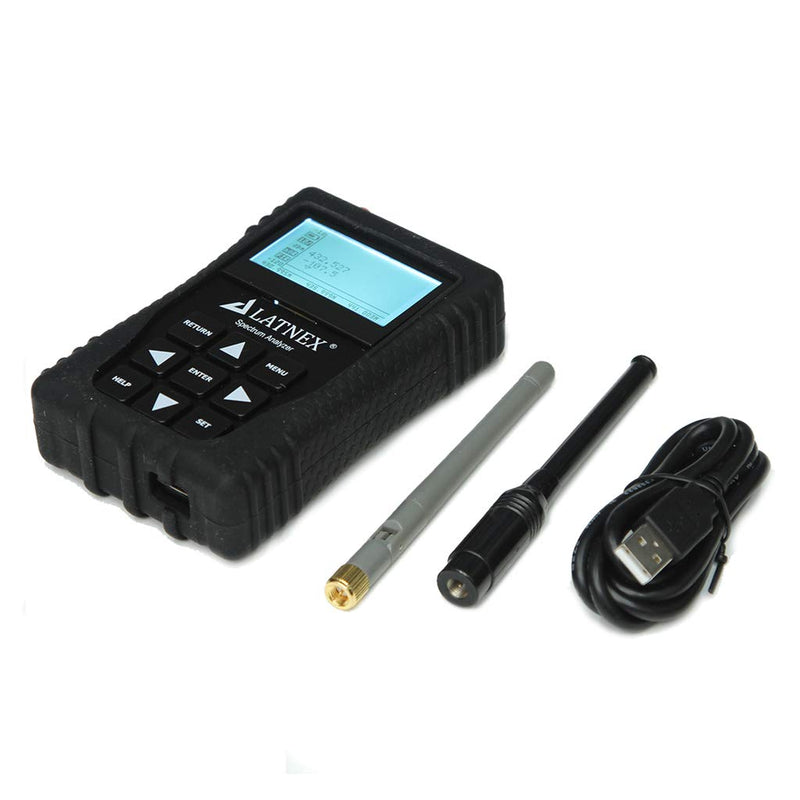

1 x Spectrum Analyzer
1 x Mini USB cable
1 x Dual band 144/430MHz Telescopic antenna
1 x UHF 400-900Mhz antenna
1 x Dual band 5/2.4GHz antenna

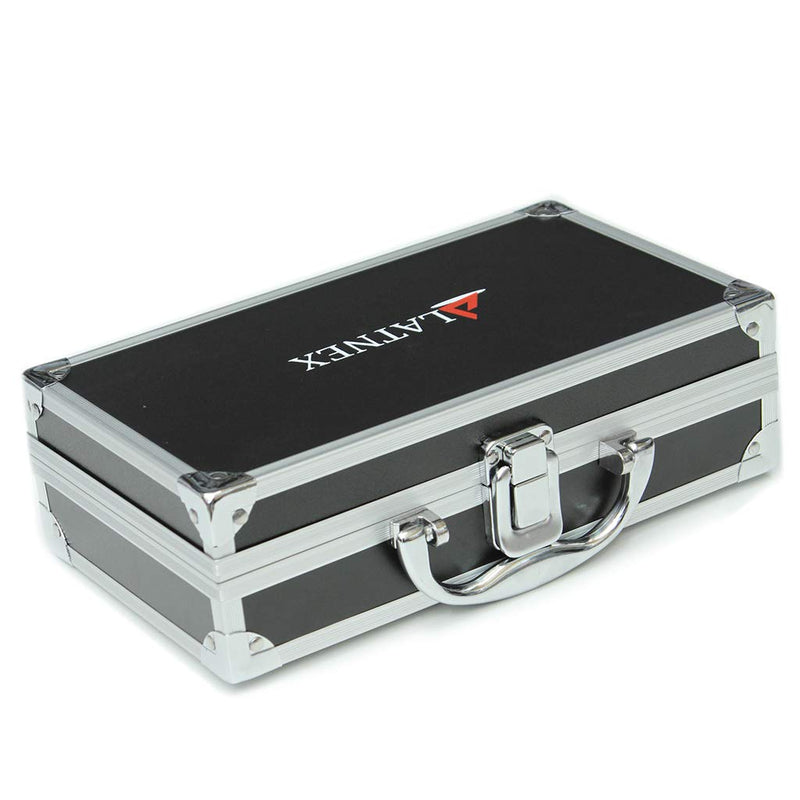

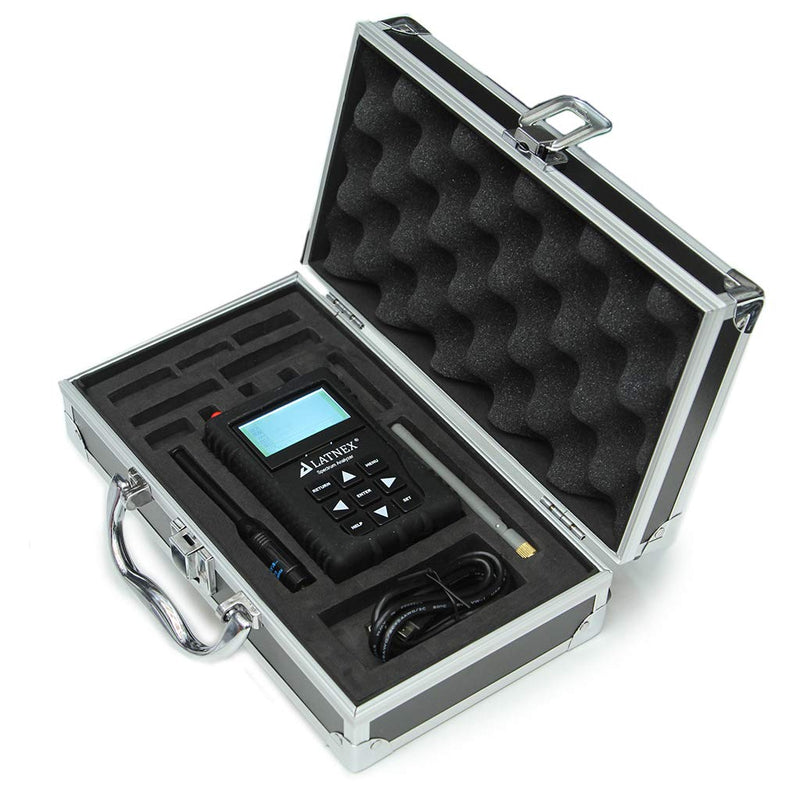

1 x Aluminium Case
