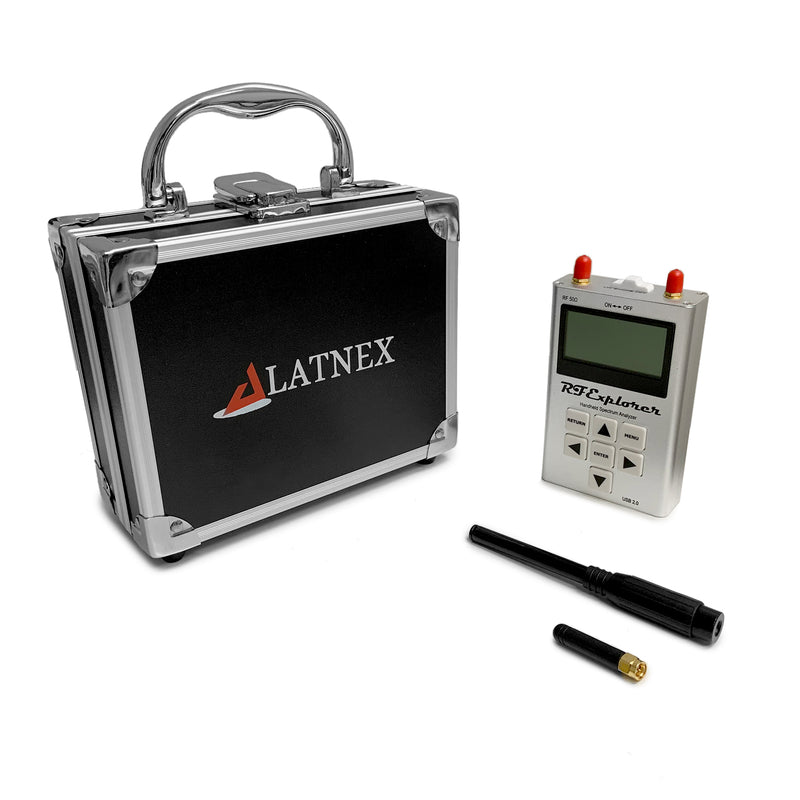

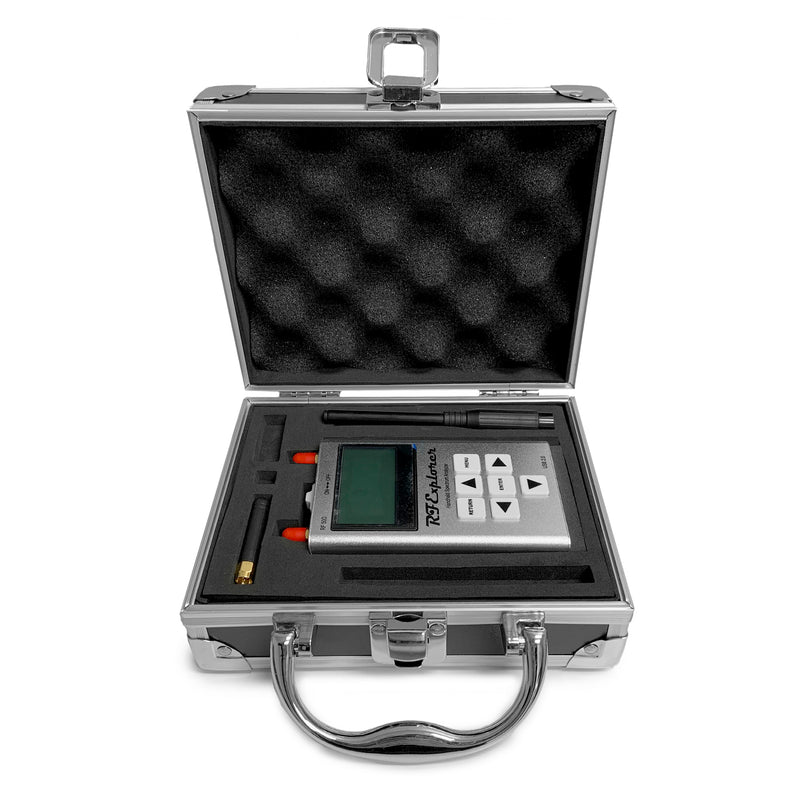

RF Explorer - 3G Combo with Aluminum Case

RF Explorer Handheld Spectrum Analyzer - 3G Combo

RF Explorer - 3G Combo

Name: RF Explorer - 3G Combo
Brand: EMR Shielding Solutions
SKU: TAM-1182
Price: 346.80 USD
Availability: InStock

$ 346.80 - $ 346.80

$ 346.80

$ 346.80 - $ 346.80

$ 346.80

Quantity

What our customers say

It has been designed to be used equally well outdoor and indoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.

This model includes a WSUB1G baseline unit plus an RFEMWSUB3G Expansion Module conveniently assembled and tested. It comes with two SMA connectors and two antennas,a nice Nagoya NA-773 wideband telescopic antenna for all Sub-GHz frequencies and a whip helical for 2.4GHz band. Additional, specific band antennas may be needed to cover efficiently some of the frequencies supported.

Free returns on all eligible orders

You have 30 days to request a return. All custom and sale items are final sale. See return policy for more information.

Shipping Information

We offer free Standard and Expedited shipping on most orders over $50 USD (applies to Canada and USA only, exclusions may apply).

The EMR Guarantee

We stand behind every product we sell. If you have any issues with your order, our team will work with you to make it right. Whether you have product questions, need help with an order, or want guidance on choosing the right solution, you can count on us. Contact us anytime at info@emrss.com or +1 855 425 1657.

The combination of these two models offer the wide band coverage of the WSUB3G module, together with the highest sensitivity and quick response of the WSUB1G model for the popular sub-1GHz frequencies.

Features

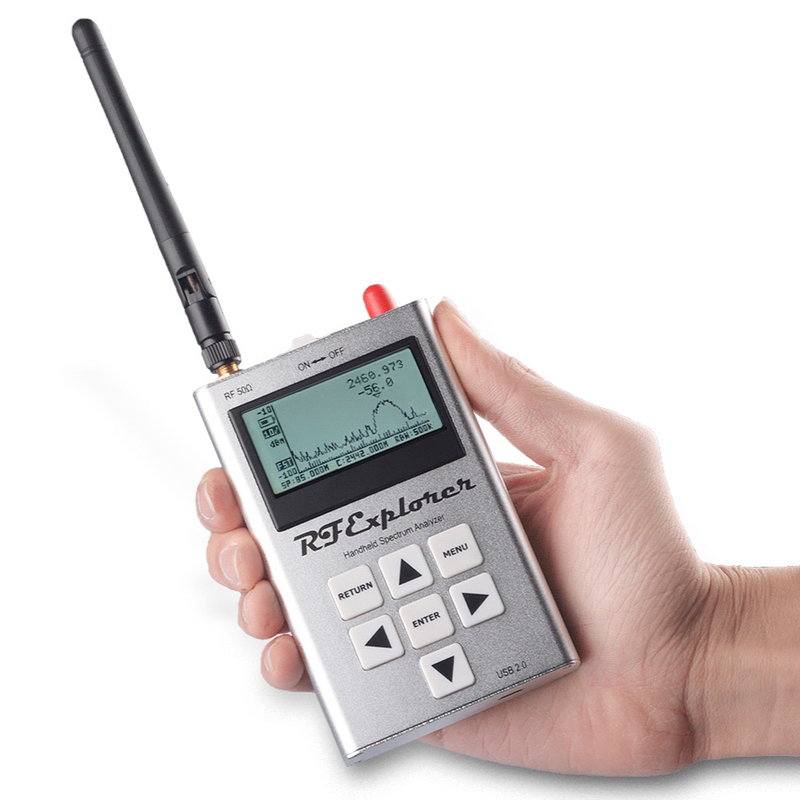

Pocket size and light weight
Solid aluminum metal case
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
Lifetime free firmware upgrades available, open to community requested features
High capacity Lipo for 16hs+ of continuous run, rechargeable by USB

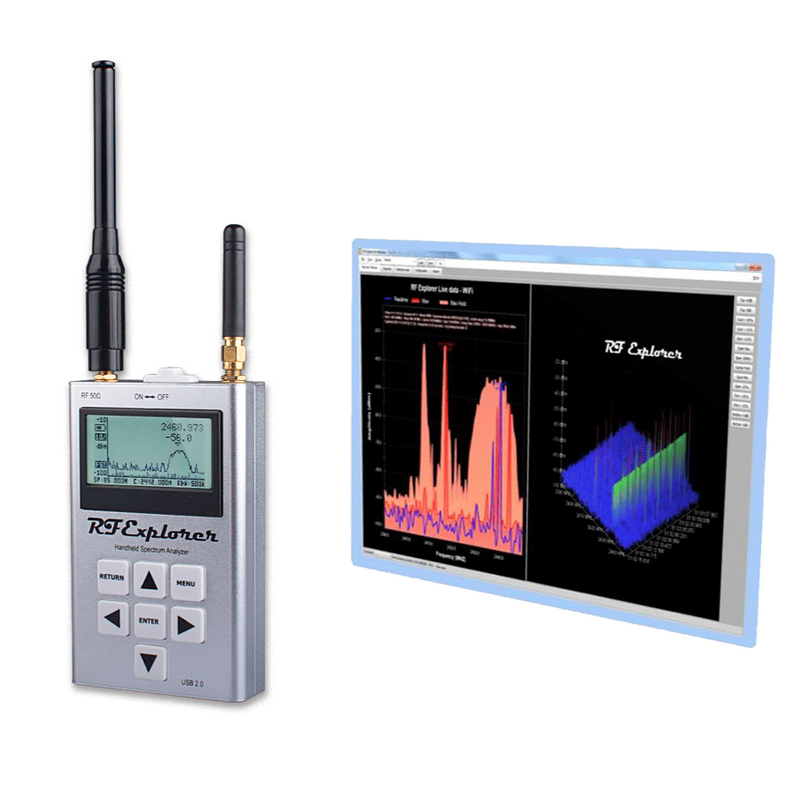

Windows PC client Open Source
Can be extended with internal Expansion Modules for additional band and functionality
Wide band coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz. This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.
Firmware: RF Explorer 3G Combo is delivered with upgraded firmware v1.09. Note some of the features and operation accuracy will be improved in upcoming lifetime free firmware revisions.

Specifications

Frequency band: 15-2700 MHz
Frequency span: 112KHz - 600MHz
Graphics LCD 128x64 pixels, great visibility outdoors
PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits
Backlight for great indoor visibility

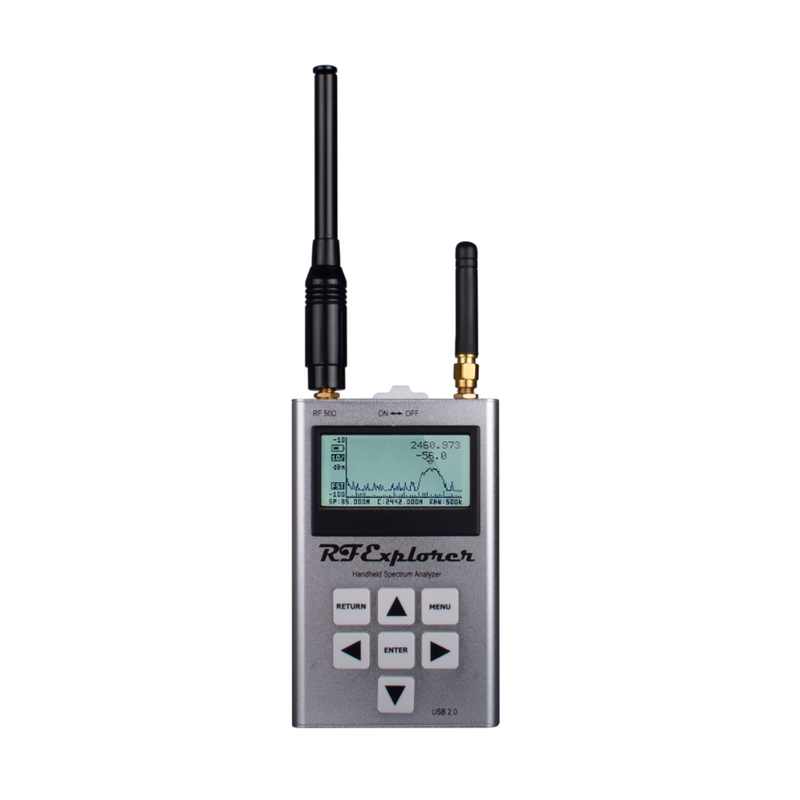

2 standard SMA 50 ohms connector, one for Sub-GHz wideband Nagoya NA-773 telescopic antenna included and another 2.4Ghzone for 15-2700 MHz band with helical antenna included.
Amplitude resolution: 0.5dBm
Dynamic range:
- Left SMA port (WSUB1G): -115dBm to 0dBm
- Right SMA port (WSUB3G): -110dBm to -10dBm
Absolute Max input power:
- Left SMA port (WSUB1G): +5dBm
- Right SMA port (WSUB3G): +30dBm
Average noise level (typical): -110dBm
Frequency stability and accuracy (typical): +-10ppm
Amplitude stability and accuracy (typical): +-6dBm
Frequency resolution: 1Khz
Resolution bandwidth (RBW): automatic 3Khz to 600Khz
Weight: 185g
Size: 113x70x25 mm
