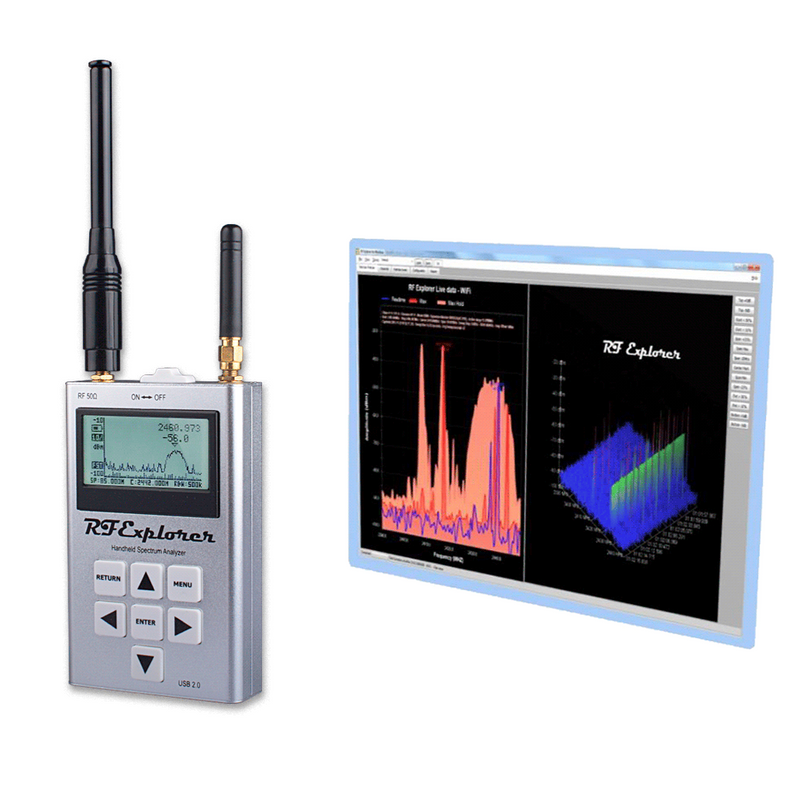

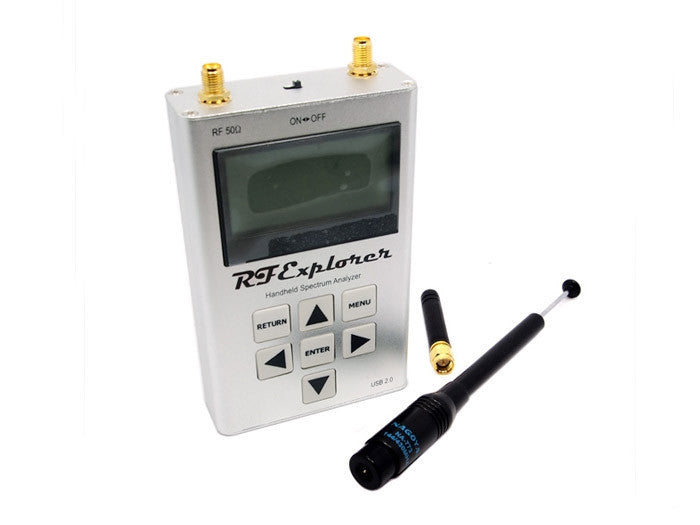

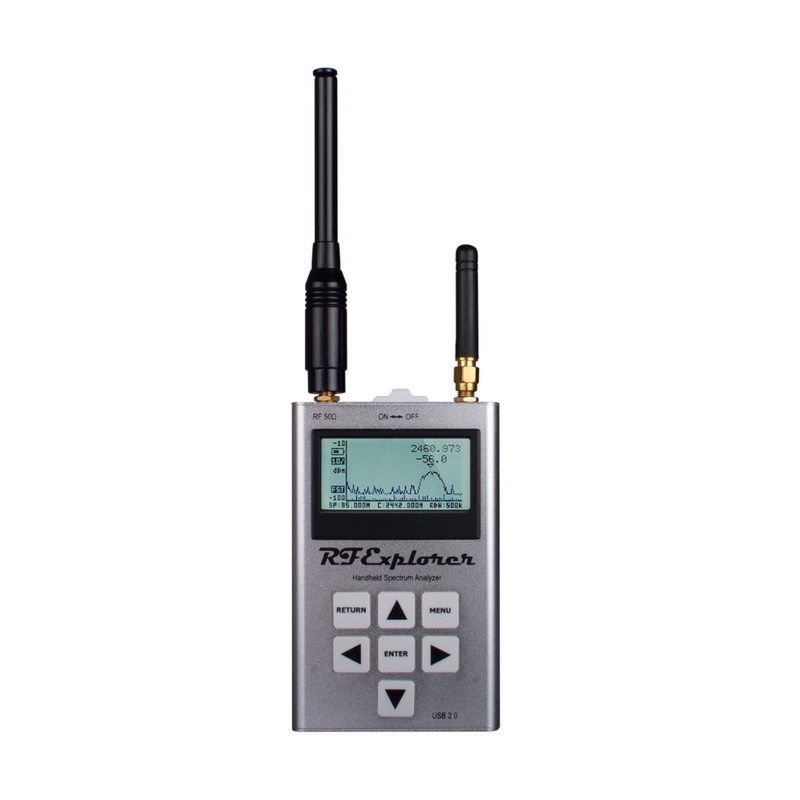

RF Explorer 6G Combo

Save 3% Save 3%
Original price $ 399.00
Original price $ 399.00 - Original price $ 399.00
Original price $ 399.00
Current price $ 389.00
$ 389.00 - $ 389.00
Current price $ 389.00

What our customers say

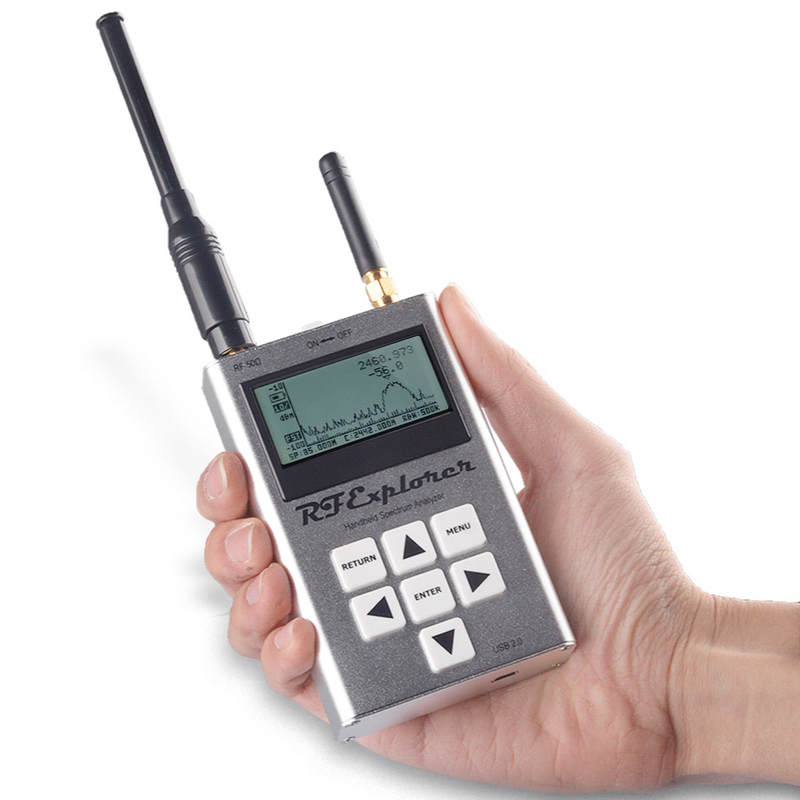

Pocket size and light weight
Solid aluminum metal case

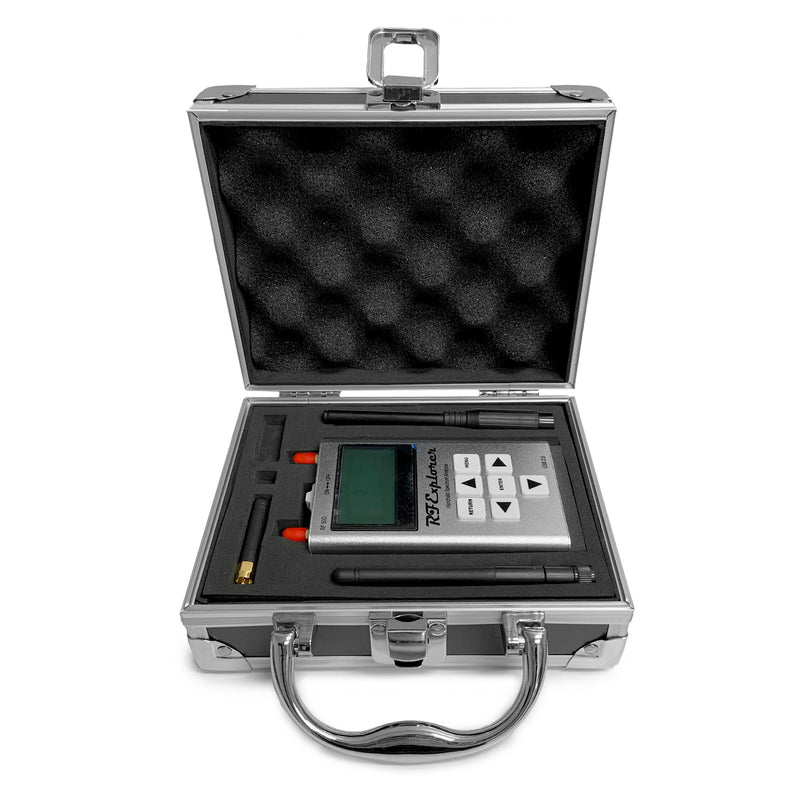

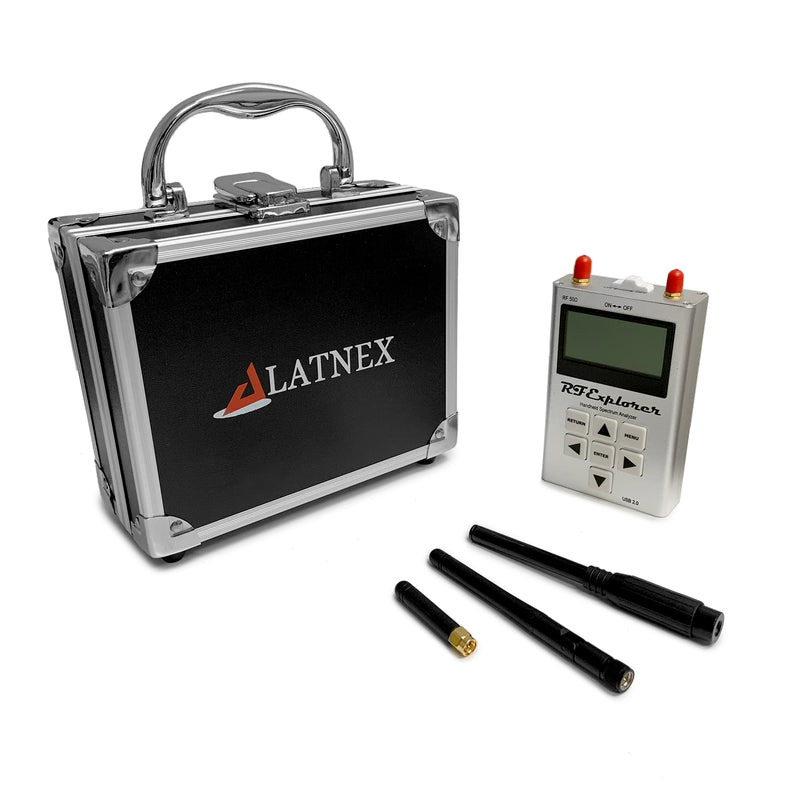

Includes a transport EVA carry case for RF Explorer
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
Lifetime free firmware upgrades available, open to community requested features
High capacity Lipo for 16hs+ of continuous run, rechargeable by USB
Windows PC client Open Source
Wide band coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz, as well as 4.85-6.1GHz. This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.
Firmware: RF Explorer 6G Combo is delivered with upgraded firmware v1.12. Note some of the features and operation accuracy will be improved in upcoming lifetime free firmware revisions.

Frequency band: 15-2700 MHz and 4850-6100MHz

Free returns on all eligible orders

You have 30 days to request a return. All custom and sale items are final sale. See return policy for more information.

Shipping Information

We offer free Standard and Expedited shipping on most orders over $50 USD (applies to Canada and USA only, exclusions may apply).

The EMR Guarantee

We stand behind every product we sell. If you have any issues with your order, our team will work with you to make it right. Whether you have product questions, need help with an order, or want guidance on choosing the right solution, you can count on us. Contact us anytime at info@emrss.com or +1 855 425 1657.

Frequency span:

Left SMA port (6G): 2-600Mhz
Right SMA port (WSUB3G): 112KHz - 600MHz

Graphics LCD 128x64 pixels, great visibility outdoors

PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits

Backlight for great indoor visibility

2 standard SMA 50 ohms Spectrum Analyzer connectors:

Left SMA port (6G): 4850-6100MHz
Right SMA port (WSUB3G): 15-2700 MHz

Amplitude resolution: 0.5dBm

Dynamic range:

Left SMA port (6G): -105dBm to -15dBm
Right SMA port (WSUB3G): -110dBm to -10dBm

Absolute Max input power:

Left SMA port (6G): +25dBm
Right SMA port (WSUB3G): +30dBm

Average noise level (typical): -105dBm

Frequency stability and accuracy (typical):

Left SMA port (6G): +-0.5ppm
Right SMA port (WSUB3G): +-10ppm

Amplitude stability and accuracy (typical):

Left SMA port (6G): +-3dBm
Right SMA port (WSUB3G): +-6dBm

Frequency resolution: 1Khz ?

Resolution bandwidth (RBW):

Left SMA port (6G): automatic 58Khz to 812Khz
Right SMA port (WSUB3G): automatic 3Khz to 600Khz

Size: 113x70x25 mm



RF Explorer User Manual
