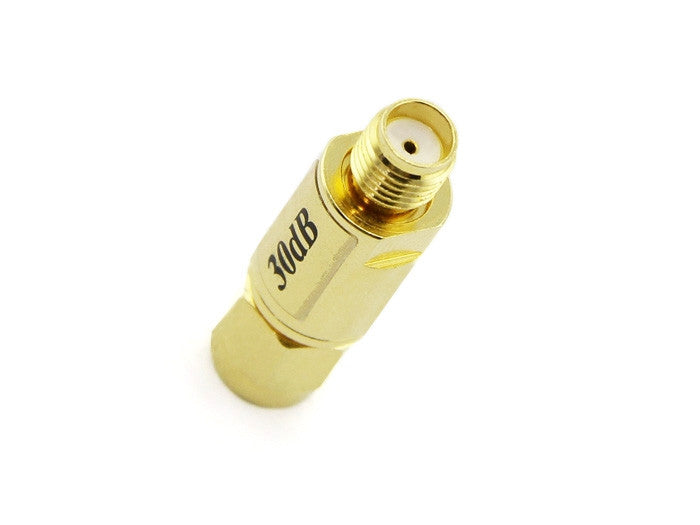

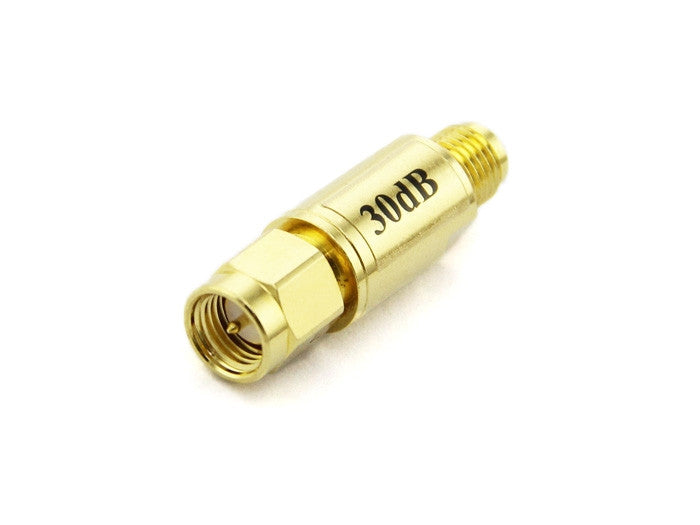

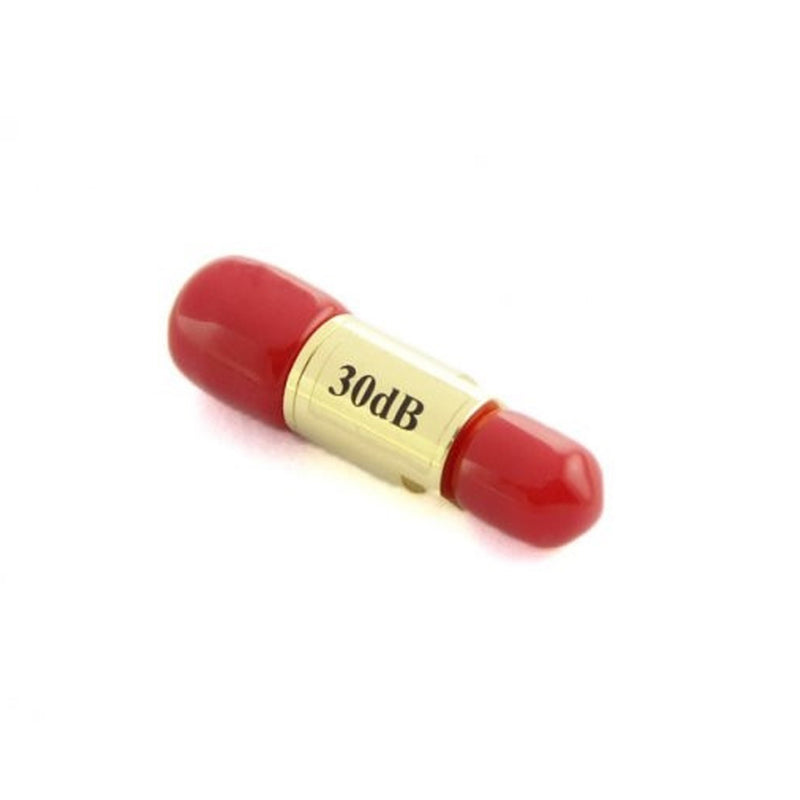

RF Explorer 6GHz 2W SMA Attenuator 30db

Original price $ 28.69 - Original price $ 28.69
Original price
$ 28.69
$ 28.69 - $ 28.69
Current price $ 28.69

What our customers say

SMA attenuators are used to reduce the input power, and therefore enable RF Explorer to measure stronger signals. It is also used to protect the input SMA port of RF Explorer when unknown strong signals may be in the environment, so you can use this attenuator on demand. You can easily unplug the attenuator when measurement is for weak signals.

You can also daisy chain multiple attenuators to get additional values. For instance a 10 dB + 30dB attenuators connected in series will give you 40dB total attenuation.

Free returns on all eligible orders

You have 30 days to request a return. All custom and sale items are final sale. See return policy for more information.

Shipping Information

We offer free Standard and Expedited shipping on most orders over $50 USD (applies to Canada and USA only, exclusions may apply).

The EMR Guarantee

We stand behind every product we sell. If you have any issues with your order, our team will work with you to make it right. Whether you have product questions, need help with an order, or want guidance on choosing the right solution, you can count on us. Contact us anytime at info@emrss.com or +1 855 425 1657.

RF Explorer firmware includes an “Offset DB” feature in the Attenuator Menu, you should specify (+030) dB in this setting when the attenuator is connected in order to get correct readings on screen.

This powerful 30dB attenuator will work reliably up to 6GHz and 2W input power.

Feature

  • Reliable V.S.W.R
  • Easy maintenance
  • Wide broadband frequency application
  • Directional 1 Watt rating
Specification
  • Frequency range: DC ~ 6.0 GHz
  • Impedance (Nominal): 50Ω
  • Power rating: 1 Watt (+30dBm)
  • Attenuation: 30 dB
  • Tolerance: +/- 1dB/max
  • V.S.W.R (Max): 1.20 : 1
  • Connector type: SMA male – female
  • Connector:  Brass / Gold plating
  • Body: Brass / Gold plating
