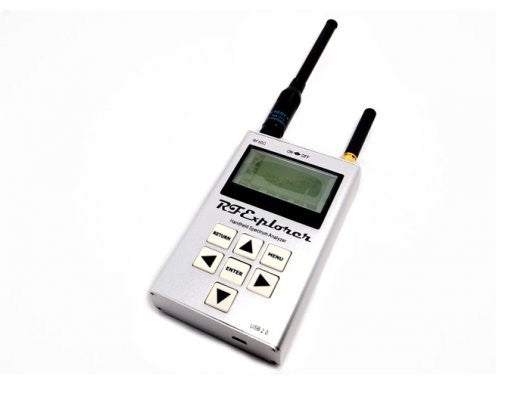

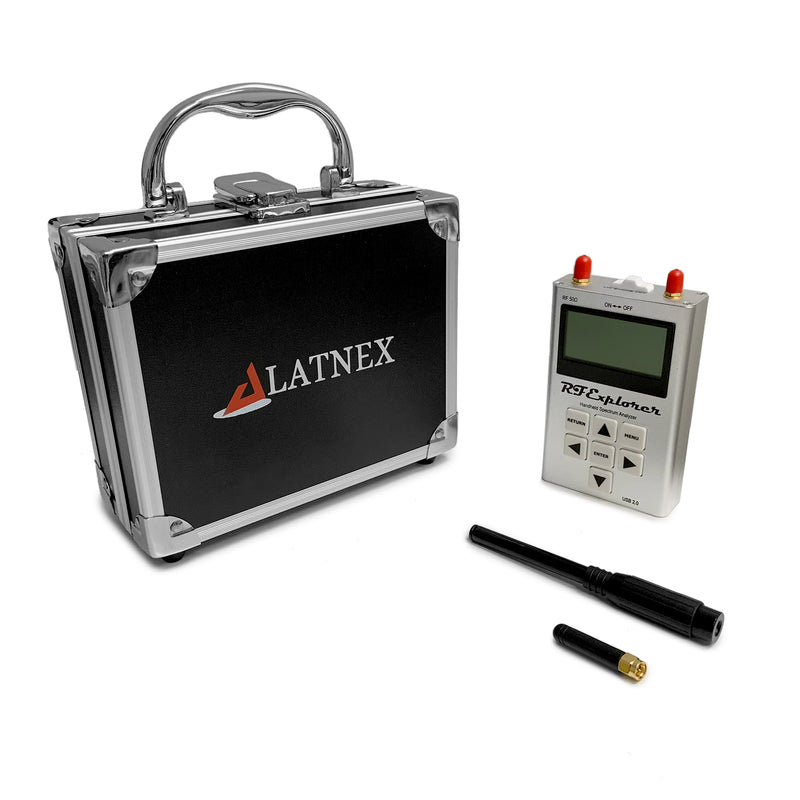

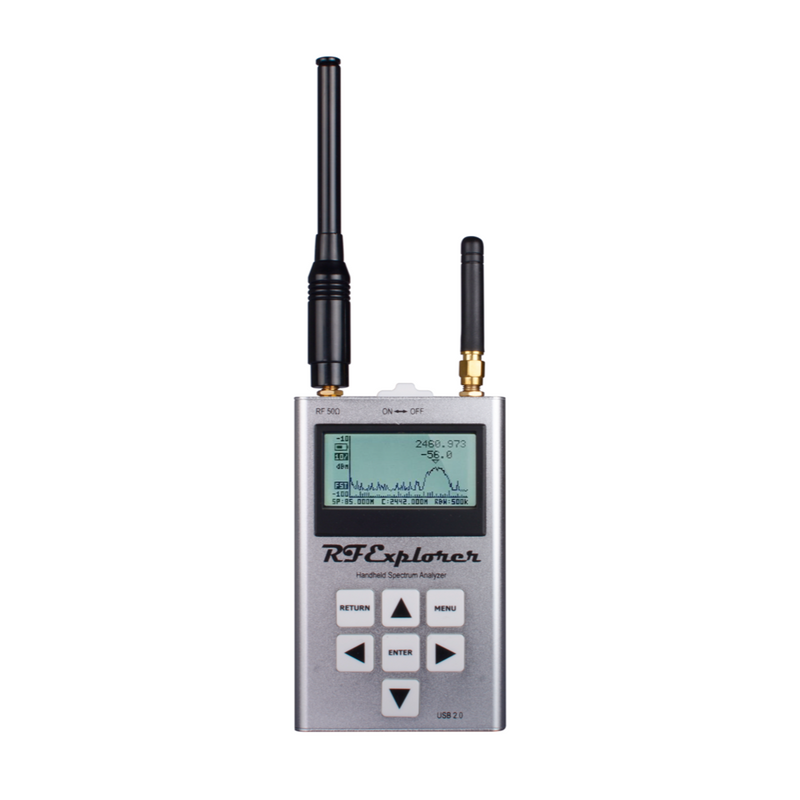

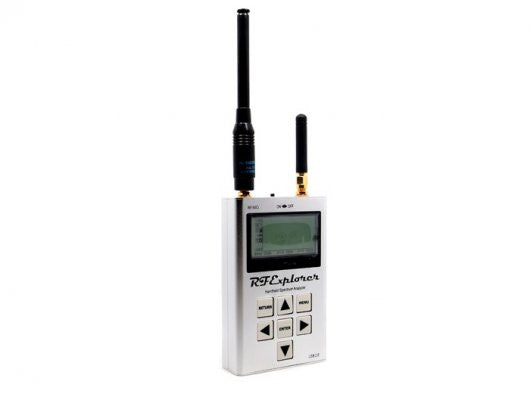

RF Explorer - ISM Combo with Aluminum Case

RF Explorer - ISM Combo

Name: RF Explorer - ISM Combo
Brand: EMR Shielding Solutions
SKU: TAM-1195
Price: 238.80 USD
Availability: InStock

$ 238.80 - $ 238.80

$ 238.80

$ 238.80 - $ 238.80

$ 238.80

Quantity

What our customers say

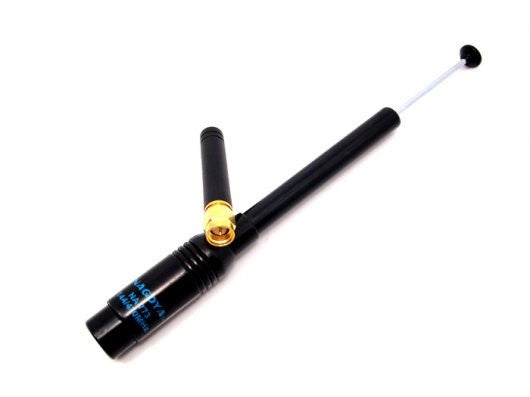

This model includes a WSUB1G baseline unit plus an RFEM2.4G Expansion Module conveniently assembled and tested. It comes with two SMA connectors and two antennas,a nice Nagoya NA-773 wideband telescopic antenna for Sub-GHz frequencies and a whip helical for 2.4GHz band.

Free returns on all eligible orders

You have 30 days to request a return. All custom and sale items are final sale. See return policy for more information.

Shipping Information

We offer free Standard and Expedited shipping on most orders over $50 USD (applies to Canada and USA only, exclusions may apply).

The EMR Guarantee

We stand behind every product we sell. If you have any issues with your order, our team will work with you to make it right. Whether you have product questions, need help with an order, or want guidance on choosing the right solution, you can count on us. Contact us anytime at info@emrss.com or +1 855 425 1657.

Feature

Pocket size and light weight

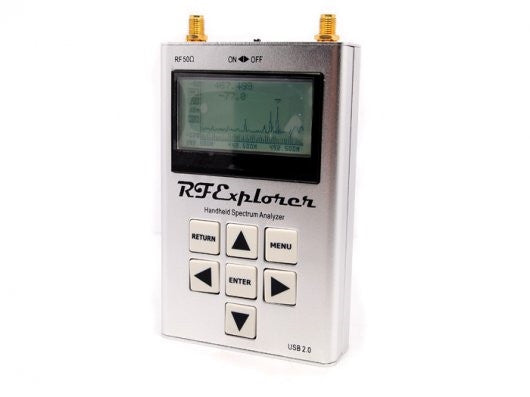

Solid aluminum metal case
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
Lifetime free firmware upgrades available, open to community requested features
High capacity Lipo for 16hs+ of continuous run, rechargeable by USB

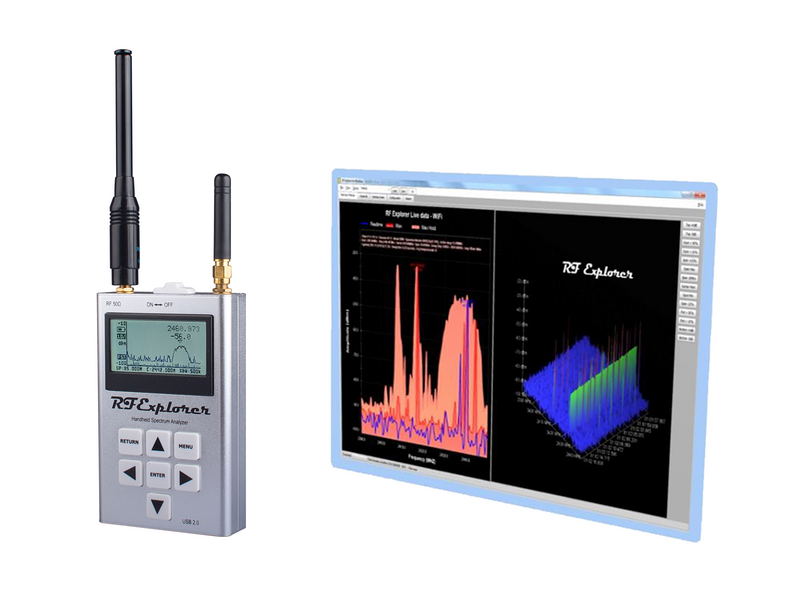

Windows PC client Open Source
Can be extended with internal Expansion Modules for additional band and functionality
Wide band coverage to all popular sub-1Ghz ISM bands and 2.4GHz band, including 315MHz, 433MHz, 868MHzand 915MHz, 2.4GHz WiFi, Zigbee, also including UHF TV, 70cm and 33cm HAM radio, GSM, etc. Any frequency from 240MHzto 960MHz and 2350MHz to 2550MHz is supported.

Important

Note this unit does not include RF Generator functionality for the Sub-GHz band, only Spectrum Analyzer functionality is available for the Sub-GHz band. The 2.4GHz band includes standard RF Generator.

Specification

Frequency band: 240 - 960 MHz and 2.35 – 2.55 GHz
Frequency span: 112KHz - 100MHz
Graphics LCD 128x64 pixels, great visibility outdoors
PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits
Backlight for great indoor visibility
2 standard SMA 50 ohms connector, one for Sub-GHz wideband Nagoya NA-773 telescopic antenna included and another one for 2.4GHz band with helical antenna included.
Amplitude resolution: 0.5dBm
Dynamic range: -115dBm to 0dBm
Absolute Max input power: +5dBm
Average noise level (typical): -110dBm
2.4GHz RF Generator amplitude: -30dBm to +1dBm
Frequency stability and accuracy (typical): +-10ppm
Amplitude stability and accuracy (typical): +-3dBm
Frequency resolution: 1Khz
Resolution bandwidth (RBW): automatic 2.6Khz to 600Khz
Weight: 185g
Size: 113x70x25 mm (4.44x2.75x0.98 in)
