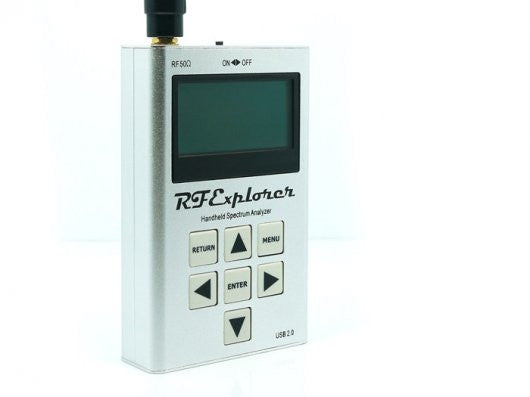

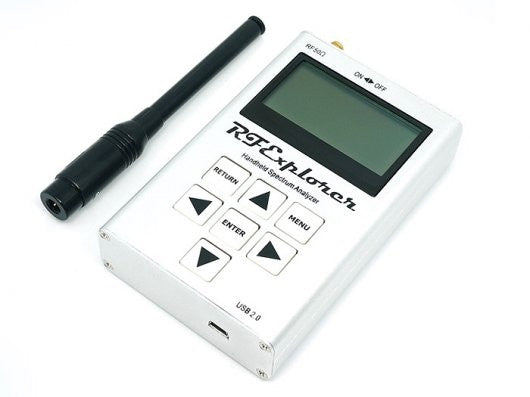

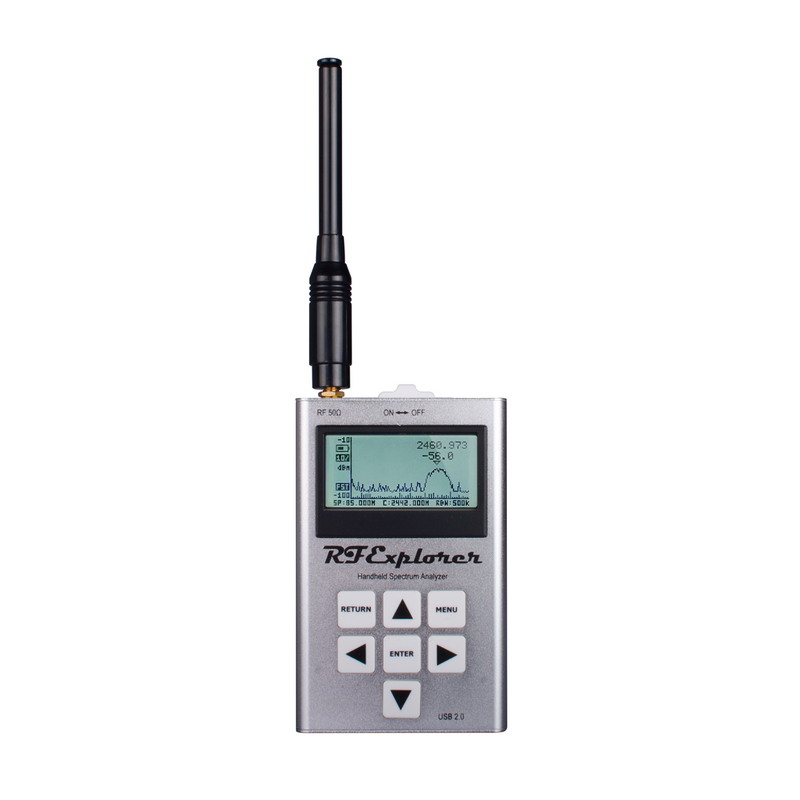

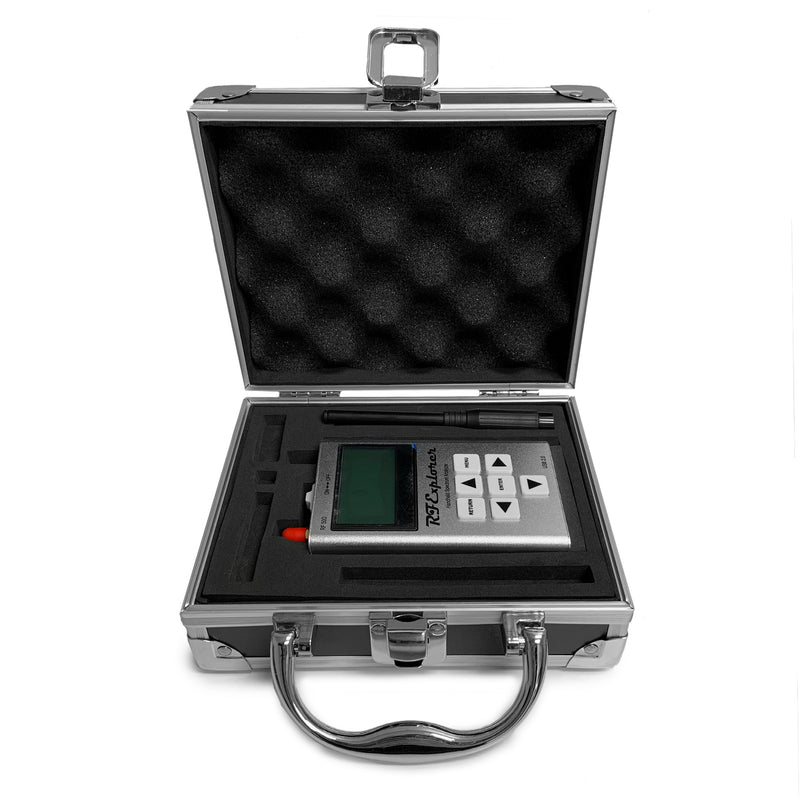

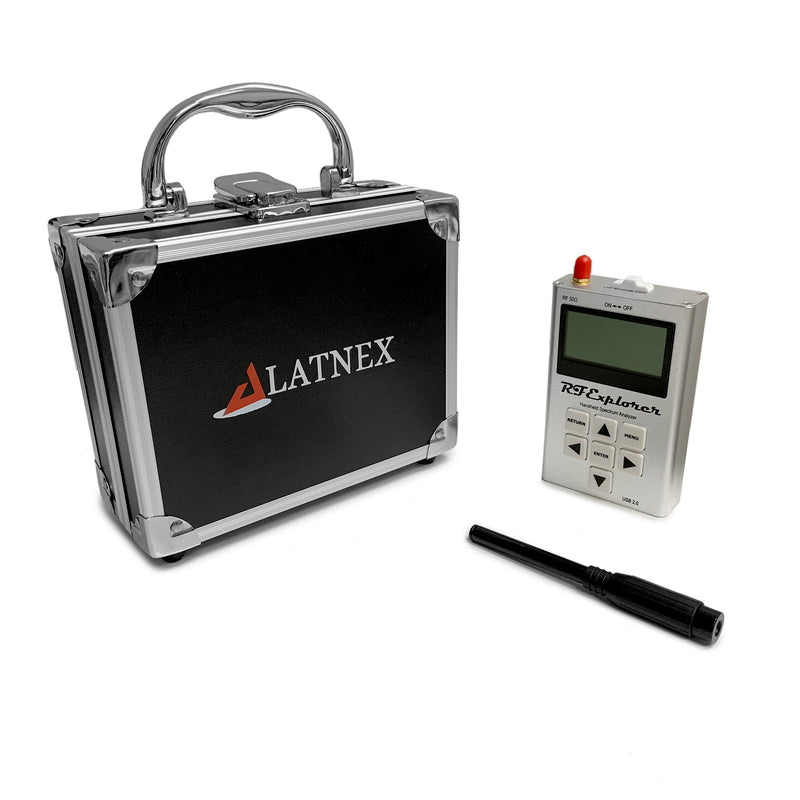

RF Explorer model WSUB1G with Aluminum Case

RF Explorer WSUB1G

Name: RF Explorer WSUB1G
Brand: EMR Shielding Solutions
SKU: TAM-1213
Price: 178.80 USD
Availability: InStock

$ 178.80 - $ 178.80

$ 178.80

$ 178.80 - $ 178.80

$ 178.80

Quantity

What our customers say

RF Explorer is a very affordable tool for work in all ISM popular frequency bands. It is based on a highly integrated frequency synthesizer which offers high performance, compact size, low consumption and low cost.

It has been designed to be used equally well outdoor and indoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.

Free returns on all eligible orders

You have 30 days to request a return. All custom and sale items are final sale. See return policy for more information.

Shipping Information

We offer free Standard and Expedited shipping on most orders over $50 USD (applies to Canada and USA only, exclusions may apply).

The EMR Guarantee

We stand behind every product we sell. If you have any issues with your order, our team will work with you to make it right. Whether you have product questions, need help with an order, or want guidance on choosing the right solution, you can count on us. Contact us anytime at info@emrss.com or +1 855 425 1657.

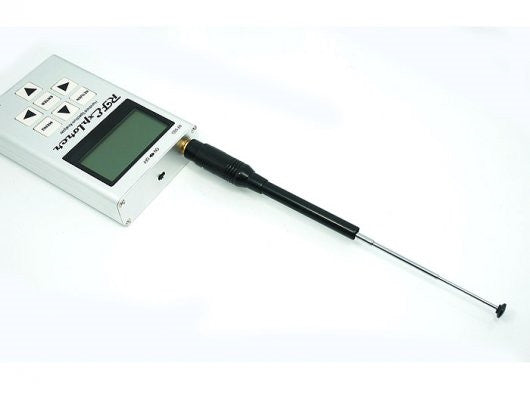

This model comes with a nice dual band telescopic 144/430MHz wideband telescopic antenna.

Feature

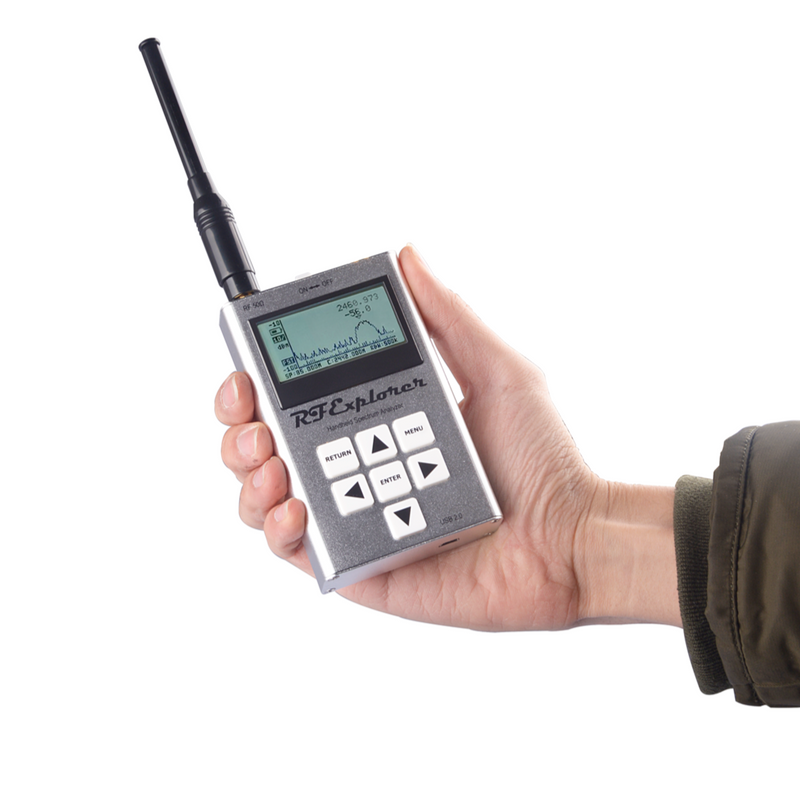

Pocket size and light weight
Solid aluminum metal case
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
Lifetime free firmware upgrades available, open to community requested features
High capacity Lipo for 16hs+ of continuous run, rechargeable by USB

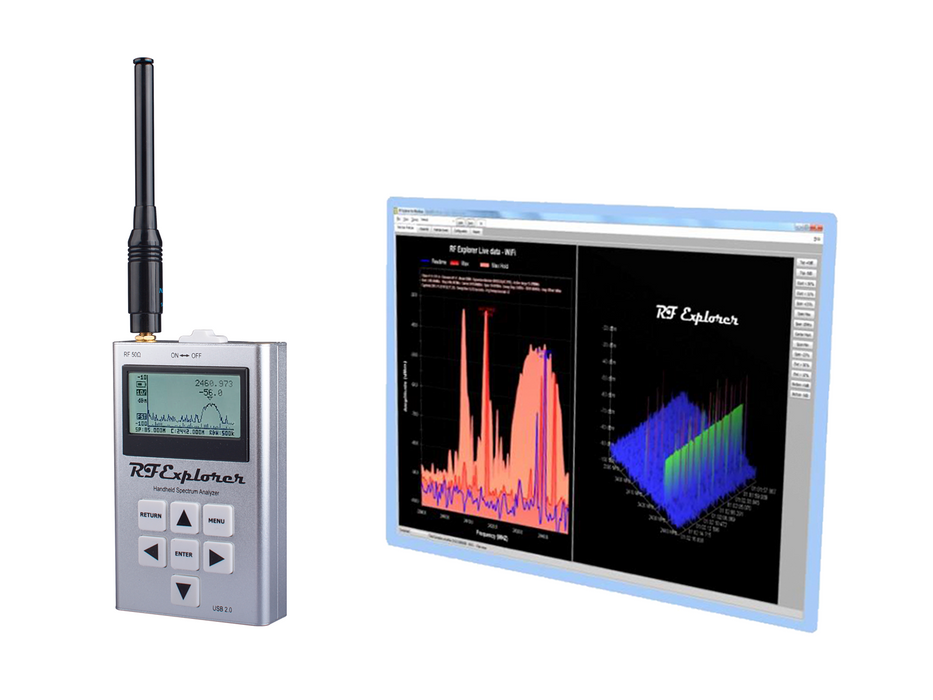

Windows PC client Open Source
Can be extended with internal Expansion Modules for additional band and functionality
Wide band coverage to all popular sub-1Ghz ISM bands, including 315MHz, 433MHz, 868MHzand 915MHz, also including UHF TV, 70cm and 33cm HAM radio, GSM, etc. Any frequency from 240MHzto 960MHzis covered.

Specification

Frequency band: 240 - 960 MHz
Frequency span: 112KHz - 100MHz
Graphics LCD 128x64 pixels, great visibility outdoors
PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits
Backlight for great indoor visibility

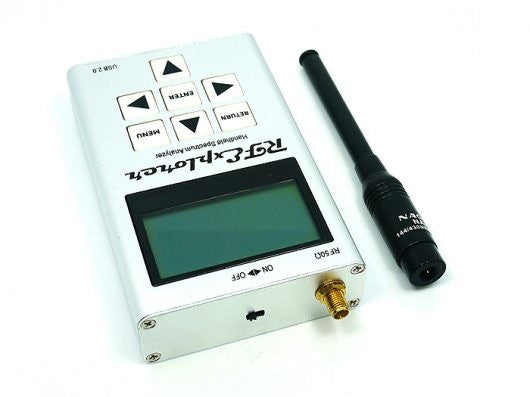

Standard SMA 50 ohms connector, wideband Nagoya NA-773 telescopic antenna included
Amplitude resolution: 0.5dBm
Dynamic range: -115dBm to 0dBm
Absolute Max input power: +5dBm
Average noise level (typical): -110dBm
Frequency stability and accuracy (typical): +-10ppm
Amplitude stability and accuracy (typical): +-3dBm
Frequency resolution: 1Khz
Resolution bandwidth (RBW): automatic 2.6Khz to 600Khz
Weight: 185g
Size: 113x70x25 mm
