RFEM6G PLUS Expansion
What our customers say

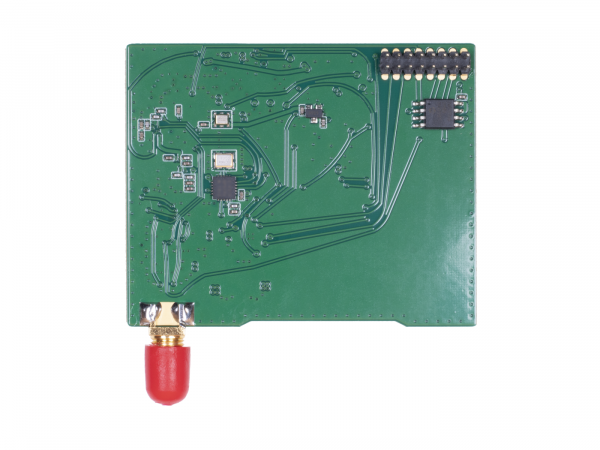

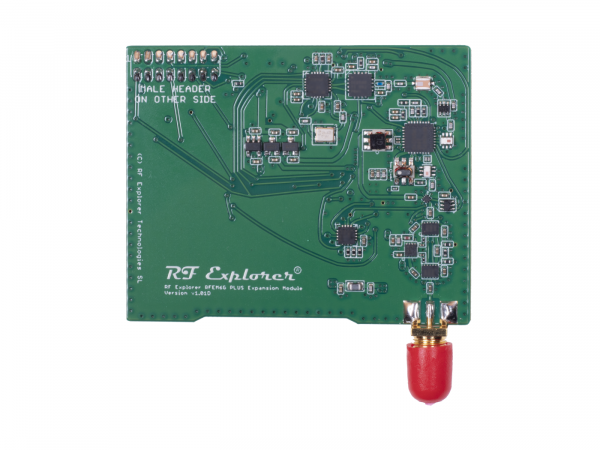

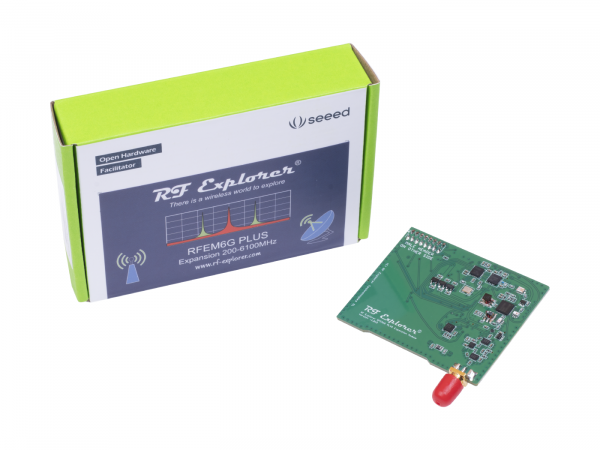

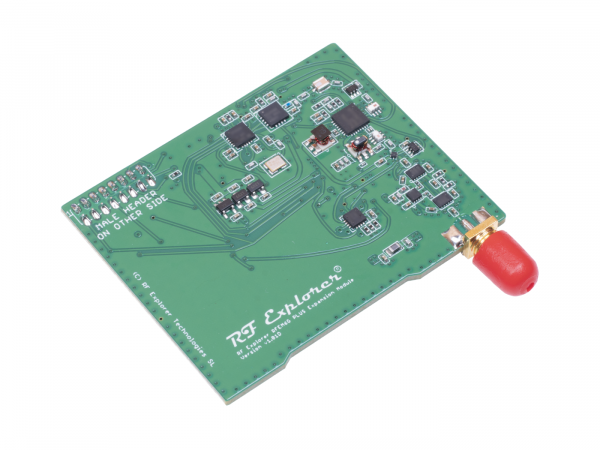

RF Explorer RFEM6G PLUS is an expansion module to convert the RF Explorer WSUB1G PLUS into a powerful 6G Combo PLUS Spectrum Analyzer, covering the full range starting at 50KHz up to 6.1GHz with no gaps or limitations.
Free returns on all eligible orders
You have 30 days to request a return. All custom and sale items are final sale. See return policy for more information.
Shipping Information
We offer free Standard and Expedited shipping on most orders over $50 USD (applies to Canada and USA only, exclusions may apply).
The EMR Guarantee
We stand behind every product we sell. If you have any issues with your order, our team will work with you to make it right. Whether you have product questions, need help with an order, or want guidance on choosing the right solution, you can count on us. Contact us anytime at info@emrss.com or +1 855 425 1657.
- Can be installed in WSUB1G PLUS and WSUB1G PLUS SLIM models
- Internal LNA amplifier and selectable attenuator for additional power range handling.
- Low-frequency support from 50KHz covering LF, MF, HF, VHF, and UHF
- High-frequency support covering all ranges up to 6.1GHz with no gaps.
- Ideal choice for all usable HAM bands.
- Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
- Multi-platform Windows/Linux/MacOS Open Source software and API libraries
Technical Data:
- Frequency band: Right connector: 240 – 6100MHz
- Frequency span in a single sweep: 2 – 960MHz
- Internal selectable LNA 25dB gain
- Internal selectable Attenuators 30dB and 60dB
- Wifi Analyzer for the 2.4GHz and 5GHz bands
- Standard SMA 50 ohms connectors
- Amplitude resolution: 0.5dBm
- Dynamic range: -125dBm to 10dBm
- Absolute Max input power: +30dBm
- Average noise level (typical LNA): -125dBm
- Frequency stability and accuracy (typical): +-1.0ppm
- Amplitude stability and accuracy (typical): +-3dBm
- Frequency resolution: 1Khz
- Resolution bandwidth (RBW): automatic 2.6Khz to 600Khz
- Support included for Windows, Linux and MacOS X
Part List:
- 1 x Expansion Board
- 1 x SMA nut
- 1 x SMA washer
