EMF Shielding Fabric NEW DAYLITE

Swiss-Shield® NEW-DAYLITE

by EMR Shielding Solutions
$ 20.49 - $ 20.49
$ 20.49
$ 20.49 - $ 20.49
$ 20.49

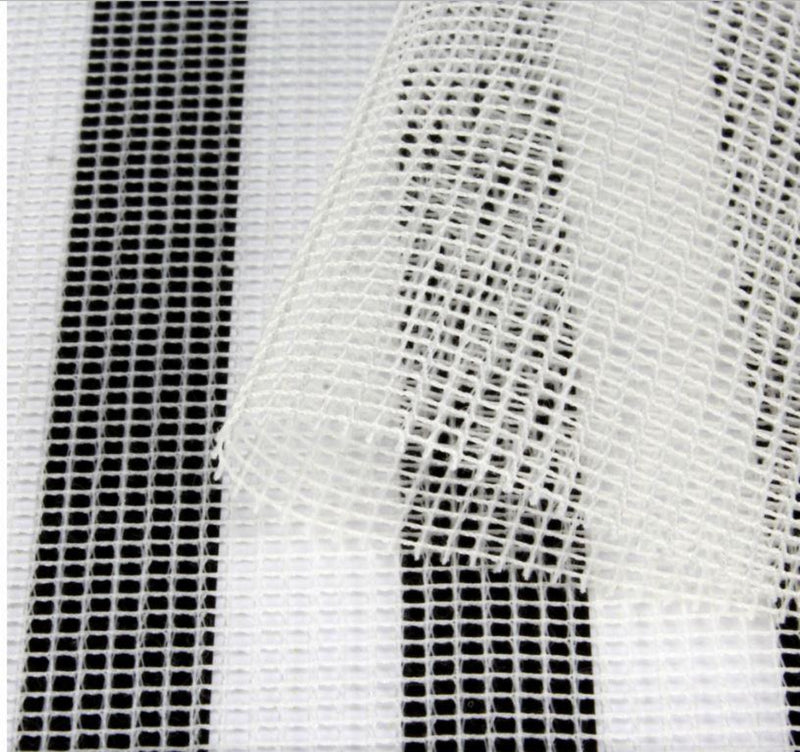

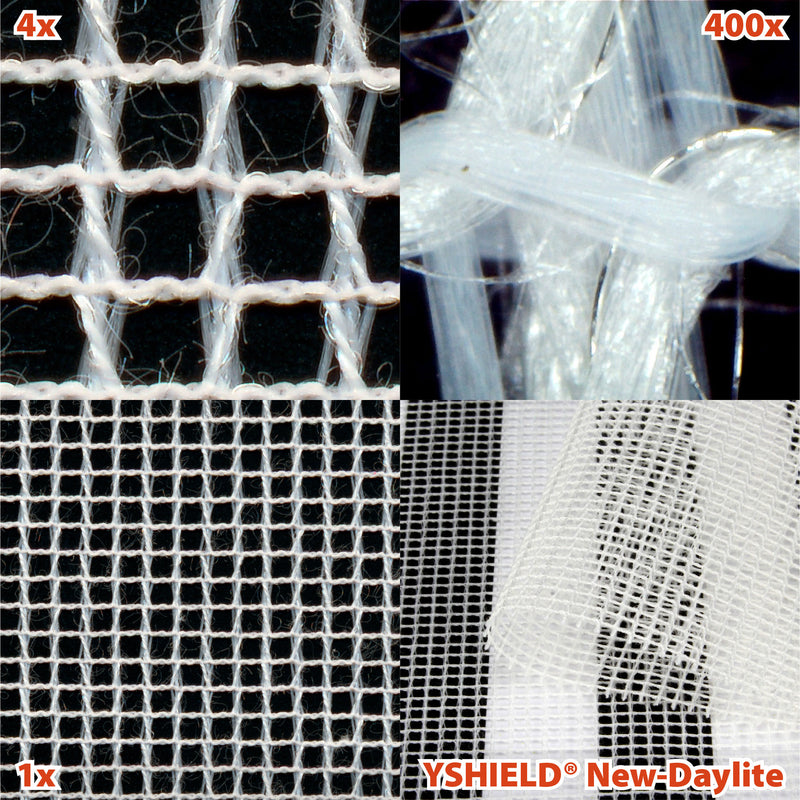

NEW-DAYLITE™ from Swiss-Shield® is a highly-transparent Trevira® fabric for the shielding of high-frequency electromagnetic fields (HF). Typical application as net curtain or to sew a bed canopy. Not electrically conductive.

  • Very high transparency
  • Crease resistant Trevira®-polyester
  • Excellent cost/performance ratio
  • Textile characteristics: Washable, easy to iron and process
  • Quality grade: Very high

*Note: To purchase a custom length of fabric, place an order for multiple quantities of the 1ft option. The amount ordered will be cut as a single piece unless specified otherwise.

Order quantity: This product is cut off according to your specifications, a return or revocation are not possible.
Screening attenuation: All stated attenuation values apply at 1 Ghz. Measurement to ASTM D4935-10 or IEEE Std 299-2006 or IEEEE Std 1128-1998 or ASTM A698/A698M-07. You find the test report above under "Report screening attenuation".
Grounding: Not electrically conductive. No shielding of electric fields (LF), these must be reduced by additional procedures. We recommend the shielding with NSF34, NCV95 or the decoupling with a demand switch.
Fabric care: Washing at gentle cycle 30°C | Ironing without steam at degree 1 | Drying at low temperature | No bleaching | No chemical dry-cleaning | For allergy sufferers: Every new fabric smells, wash before its first usage!
Application: Curtain, Window, Canopy
Field type: HF (High frequency electromagnetic fields)
Ecology: High
Color: White



Technical data

  • Width: 8.53 ft
  • Length: Available by the foot
  • Attenuation: 25 dB, two-layer 34 dB
  • Color: White
  • Raw materials: 78 % polyester (Trevira), 21 % copper, 1 % silver
  • Weight: 65 g/m².
  • Dimension stability: +/- 1 %
  • Report screening attenuation
