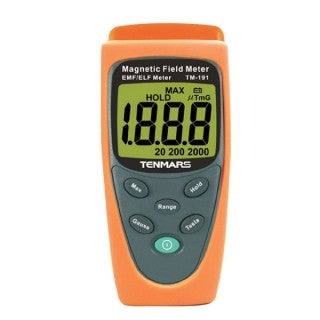

Magnetic Field Meter TM 191

This meter  is capable of measuring the electromagnetic field radiation intensity that is produced from electric transmission equipment, power line, air conditioner, refrigerator, computer monitor, video/audio device.



Display: 3-1/2 digits LCD, maximum reading 1999.

- Range: 200/2000 mG,20/200μT.

- Resolution: 0.1/1 mG or 0.01/0.1 μT.

- Frequency response: 30Hz to 300Hz.

- Sensor: Single Axis

- Accuracy:  ± (2.5%+6dgt) at 50Hz/60Hz.

- Over load: LCD display “OL”.

- Sample rate: 2.5 times per second.

- Battery: 9V NEDA 1604, IEC 6F22 or JIS 006P.

- Battery life: Approximate 100 hours.

- Operating temperature & humidity: 5?to 40?,below 80% RH.

- Storage temperature & humidity: -10? to 60?, below 70%.

- Weight: About 170g. (0.38 pounds)

- Dimensions: 130(L)*56(W)*38(H)mm. (5.11 x 2.20 x 1.50) inches
